Table 4 Front Panel Controls
Name Function
UID button The UID button helps locate a particular server
within a rack of servers. You may remotely activate
this function through various system utilities.
System Provides information about the system status.
health LED
Power The power button manually powers the server on
button and off.

SID

The SID consists of several LEDs that can be lit to show the health or failure of various server
components. The layout mimics the physical placement of components as viewed from the top of
the server.

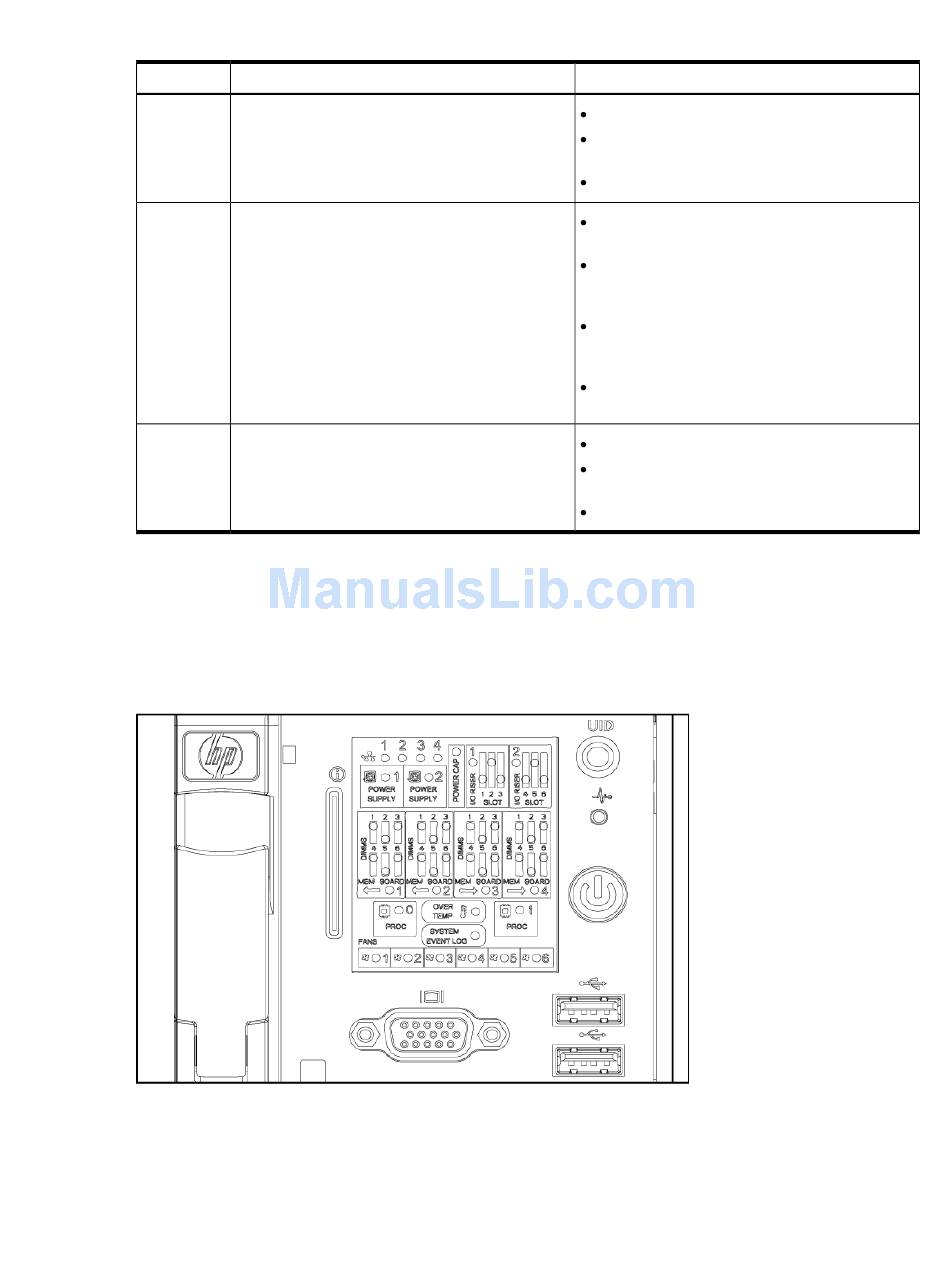

Figure 7 System Insight Display LEDs
Status
Blue = Identification
Flashing blue = Remote iLO session or a
firmware flash update is in progress
Off = Off
Green = Health good on all internal FRUs and
system firmware has passed "BOOT_START"
Flashing Amber = A FRU or subsystem has
degraded or failed (system is on or in standby
mode).
Flashing Red = A fatal fault has been detected
and logged. View the SID, other LEDs, and the
logs for information.
Off = Health good on all internal FRUs and
system off
Green = System on
Amber = System is powered off, but standby
power is on
Off = System power and standby power is off
