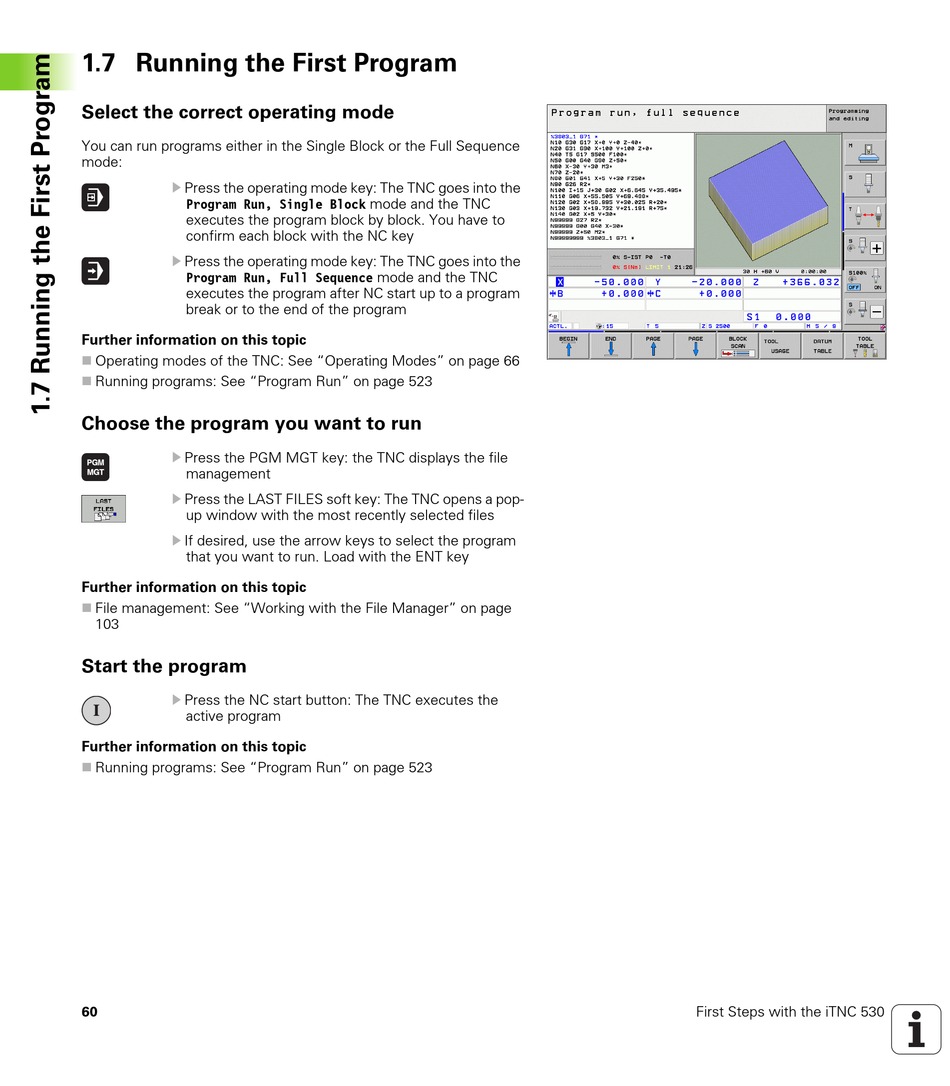

1.7 Running the First Program

Select the correct operating mode
You can run programs either in the Single Block or the Full Sequence
mode:
U Press the operating mode key: The TNC goes into the
Program Run, Single Block mode and the TNC
executes the program block by block. You have to
confirm each block with the NC key
U Press the operating mode key: The TNC goes into the
Program Run, Full Sequence mode and the TNC
executes the program after NC start up to a program
break or to the end of the program
Further information on this topic
Operating modes of the TNC: See "Operating Modes" on page 66
Running programs: See "Program Run" on page 523

Choose the program you want to run

U Press the PGM MGT key: the TNC displays the file
management
U
Press the LAST FILES soft key: The TNC opens a pop-
up window with the most recently selected files
U If desired, use the arrow keys to select the program
that you want to run. Load with the ENT key
Further information on this topic
File management: See "Working with the File Manager" on page
103

Start the program

U Press the NC start button: The TNC executes the
active program
Further information on this topic
Running programs: See "Program Run" on page 523
60 First Steps with the iTNC 530
