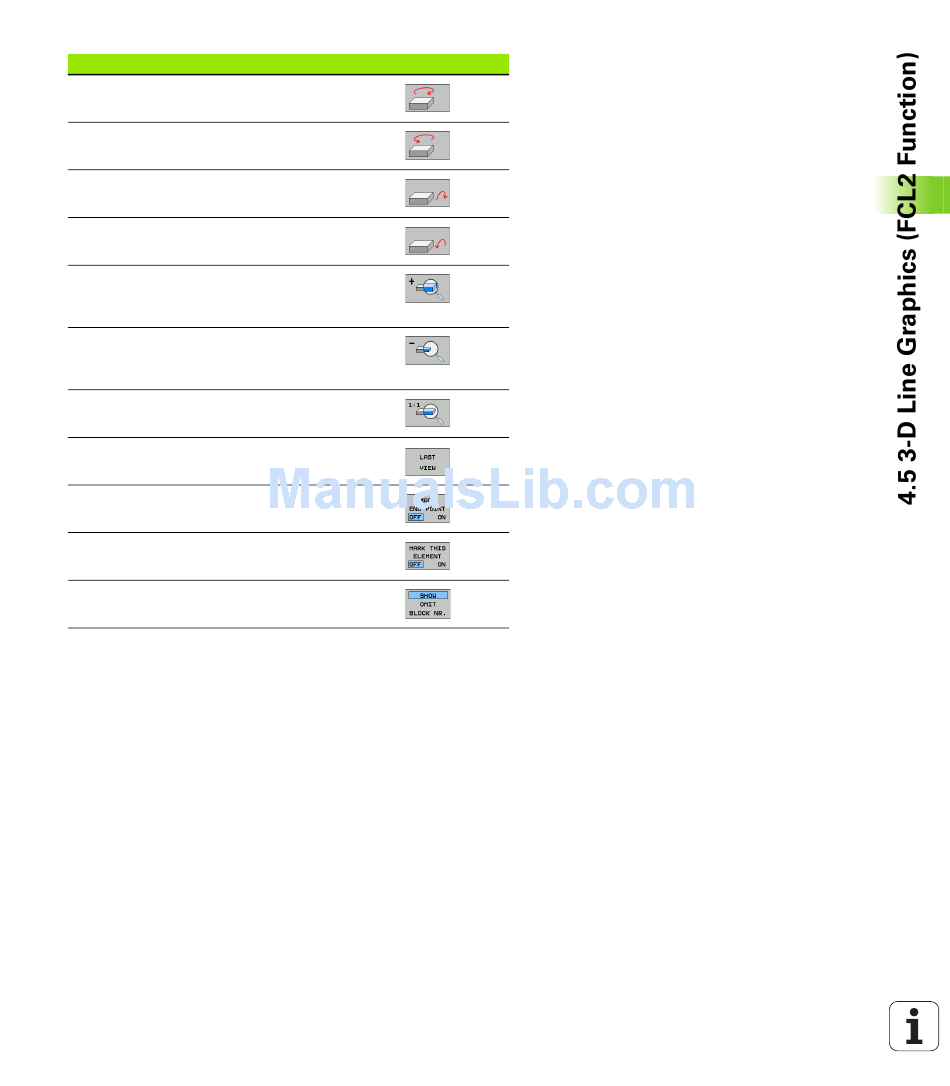

Function
Soft key
Rotate workpiece clockwise
Rotate workpiece counterclockwise
Tilt workpiece backward
Tilt workpiece forward
Magnify the graphic stepwise. If the view is
magnified, the TNC shows the letter Z in the
footer of the graphic window.
Reduce the graphic stepwise. If the view is
reduced, the TNC shows the letter Z in the footer
of the graphic window.
Show workpiece at original size
Show workpiece in the last active view
Show/hide programmed end points with a dot on
the line
Do or do not highlight the selected NC block of
the 3-D line graphics in the left window
Do or do not show block numbers
HEIDENHAIN iTNC 530
139
