Cursor position during detail magnification
During detail magnification, the TNC displays the coordinates of the
axis that is currently being isolated. The coordinates describe the area
determined for magnification. To the left of the slash is the smallest
coordinate of the detail (MIN point), to the right is the largest (MAX
point).
If a graphic display is magnified, this is indicated with MAGN at the lower
right of the graphics window.
If the workpiece blank cannot be further enlarged or reduced, the TNC
displays an error message in the graphics window. To clear the error
message, reduce or enlarge the workpiece blank.

Repeating graphic simulation

A part program can be graphically simulated as often as desired, either
with the complete workpiece or with a detail of it.

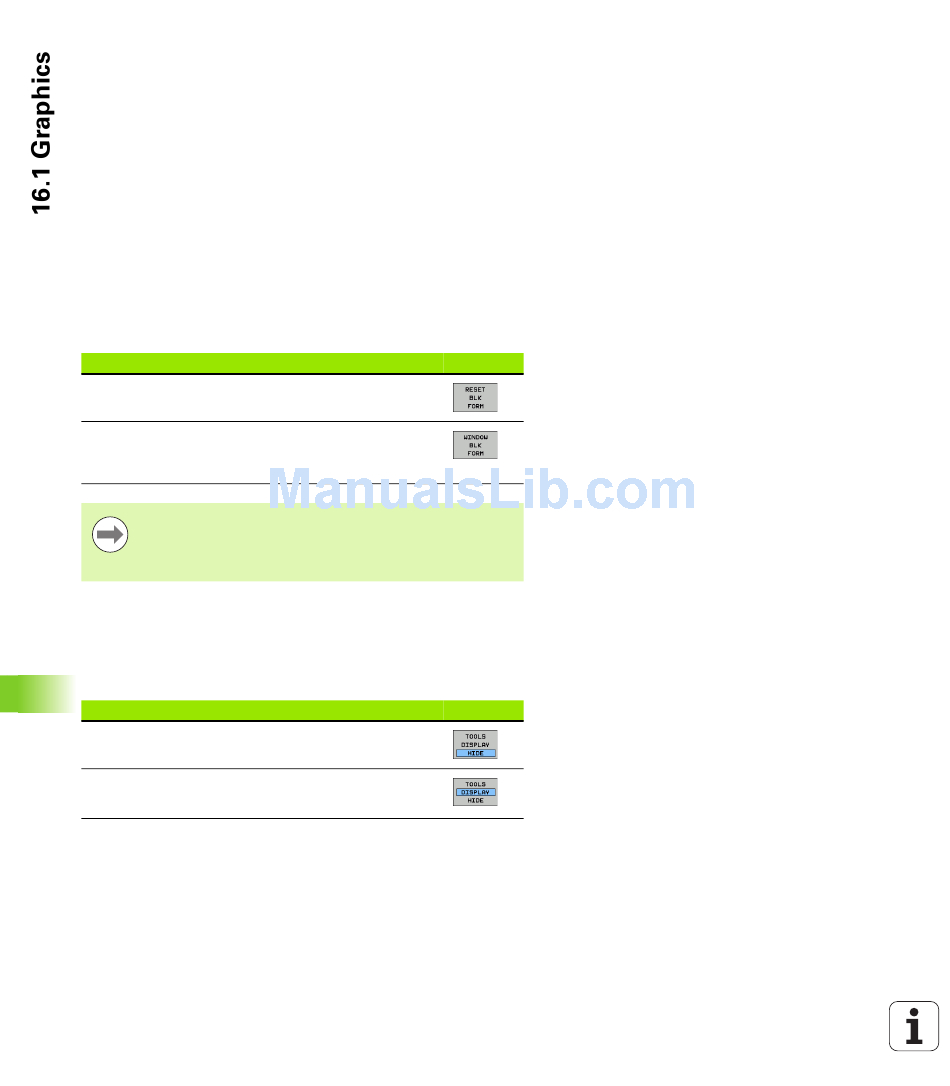

Function
Restore workpiece blank to the detail magnification in
which it was last shown.
Reset detail magnification so that the machined
workpiece or workpiece blank is displayed as it was
programmed with BLK FORM.
With the WINDOW BLK FORM soft key, you return the
displayed workpiece blank to its originally programmed
dimensions, even after isolating a detail without
TRANSFER DETAIL.

Displaying the tool

You can display the tool during simulation in the plan view and in the
projection in 3 planes. The TNC depicts the tool in the diameter
defined in the tool table.
Function
Do not display the tool during simulation
Display the tool during simulation
514
Soft key
Soft key
Test Run and Program Run
