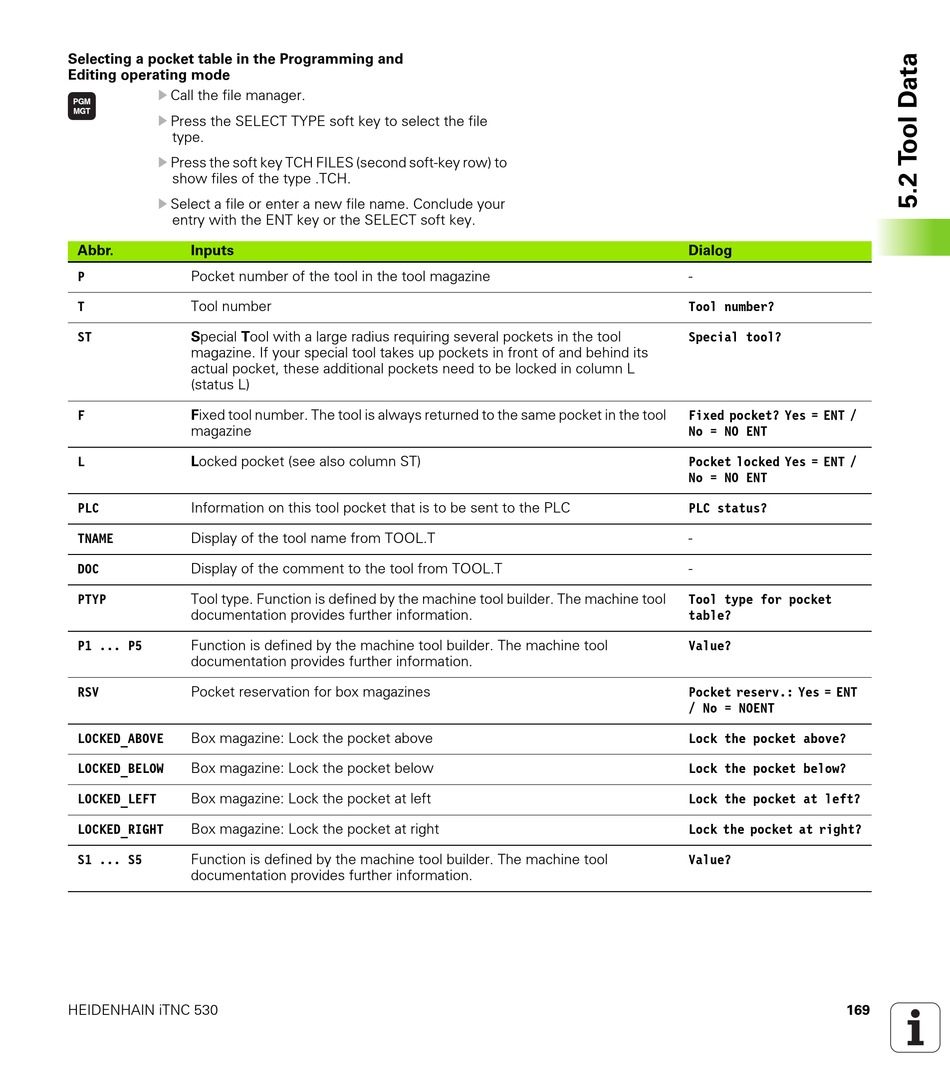

Selecting a pocket table in the Programming and
Editing operating mode
U Call the file manager.
U Press the SELECT TYPE soft key to select the file
type.
U Press the soft key TCH FILES (second soft-key row) to
show files of the type .TCH.
U Select a file or enter a new file name. Conclude your
entry with the ENT key or the SELECT soft key.
Abbr. Inputs
P Pocket number of the tool in the tool magazine
T Tool number
Special Tool with a large radius requiring several pockets in the tool
ST
magazine. If your special tool takes up pockets in front of and behind its
actual pocket, these additional pockets need to be locked in column L
(status L)
F Fixed tool number. The tool is always returned to the same pocket in the tool
magazine
L Locked pocket (see also column ST)
PLC Information on this tool pocket that is to be sent to the PLC
TNAME Display of the tool name from TOOL.T
DOC Display of the comment to the tool from TOOL.T
PTYP Tool type. Function is defined by the machine tool builder. The machine tool
documentation provides further information.
P1 ... P5 Function is defined by the machine tool builder. The machine tool
documentation provides further information.
RSV Pocket reservation for box magazines
LOCKED_ABOVE Box magazine: Lock the pocket above
Box magazine: Lock the pocket below
LOCKED_BELOW
LOCKED_LEFT Box magazine: Lock the pocket at left
LOCKED_RIGHT Box magazine: Lock the pocket at right
Function is defined by the machine tool builder. The machine tool
S1 ... S5
documentation provides further information.
HEIDENHAIN iTNC 530
Dialog
-
Tool number?
Special tool?
Fixed pocket? Yes = ENT /
No = NO ENT
Pocket locked Yes = ENT /
No = NO ENT
PLC status?
-
-
Tool type for pocket
table?
Value?
Pocket reserv.: Yes = ENT
/ No = NOENT
Lock the pocket above?
Lock the pocket below?
Lock the pocket at left?
Lock the pocket at right?
Value?
