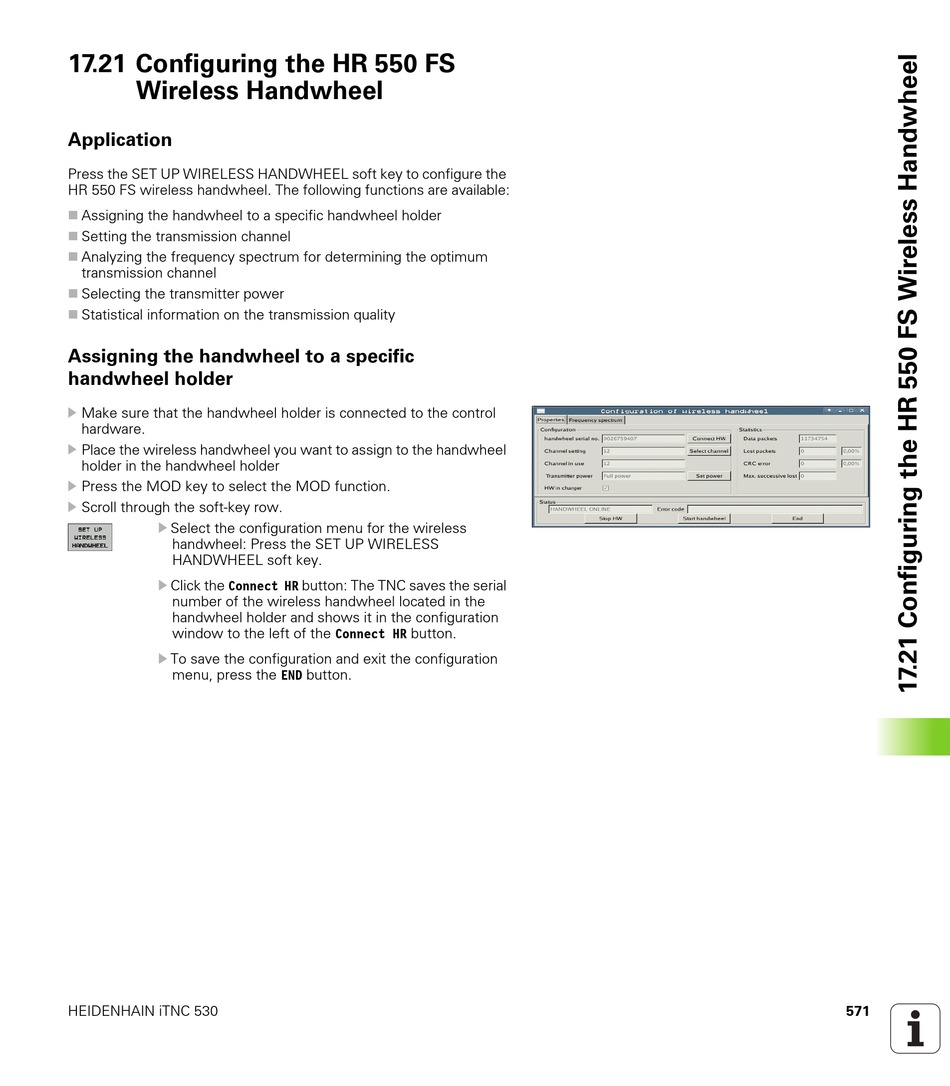

17.21 Configuring the HR 550 FS
Wireless Handwheel
Application
Press the SET UP WIRELESS HANDWHEEL soft key to configure the
HR 550 FS wireless handwheel. The following functions are available:
Assigning the handwheel to a specific handwheel holder
Setting the transmission channel
Analyzing the frequency spectrum for determining the optimum
transmission channel
Selecting the transmitter power
Statistical information on the transmission quality
Assigning the handwheel to a specific
handwheel holder
U
Make sure that the handwheel holder is connected to the control
hardware.
U
Place the wireless handwheel you want to assign to the handwheel
holder in the handwheel holder
U
Press the MOD key to select the MOD function.
U
Scroll through the soft-key row.
U
Select the configuration menu for the wireless
handwheel: Press the SET UP WIRELESS
HANDWHEEL soft key.
U
Click the Connect HR button: The TNC saves the serial
number of the wireless handwheel located in the
handwheel holder and shows it in the configuration
window to the left of the Connect HR button.
U
To save the configuration and exit the configuration
menu, press the END button.
HEIDENHAIN iTNC 530
