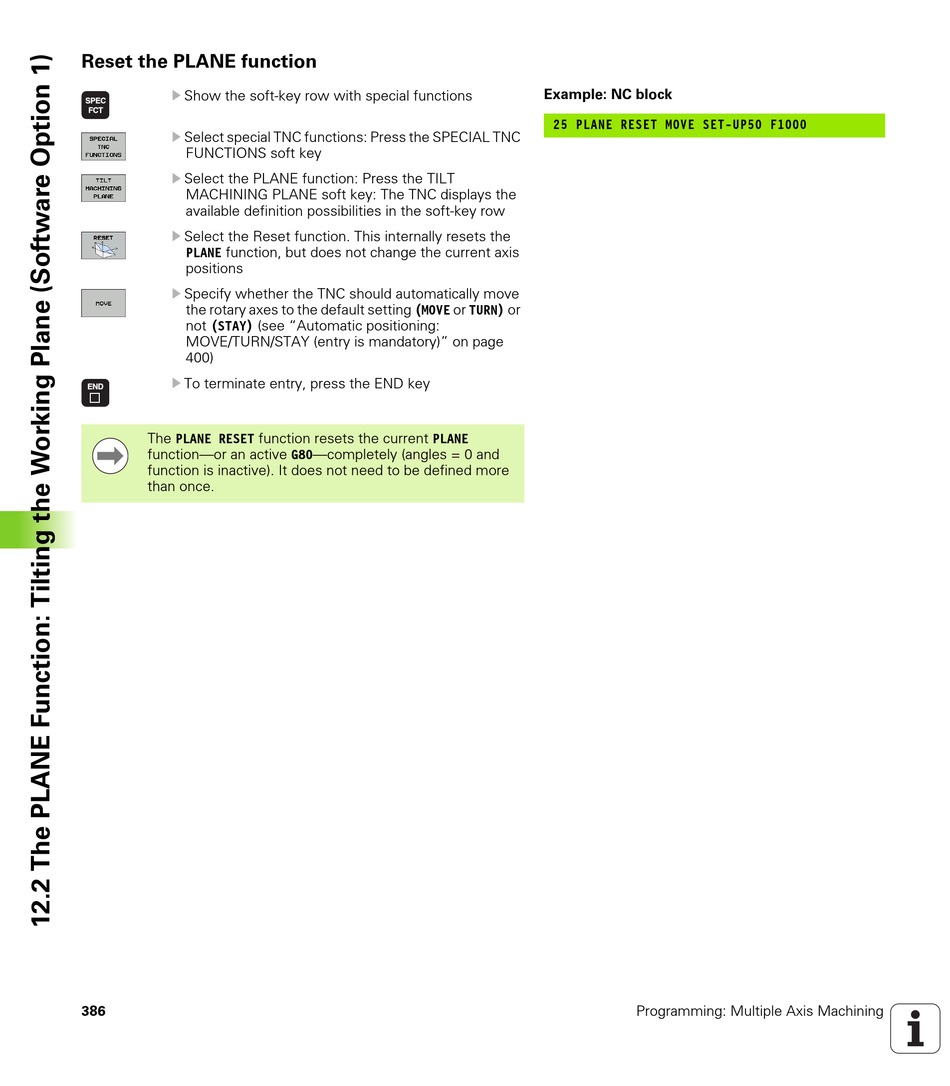

Reset the PLANE function
U
Show the soft-key row with special functions
U
Select special TNC functions: Press the SPECIAL TNC
FUNCTIONS soft key
U
Select the PLANE function: Press the TILT
MACHINING PLANE soft key: The TNC displays the
available definition possibilities in the soft-key row
U
Select the Reset function. This internally resets the
PLANE function, but does not change the current axis
positions
U
Specify whether the TNC should automatically move
the rotary axes to the default setting (MOVE or TURN) or
not (STAY) (see "Automatic positioning:
MOVE/TURN/STAY (entry is mandatory)" on page
400)
U
To terminate entry, press the END key
The PLANE RESET function resets the current PLANE
function—or an active G80—completely (angles = 0 and
function is inactive). It does not need to be defined more
than once.
386
Example: NC block
25 PLANE RESET MOVE SET-UP50 F1000
Programming: Multiple Axis Machining
