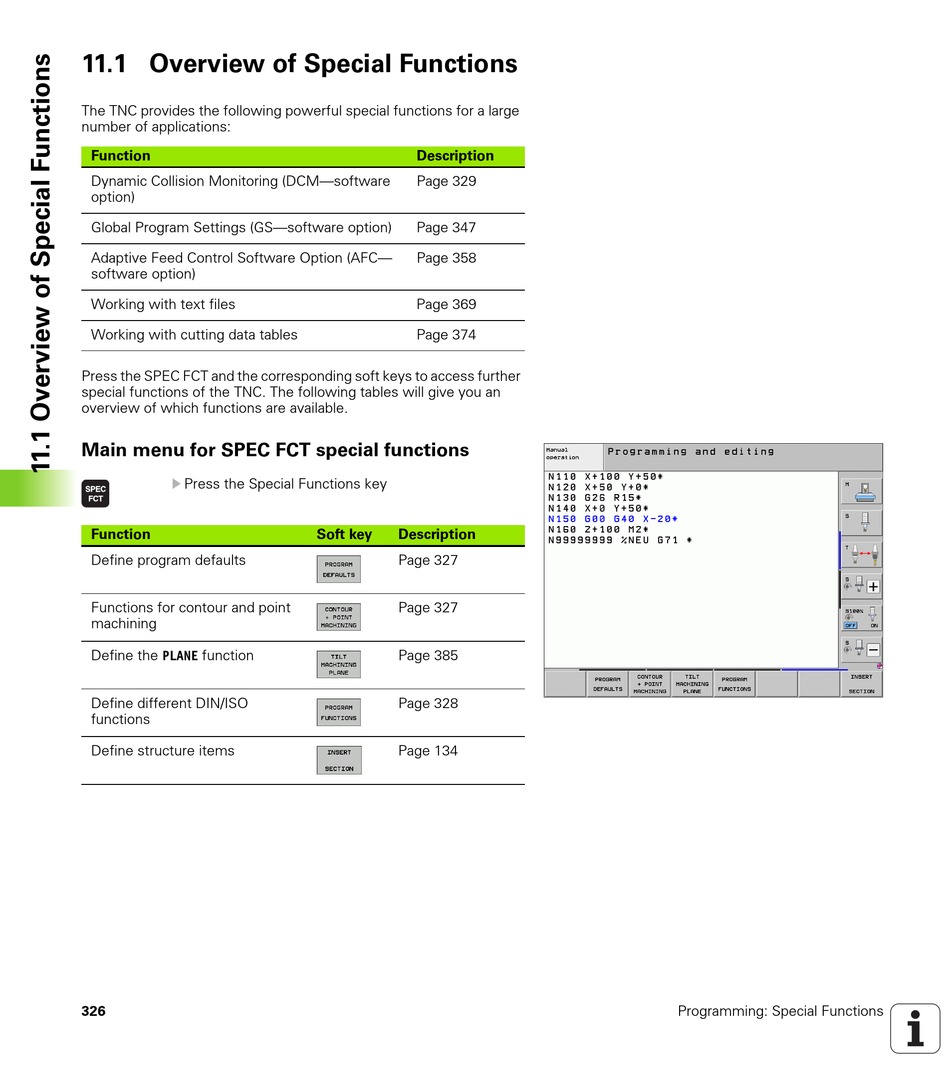

11.1 Overview of Special Functions

The TNC provides the following powerful special functions for a large
number of applications:
Function
Dynamic Collision Monitoring (DCM—software
option)
Global Program Settings (GS—software option)
Adaptive Feed Control Software Option (AFC—
software option)
Working with text files
Working with cutting data tables
Press the SPEC FCT and the corresponding soft keys to access further
special functions of the TNC. The following tables will give you an
overview of which functions are available.

Main menu for SPEC FCT special functions

U Press the Special Functions key
Function
Define program defaults
Functions for contour and point
machining
Define the PLANE function
Define different DIN/ISO
functions
Define structure items
326
Description
Page 329
Page 347
Page 358
Page 369
Page 374
Soft key Description
Page 327
Page 327
Page 385
Page 328
Page 134
Programming: Special Functions
