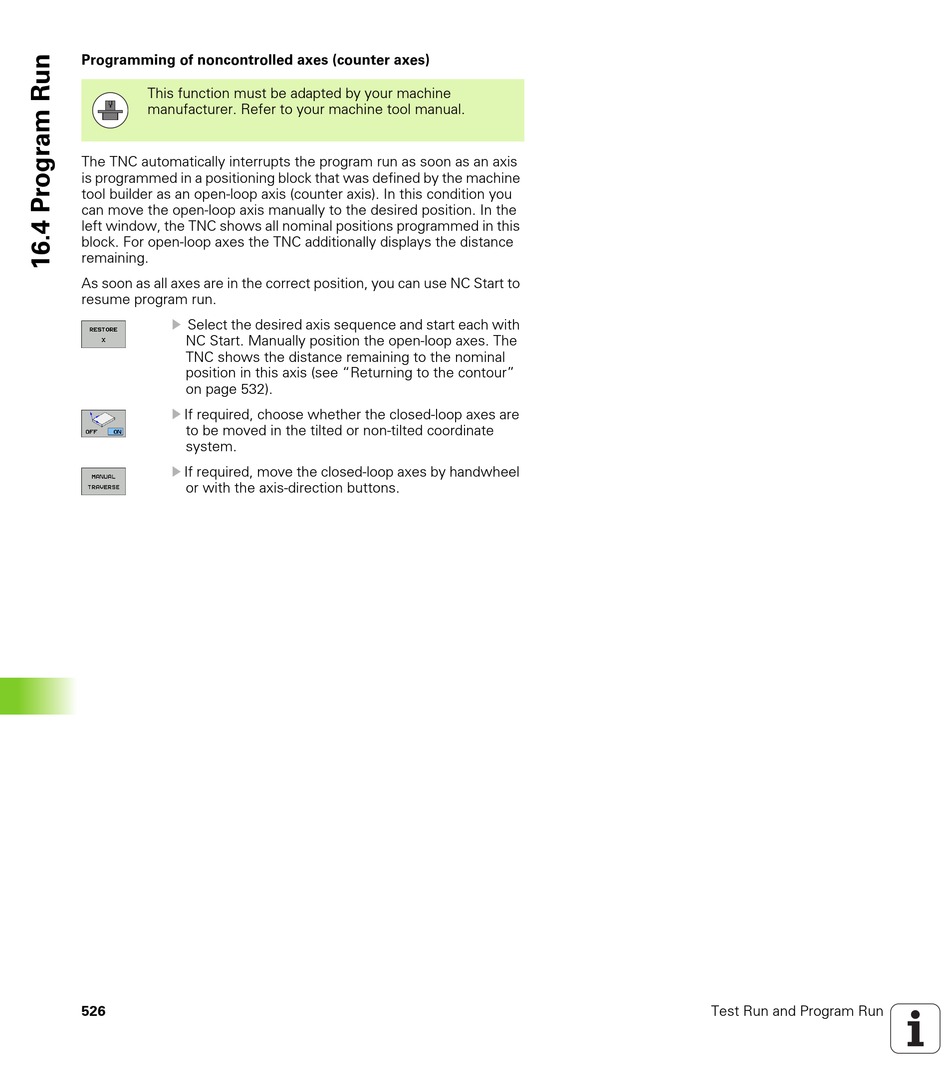

Programming of noncontrolled axes (counter axes)
This function must be adapted by your machine
manufacturer. Refer to your machine tool manual.
The TNC automatically interrupts the program run as soon as an axis
is programmed in a positioning block that was defined by the machine
tool builder as an open-loop axis (counter axis). In this condition you
can move the open-loop axis manually to the desired position. In the
left window, the TNC shows all nominal positions programmed in this
block. For open-loop axes the TNC additionally displays the distance
remaining.
As soon as all axes are in the correct position, you can use NC Start to
resume program run.
U
Select the desired axis sequence and start each with
NC Start. Manually position the open-loop axes. The
TNC shows the distance remaining to the nominal
position in this axis (see "Returning to the contour"
on page 532).
U
If required, choose whether the closed-loop axes are
to be moved in the tilted or non-tilted coordinate
system.
U
If required, move the closed-loop axes by handwheel
or with the axis-direction buttons.
526
Test Run and Program Run
