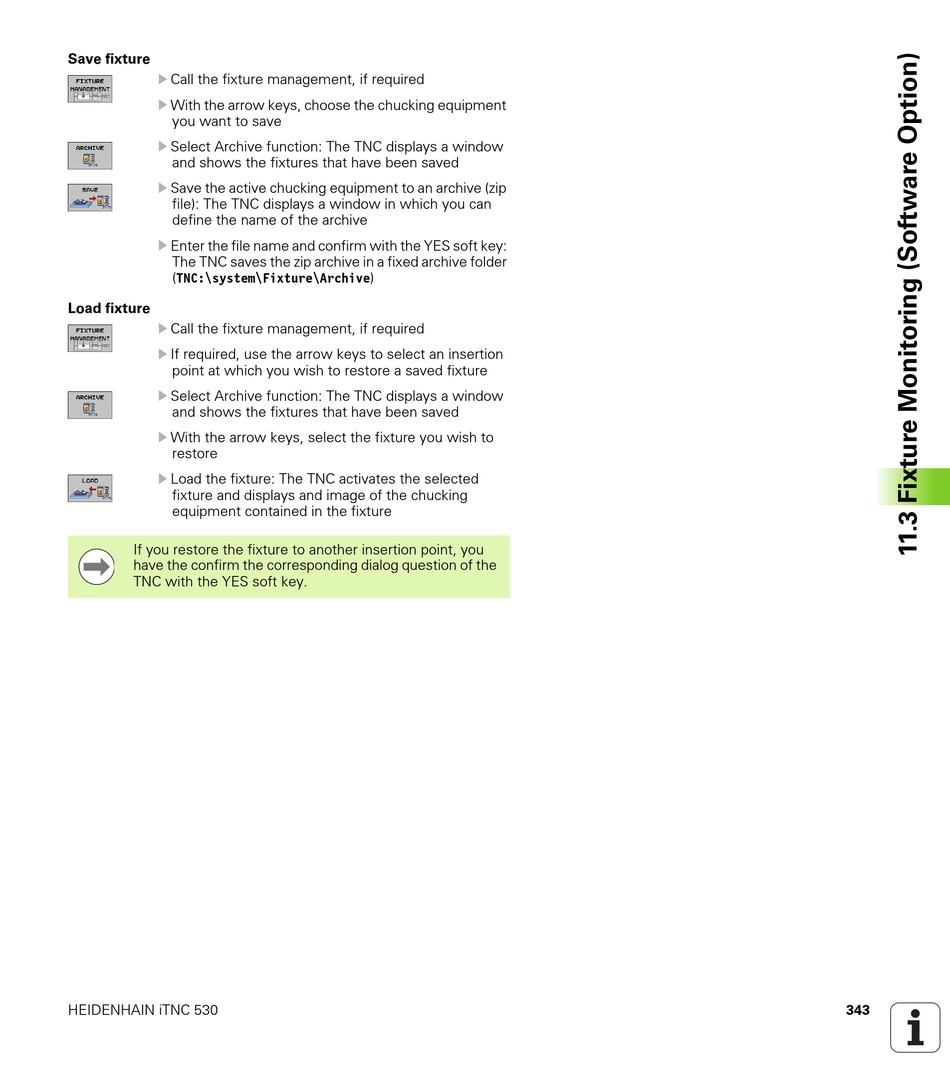

Save fixture
U
Call the fixture management, if required
U
With the arrow keys, choose the chucking equipment
you want to save
U
Select Archive function: The TNC displays a window
and shows the fixtures that have been saved
U
Save the active chucking equipment to an archive (zip
file): The TNC displays a window in which you can
define the name of the archive
U
Enter the file name and confirm with the YES soft key:
The TNC saves the zip archive in a fixed archive folder
(TNC:\system\Fixture\Archive)
Load fixture
U
Call the fixture management, if required
U
If required, use the arrow keys to select an insertion
point at which you wish to restore a saved fixture
U
Select Archive function: The TNC displays a window
and shows the fixtures that have been saved
U
With the arrow keys, select the fixture you wish to
restore
U
Load the fixture: The TNC activates the selected
fixture and displays and image of the chucking
equipment contained in the fixture
If you restore the fixture to another insertion point, you
have the confirm the corresponding dialog question of the
TNC with the YES soft key.
HEIDENHAIN iTNC 530
343
