Step 4: Power on the router and check that the SYS LED is blinking in green.

Removing/Installing MSCA

Removing MSCA

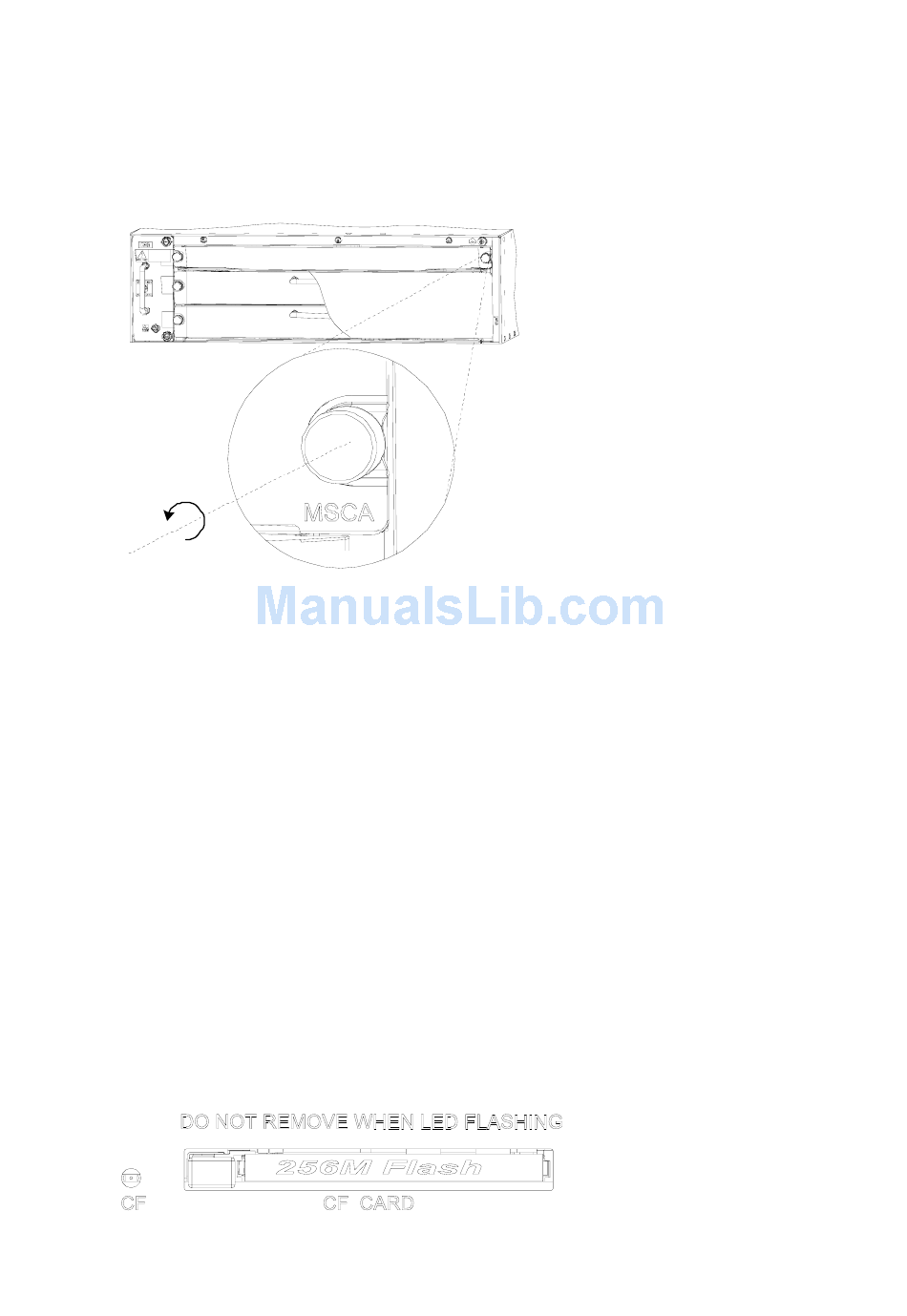

Figure 6-8 Remove an MSCA
Step 1: Turn off the power switch (or switches if two PSUs are installed).
Step 2: Loosen the captive screws at both sides of the MSCA.
Step 3: Pull the handles at both side of the MSCA outward and gently pull the card out along the guides
until it is completely separated from the chassis.

Installing MSCA

Step 1: Turn off the power switch (or switches if two PSUs are installed).
Step 2: Align the edges of the MSCA with the guides in the MSCA slot and push the card into the router.
Push the ejector levers at both side of the MSCA inward until they form the smallest degree with the
MPUF panel.
Step 3: Fix the MSCA on the router with captive screws.

Installing/Removing CF Card

CF Card Structure

Figure 6-9 Front of CF card
6-6
