Replacing Memory Bar - 3Com MSR 50-40 ROUTER. Installation Manual

Do not insert or remove the card when the router is booting or the LED is blinking to avoid hardware
damage.

Replacing Memory Bar

This section describes how to replace a memory bar. See the following flow.

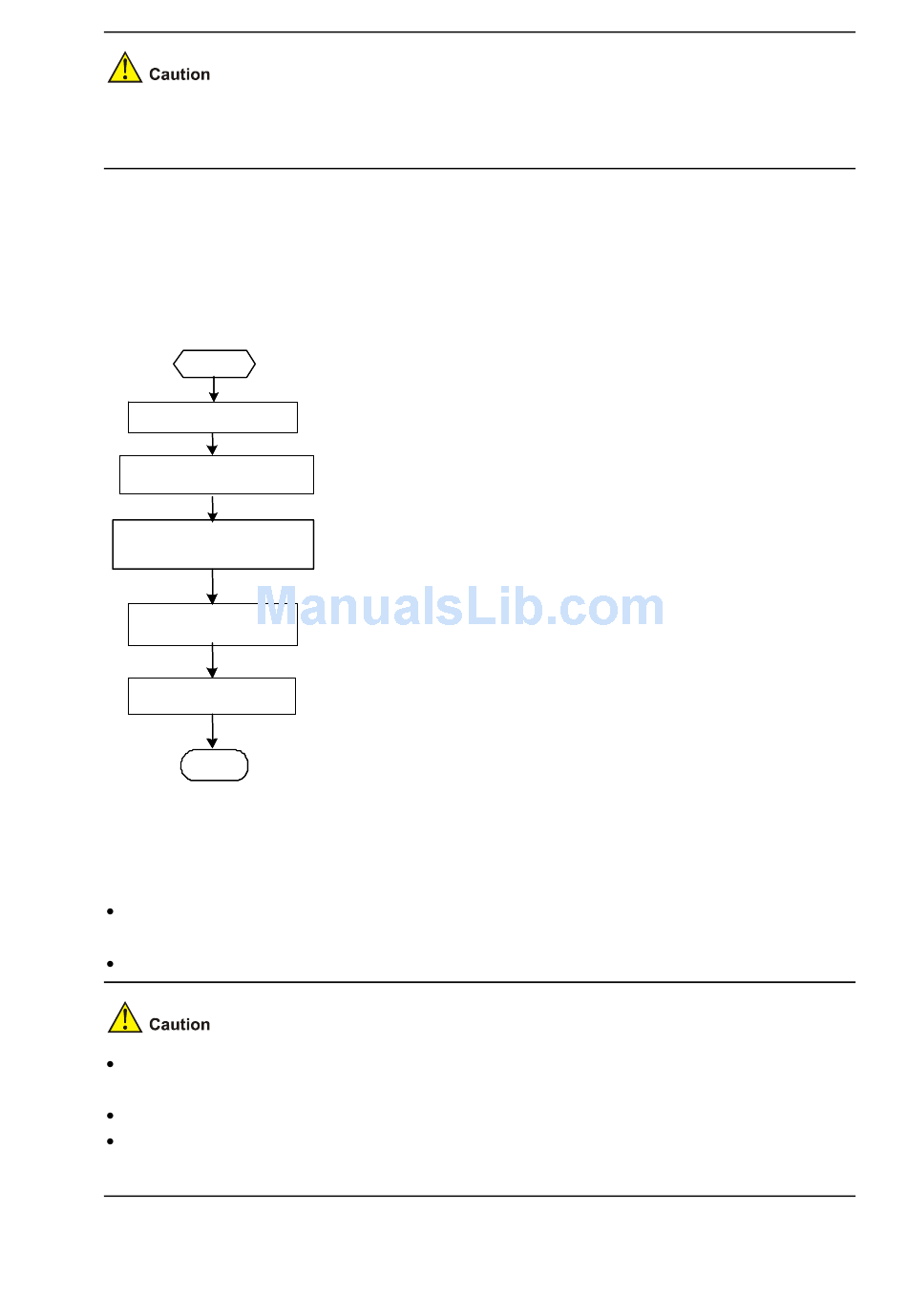

Figure 6-12 Memory bar maintenance flow
Start Start
Prepare tools Prepare tools
Turn off the power switch Turn off the power switch
Locate the memory bar Locate the memory bar
on the main board on the main board
Remove the memory bar Remove the memory bar
Install the memory bar Install the memory bar
End End
Memory bars are main board components that you can expand or upgrade as needed. Generally, you
need to do that in the following situations:
More memory is required when upgrading application program, maintaining a large routing table, or
processing tasks that consume large memory.
The existing Memory bar is damaged.
Hold the memory bar by its edge and avoid touching the components on its surface. An improper
operation might result in damage.
It is normal that you feel hard when removing the memory bar, but do not overexert.
Use the memory bars provided by Technology only. Otherwise, anomalies might occur to the
device.
6-8
