Operating the ValueLoader
Operator's Panel Overview
Operator's Panel Overview

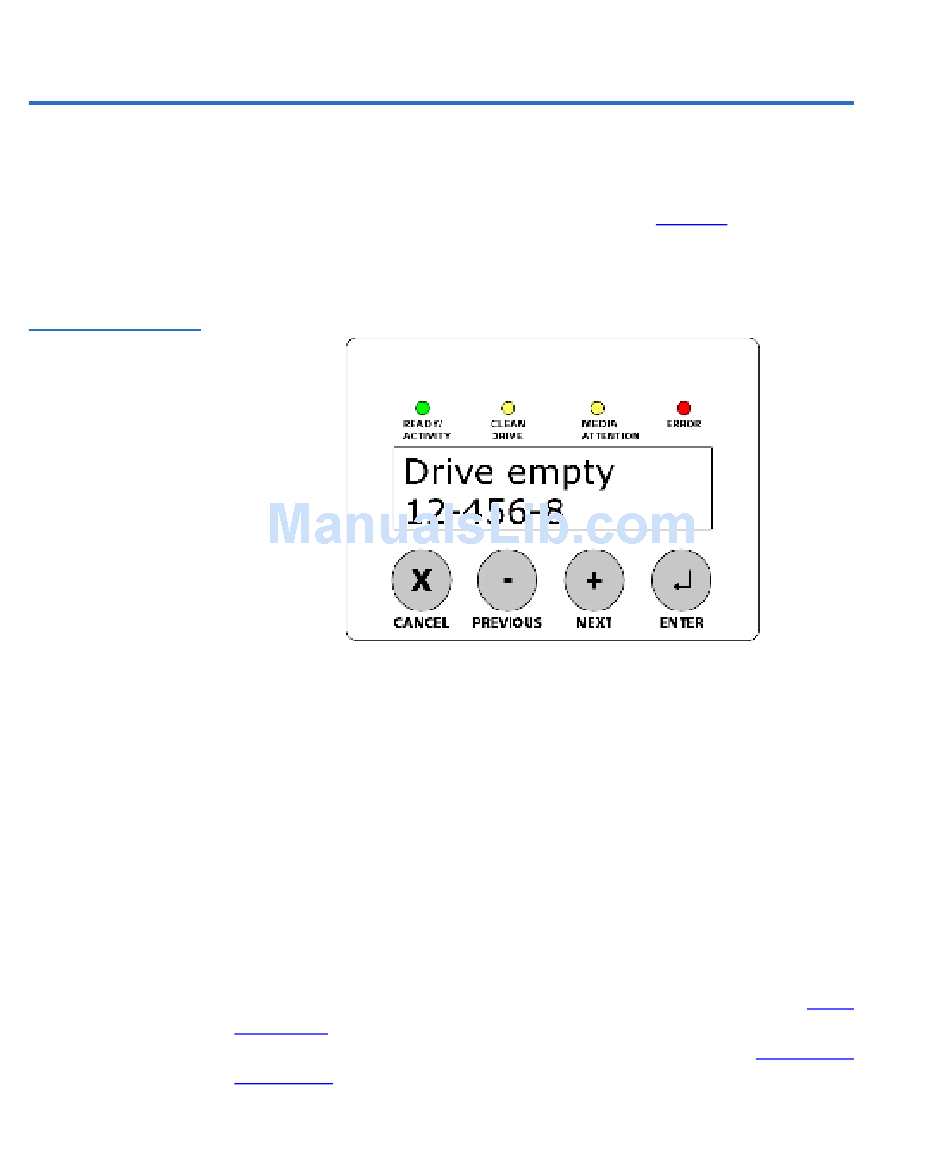

Figure 9 Operator's
Panel—Drive Empty
22
The Operator's Panel consists of four LEDs, four buttons, and a 2-
line by 16-character LCD screen, as shown in
Operator's Panel provides everything you need to monitor
ValueLoader status and to control all ValueLoader functions.
The display defaults to the Home screen. The Home screen
consists of the ValueLoader status on the top line and the current
cartridge inventory on the second line. If the tape drive does not
have a cartridge loaded, the top line displays "Drive empty."
The cartridge inventory indicates all slots that contain a cartridge
by displaying the slot number. Empty slots are indicated by a
hyphen (-).
An exclamation point (!) displayed in the inventory indicates that
the ValueLoader has identified a cartridge in the indicated slot that
either is an invalid cartridge type or has had a media-related error
(e.g, as caused by dirty read/write heads in the tape drive).
The Media Attention LED will be illuminated in this case. See
Indicators
on page 24 for more information. Exporting the
indicated cartridge should clear the error condition. See
Cartridges
on page 29 for instructions.
