Programmer's Guide
ST# 2000 OP# 00067
KLEENEX FAM D04 QTY 1
RITZ D01 QTY 1
CHIPS D01 QTY 1
STORAGE BAG D04 QTY 1
[CR][LF]
[ESC]a<1>
THANK YOU FOR SHOPPING WITH US[CR][LF]
[ESC]a<0>
[CR][LF]
{DATE:0}

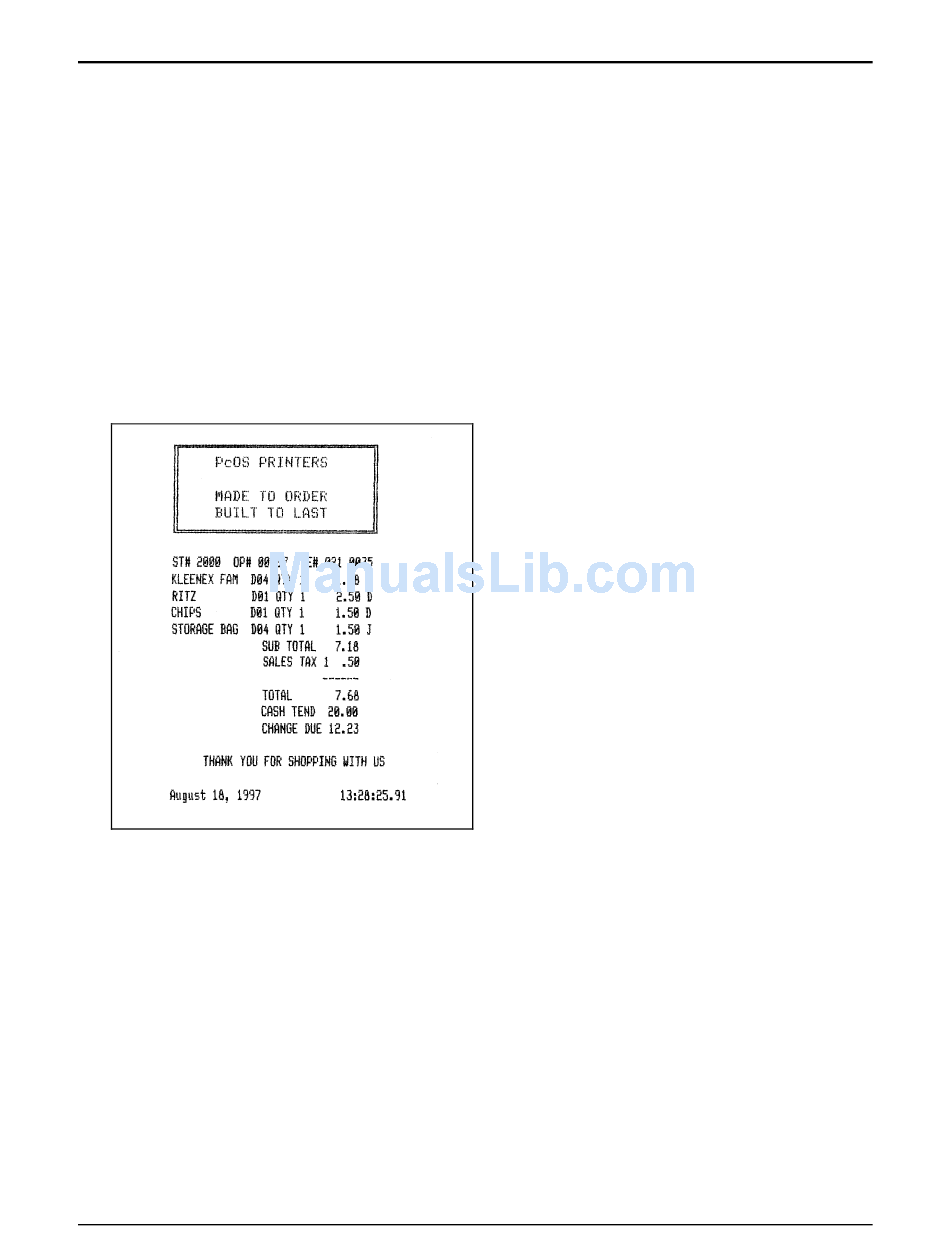

Figure 32 Receipt with extended graphic characters

When printing line graphics, the data path to the printer must be eight bits. Seven-bit serial protocols will not
access the extended characters.
The extended characters require that the form be reverse fed. This means that printing line graphics on the
receipt may be less than acceptable.
11/07/05
PcOS Series 90PLUS
TE# 021 0035[CR][LF]
1.68 J[CR][LF]
2.50 D[CR][LF]
1.50 D[CR][LF]
1.50 J[CR][LF]
SUB TOTAL 7.18[CR][LF]
SALES TAX 1 .50[CR][LF]
------[CR][LF]
TOTAL 7.68[CR][LF]
CASH TEND 20.00[CR][LF]
CHANGE DUE 12.23[CR][LF]
{TIME:0}[CR][LF]
Rev Q
Printing Graphics
Page 151
