Programmer's Guide
To order cables, use the following order numbers:
10-2020 9-pin female to 9-pin female serial interconnect
10-2021 9-pin female to 25-pin female serial interconnect
10-2022 9-pin female to 25-pin male serial interconnect
253-9800007 25-pin male to 25-pin male parallel interconnect
All of the above may be ordered by calling (607) 257-8901 and asking for the Sales Department. If you prefer to fax
in your order, the number is (607) 257-8922. You may also order by mail. Send orders to:
Ithaca Peripherals
20 Bomax Drive
Ithaca, New York 14850
Nine-pin
Female
PN 10-2020
PC
DTR 4
DSR 6
DCD 1
TXD 3
RXD 2
GND 5
RTS 7
CTS 8

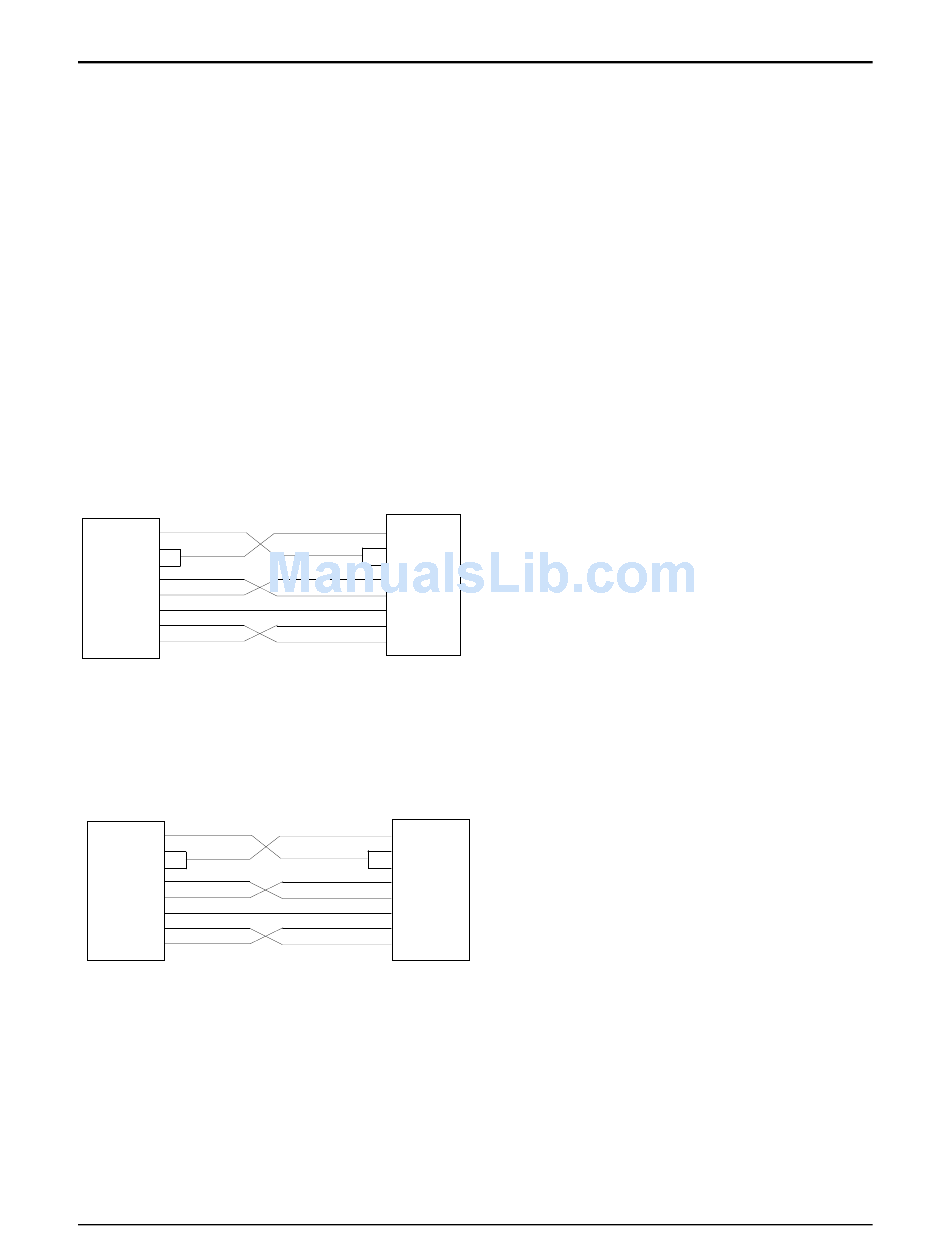

Figure 34 9-pin female to 9-pin female serial interconnect

Twenty-five-pin
PN 10-2021
Female
PC
DTR 20
DSR 6
DCD 8
TXD 2
RXD 3
GND 7
RTS 4
CTS 5

Figure 35 9-pin female to 25-pin female serial interconnect

11/07/05
PcOS Series 90PLUS
Appendix C
Ordering Cables
Nine-pin
Female
Printer
DTR 4
DSR 6
DCD 1
TXD 3
RXD 2
GND 5
RTS 7
CTS 8
Nine-pin
Female
Printer
DTR 4
DSR 6
DCD 1
TXD 3
RXD 2
GND 5
RTS 7
CTS 8
Rev Q
Appendix
Page 157
