Parallel port
Some systems may wish to change the details of how the strobe, busy, and acknowledge signals interact.
The parallel port option features define how the signals operate. In normal mode, the printer follows the
standard (Centronics) parallel port conventions. With Options 1 and 3, the acknowledge and busy signals
change at the same time. This is sometimes referred to as "ack-after-busy." Options 2 and 3 force busy high
on the rising edge of the strobe. This is sometimes referred to as "busy-while-strobe timing." In all cases,
the data is latched on the rising edge of the strobe. In most cases, the normal timing mode will give the best
and most universal results.
DATA
Pins 2-9
STROBE
Pin 1
Normal
BUSY
Pin 11
ACK
Pin 10

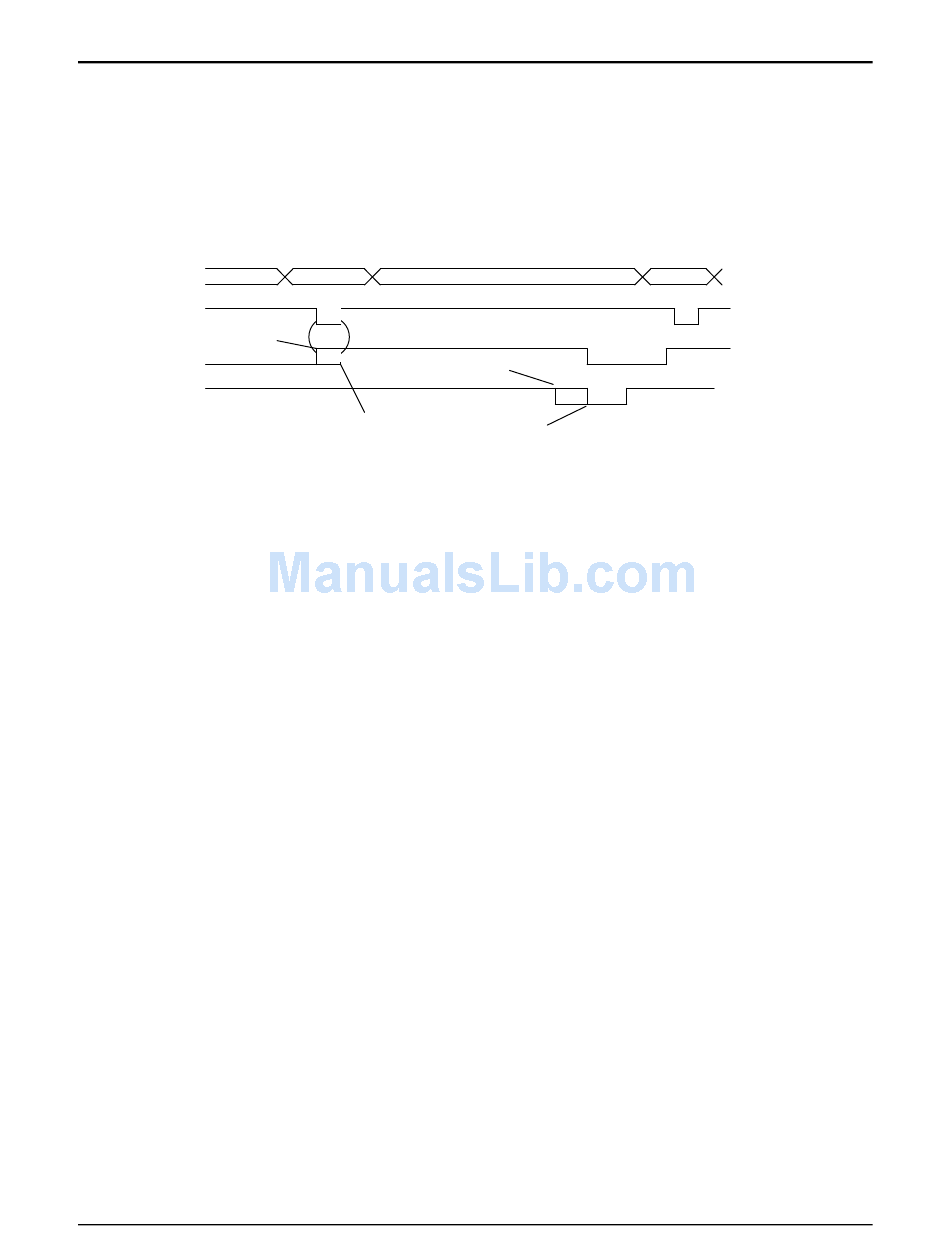

Figure 25

8.2.2

Printer Buffer Size

The Series 90PLUS Printer has a configurable buffer size. It can be set from 256 bytes to 6144 bytes. The
configurable buffer allows an application to control how far ahead the buffer gets from the printer. The
smaller the buffer, the tighter the control will be. It is up to the application developer to select the optimal
buffer size.
8.2.2.1
The Series 90PLUS Printer supports a one-line mode of operation. In one-line mode, the input buffer is
set to 1024 bytes; however, the printer will go busy after every [CR] received by the printer. In one-line
mode, the printer will stay busy after the [CR] is received and remain busy until the previous
information is printed.
There are several features that must be considered when using one-line mode. The printer only looks at
[CR]'s. [LF]'s will cause the printer to print but will not set busy. If a [CR] character is received as part
of another command, i.e. as part of graphic data, the printer will go busy after the [CR] is received, but
will go ready after the [CR] is processed. By definition, one-line mode is slow. The printer will not
allow the application to get ahead of the printer.
8.2.3

Parallel Port Inquire IEEE 1284

The Series 90PLUS Printer supports the IEEE 1284, bidirectional, parallel-peripheral interface standard.
This standard provides for a bidirectional link on the parallel port. The Series 90PLUS Printer only
supports Modes 0 and 4, which provide a nibble mode reverse channel for printer identification and status
inquire commands. It is beyond the scope of this guide to describe the IEEE 1284 protocol. The complete
specification is available from the Institute of Electrical and Electronic Engineers, Inc., 345 East 47th
Street, New York, NY 10017, USA.
