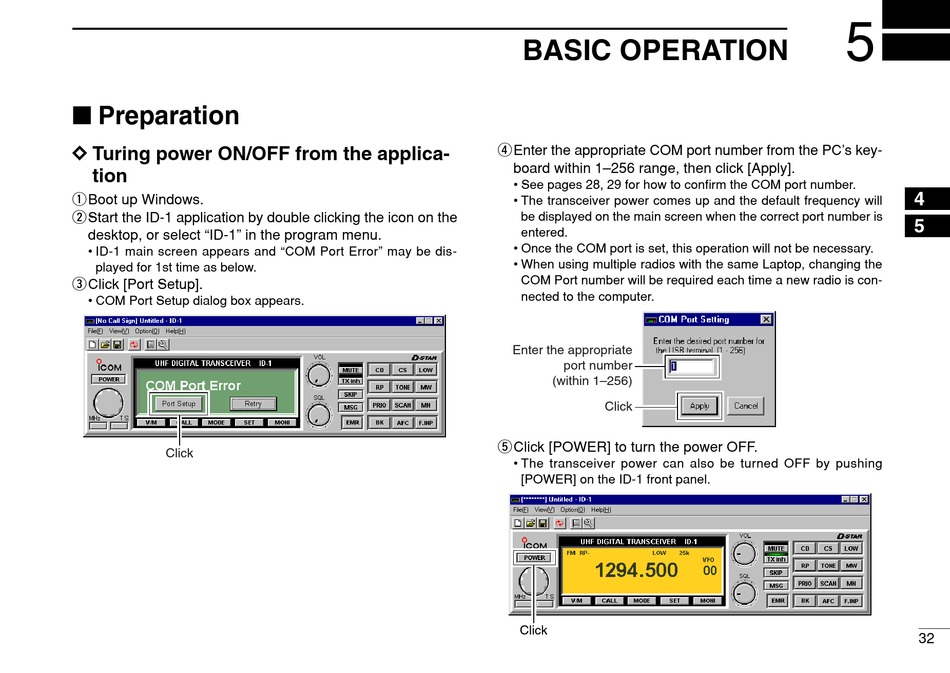

I Preparation

D D Turing power ON/OFF from the applica-
tion
q Boot up Windows.
wStart the ID-1 application by double clicking the icon on the
desktop, or select "ID-1" in the program menu.
• ID-1 main screen appears and "COM Port Error" may be dis-
played for 1st time as below.
e Click [Port Setup].
• COM Port Setup dialog box appears.
Click

BASIC OPERATION

rEnter the appropriate COM port number from the PC's key-
board within 1–256 range, then click [Apply].
• See pages 28, 29 for how to confirm the COM port number.
• The transceiver power comes up and the default frequency will
be displayed on the main screen when the correct port number is
entered.
• Once the COM port is set, this operation will not be necessary.
• When using multiple radios with the same Laptop, changing the
COM Port number will be required each time a new radio is con-
nected to the computer.
Enter the appropriate
port number
(within 1–256)
Click
t Click [POWER] to turn the power OFF.
• The transceiver power can also be turned OFF by pushing
[POWER] on the ID-1 front panel.
Click
5
4
5
32
