DSVP and Physical Configuration Page

You can view the board type and signal status of each I/O board slot on the DSVP and
Physical Configuration page (see figure 58). Click the DSVP and Physical
Configuration link to the left of the Status page to download the DSVP and Physical
Configuration page. The page updates every 30 seconds to show the latest board
types and signal status.

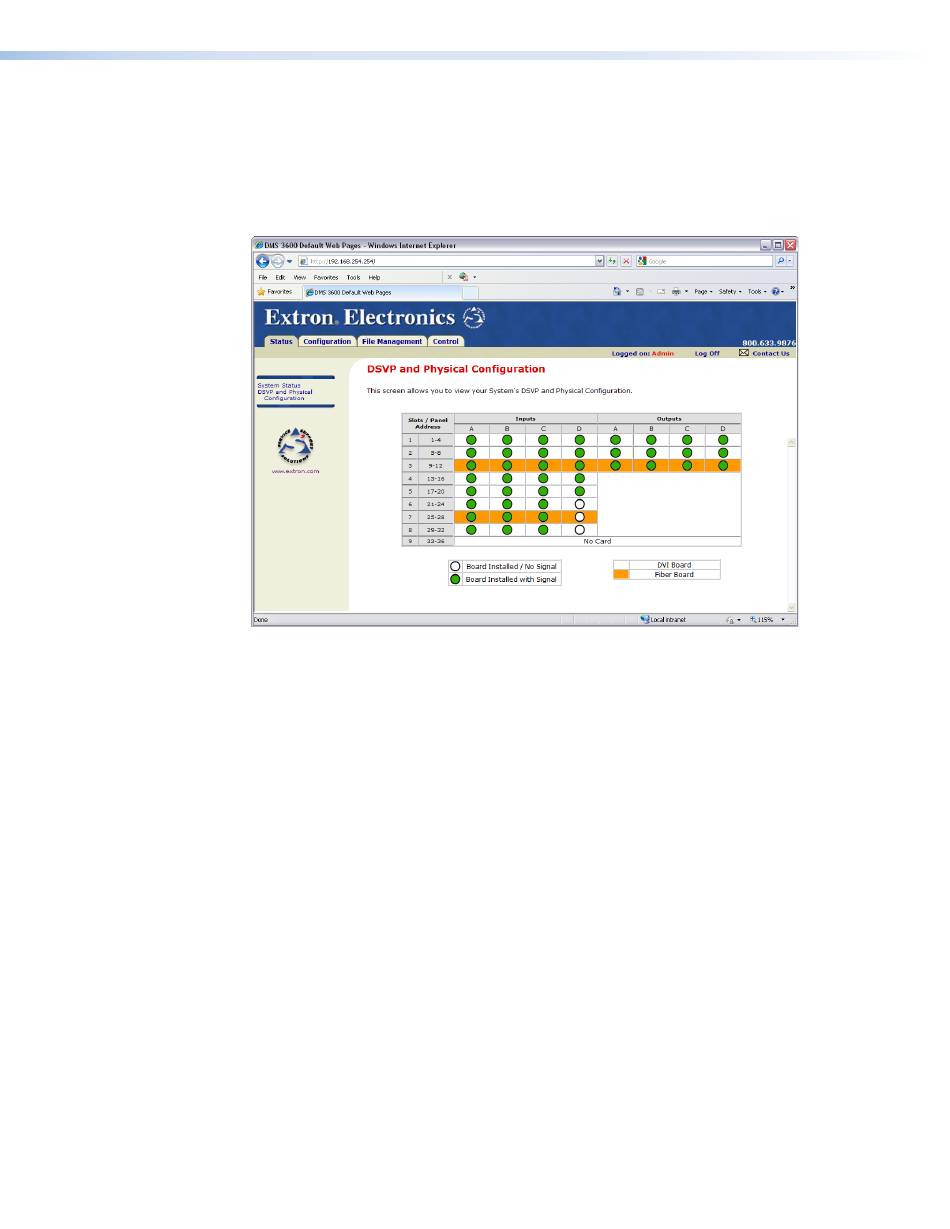

Figure 58. DSVP and Physical Configuration Page
DMS 1600, DMS 2000, DMS 3200, and DMS 3600 • HTML Operation 88
