7. ALARMS

7.1

Overview

There are seven alarm conditions which
generate both aural and visual alarms.
When an alarm setting is violated, the buzzer
sounds and the name of the alarm being
violated appears on the display. The alarm
icon also appears on the Plotter 1, Plotter 2
and Highway displays. This occurs on both
navigators when they are sharing data.
Alarm status is output to external equipment
through the DATA1 port and the DATA4 port
when it outputs data in NMEA format.
34° 23.456´ N 135° 45.678´ E
Alarm message
Arrival Alarm
Speed Alarm
Alarm
icon
Press CLEAR to silence beep
Press CLEAR
Press CLEAR to close window

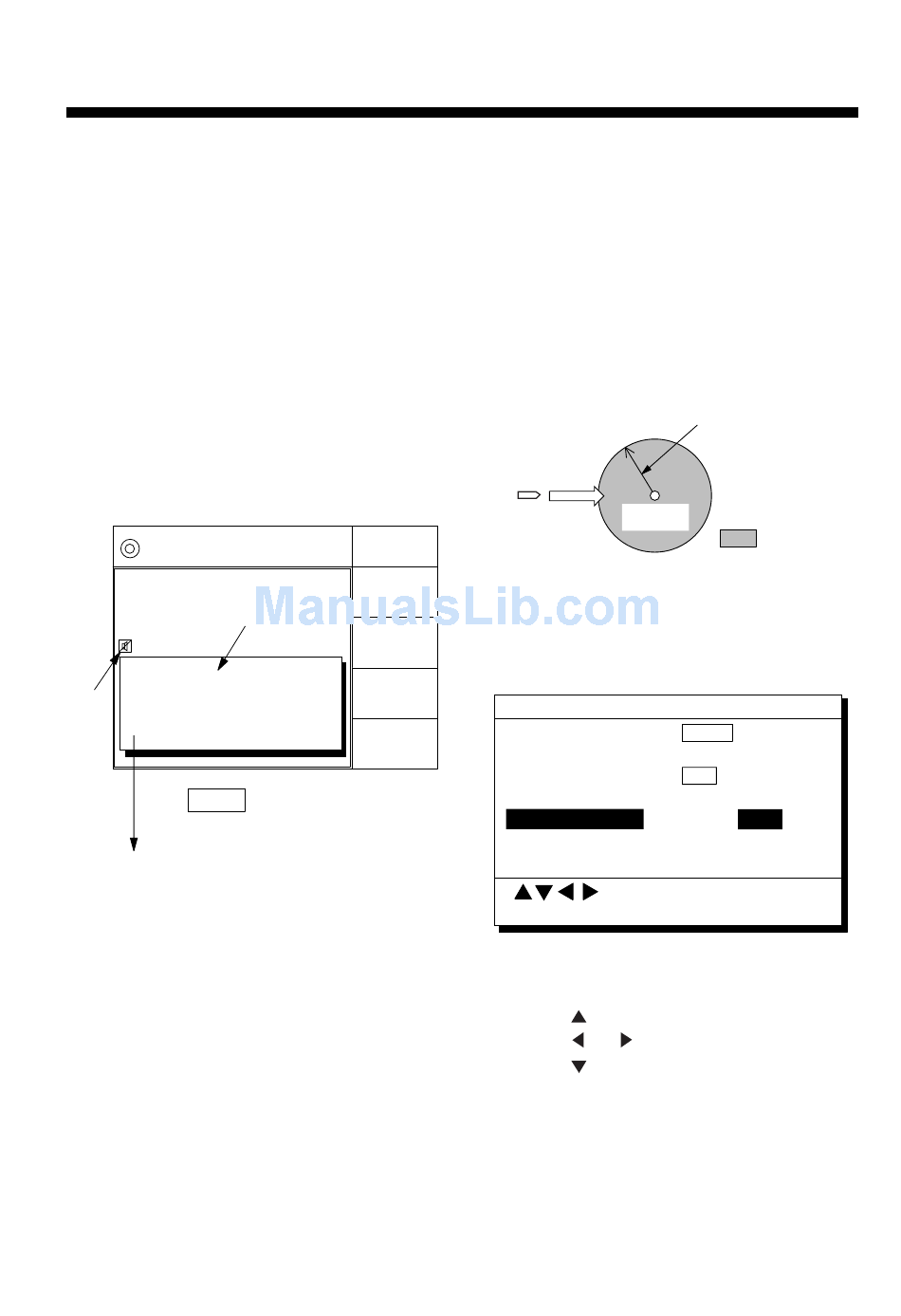

Figure 7-1 Location of alarm
messages and alarm icon
Clearing the aural and visual alarms
Press the CLEAR key. When the navigators
are sharing data, the "reset alarm signal" is
transmitted to the other navigator to clear
aural and visual alarms there.
Disabling an alarm
Select OFF instead of alarm name on the
appropriate menu. This disables the alarm
on both navigators when they are sharing
data.
7.2
Arrival alarm
The arrival alarm informs you that own ship
is approaching a destination waypoint. The
area that defines an arrival zone is that of a
circle which you approach from the outside
of the circle. The alarm will be released if
own ship enters the circle.
Own ship's
position
D3D 100m
* SAFE
Figure 7-2 How the arrival alarm works
BRG
°
234.0
1) Press the MENU ESC key.
COG
°
345.0
2) Press 4 to display the ALARM
SETTINGS menu.
RNG
123
NM
SOG
Arrival/Anchor
12.3
kn
XTE
Ship Speed
Ship Speed
Next Page
ENT : Enter
3) Press
4) Press
5) Press
6) Key in alarm range (0.001-9.999 NM).
7) Press the NU/CU ENT key.
8) Press the MENU ESC key.
When own ship nears a waypoint by the
range set here, the buzzer sounds and the
message "Arrival Alarm" appears.
Arrival Alarm, Anchor
Watch Alarm
Alarm
setting
Destination
waypoint
ALARM SETTINGS
ARRV
Alarm Range 0.100NM
On
Alarm Range 0.050NM
In
Speed Rage 000.0 ~ 025.0kn
: Select
MENU : Escape
Figure 7-3 ALARM SETTINGS
menu, page 1/2
to select Arrival/Anchor.
or to select ARRV.
to select Alarm Range.
: Alarm range
1/2
