Furuno GP-150 Operator's Manual

GPS NAVIGATOR GP-150/DUAL
The purpose of this Guide is to provide basic operating procedures for this equipment. For more
detailed information, see the Operator's Manual.

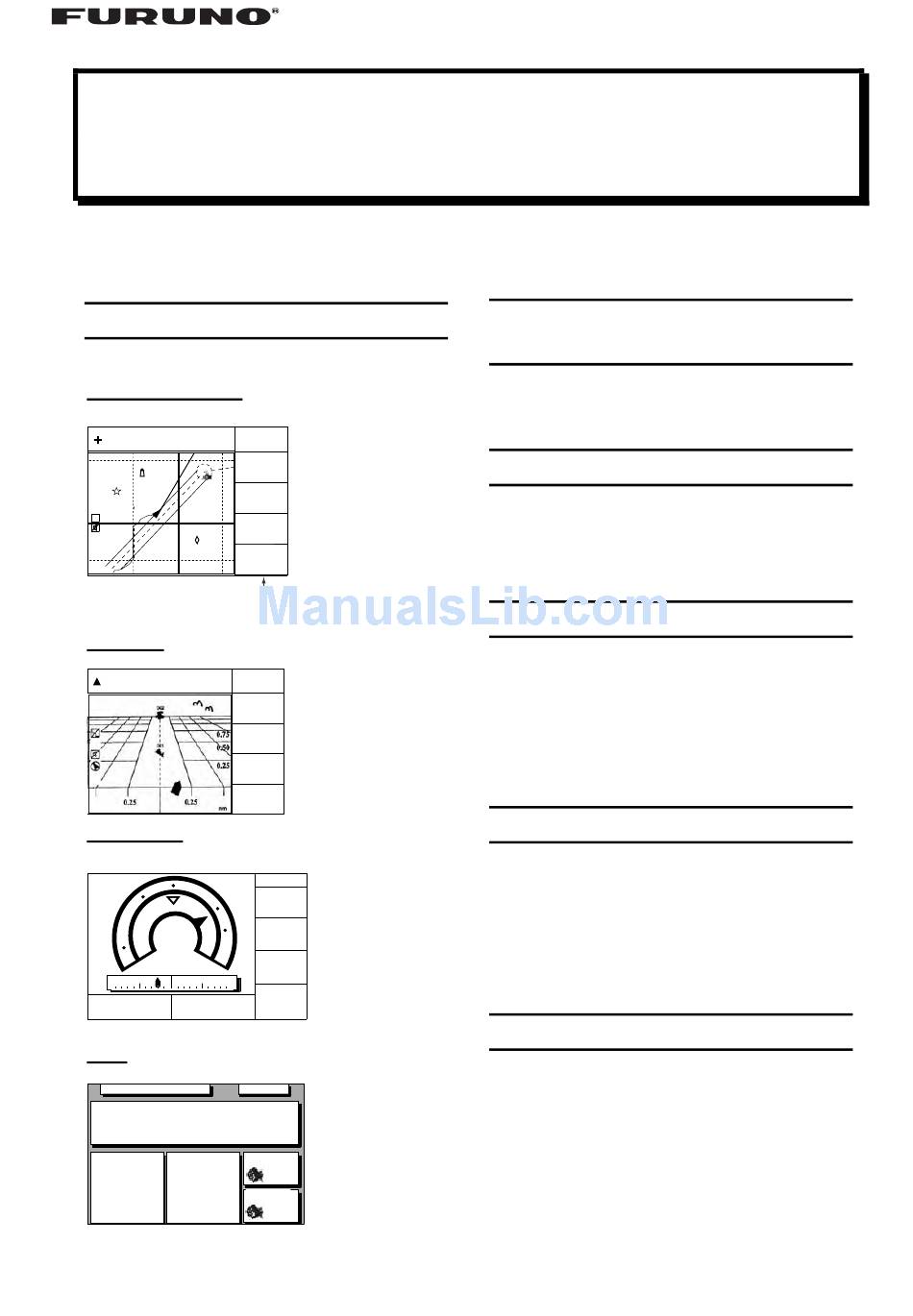

Selecting a Display Mode
Press DISPLAY SEL to select desired mode.
Plotter 1/Plotter 2
D3D 100m
34° 23.456´ N 135° 45.678´ E
SAFE
30
BRG
234°
001
COG
345°
40
50
H
BRG To +
123°
RNG To +
20
11.5
WGS84
16.00
Highway
D3D 100m
34° 23.456´ N 135° 45.678´ E
SAFE
BRG
34°
COG
45°
RNG
0.35
SOG
12.3
WGS84
Navigation
D3D
012
TO; SAFE
E
SOG
12.3
N
VTD
BRG
63° 10.3
CSE
S
RNG
123°
0.1nm 0.1nm 123
TRIP
3D
ETA 15 TTG
789
23:45' 17H 45M
WGS84
Data
D3D
JUN 12, 2006 23:59'59" U
SAFE
12° 23.456' N
POSITION
123° 23.456' E
TO : 001
RNG BRG
223.4°
31.23
nm
NEXT
SOG COG
12.3
123.4°
kt
Operator's Guide
Ship's track and
data
nm
This column does not
appear on Plotter 2 display.
3D view of ship's
track overlaid on
intended course
nm
kt
100m
Graphic display
of steering data
kt
kt
nm
nm
100m
Comprehensive
navigation data
display
MARINE
POINT1
: 002
MARINE
POINT2
Enlarging/Shrinking the
Display
Press ZOOM IN to enlarge.
Press ZOOM OUT to shrink.

Shifting the Cursor

1) Press CURSOR ON/OFF to turn on the
cursor.
2) Operate the cursor pad to shift the cursor.

Shifting the Display

1) Press CURSOR ON/OFF to turn off the
cursor.
2) Operate the cursor pad to shift the display.
Press the CENTER key to shift own ship to
the center of the display.

Centering Cursor Position

1) Press CURSOR ON/OFF to turn on the
cursor.
2) Operate the cursor pad to position the cur-
sor where desired.
3) Press CENTER.
Entering/Erasing Marks
1) Press CURSOR ON/OFF to turn on the
cursor.
2) Operate the cursor pad to position the cur-
sor where you wish to enter a mark.
3) Press MARK.
To erase any mark (except MOB), place
the cursor on the mark and press CLEAR.
