Cable Connections, Seating, and Installation
Cable Connections with threaded cable ends are required to be installed and maintained following the specifications
identified below. Failure to follow these specifications can lead to the dislocation of the threaded cable during
use and can cause serious injury. Along with securing the threaded cable end and jam nut, it is important to check
the entire unit and ensure that all hardware is securely fastened and not left loose upon completion of cable
installation.
CABLE CONNECTIONS TYPES

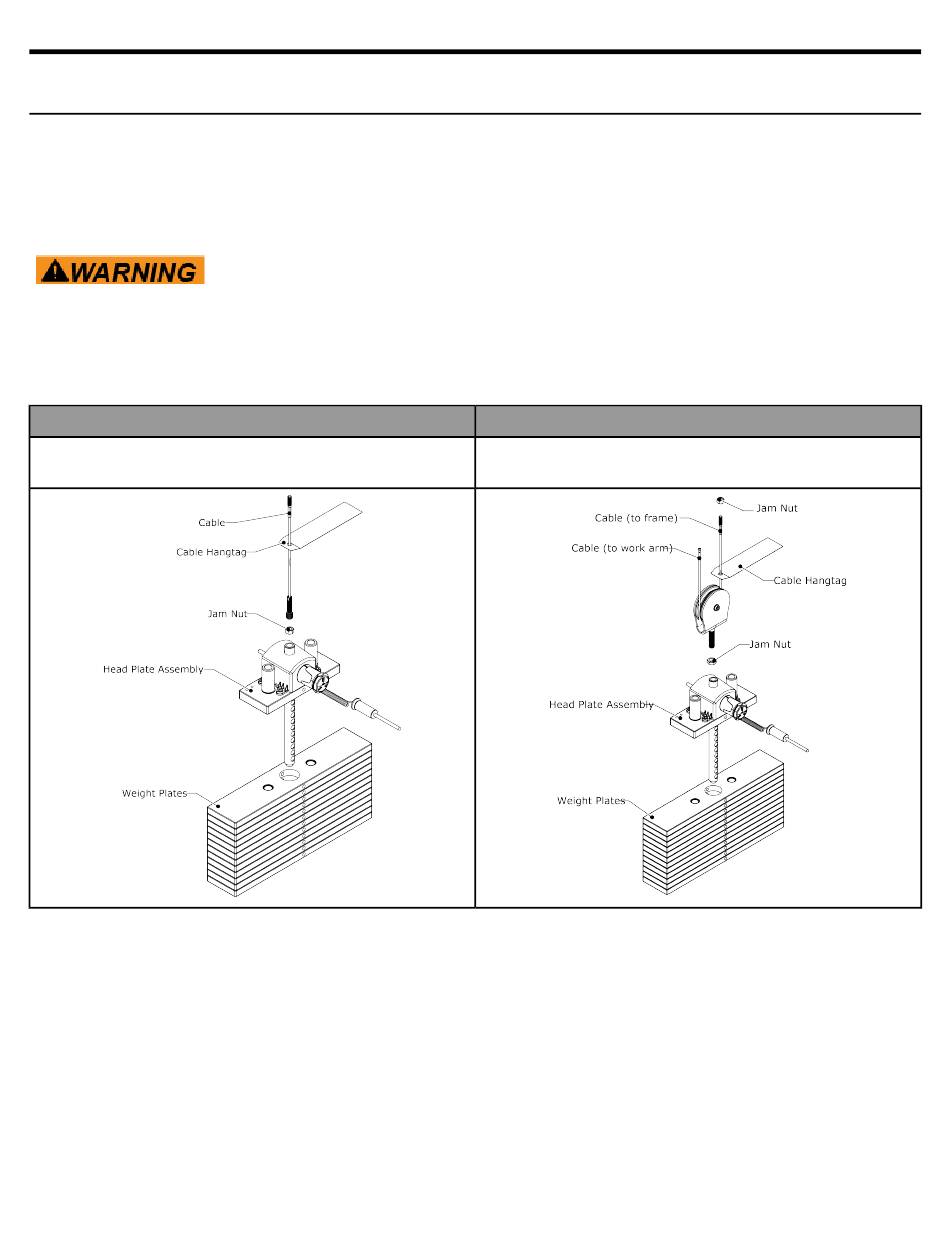

There are two general cable connection types: Direct Link and Floating Pulley
DIRECT LINK
Cable is inserted directly into the head plate assembly.
• Jam nuts must be tightened toward the head plate assembly and frame anchor. Torque the jam nuts to 20-25
FT-LBS (27.2 - 24.0 Nm).
• Cable Hangtags to be removed by customer only.
Cable Handling Guide
Use of non certified "techs" note: Service warranties may be void if a non-Cybex
International, Inc.-certified technician performs service work. Replacement of any
strength cables should be performed by a Cybex International, Inc. certified technician.
Page 45 of 54
FLOATING PULLEY
Cable is routed around the floating pulley above the weight stack
and is anchored at the frame.
