Install Lower Mount

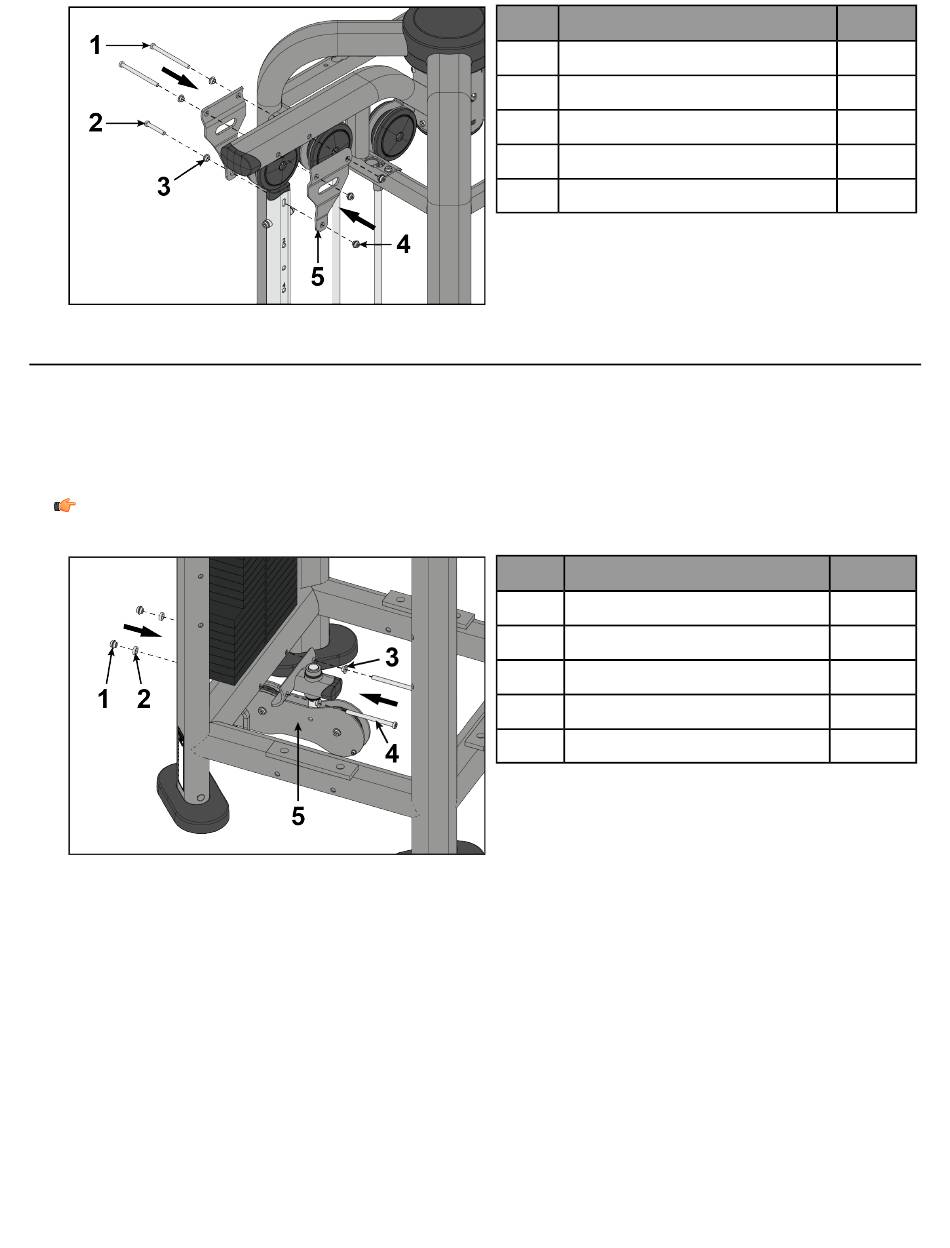

The following procedure shows how to install the lower mounts to the CORE for the following products: PP-HL,
PP-FCO, PP-FXO.
Tools Required:
• 7 mm Allen wrench (x2)
• Torque wrench
Note: All screws must be torqued to 25-30 FT-LBS. (27.1-33.9Nm).
1 Screw, M10 x 1.5, 130 mm
2 Screw, M10 x 1.5, 60 mm
3
4 Nut, M10 x 1.5 socket head
5 Adjustment tube bracket
1 Nut, M10 x 1.5 socket head
2
3
4 Screw, M10 x 1.5, 130 mm
5
