Install Lower Mount

The following procedure shows how to install the lower mounts to the CORE for the following products: PP-ADC.
Tools Required:
• Retaining ring pliers
• 5 mm Allen wrench
• 7 mm Allen wrench (x2)
• Torque wrench
Note: All screws must be torqued to 25-30 FT-LBS. (27.1-33.9Nm).

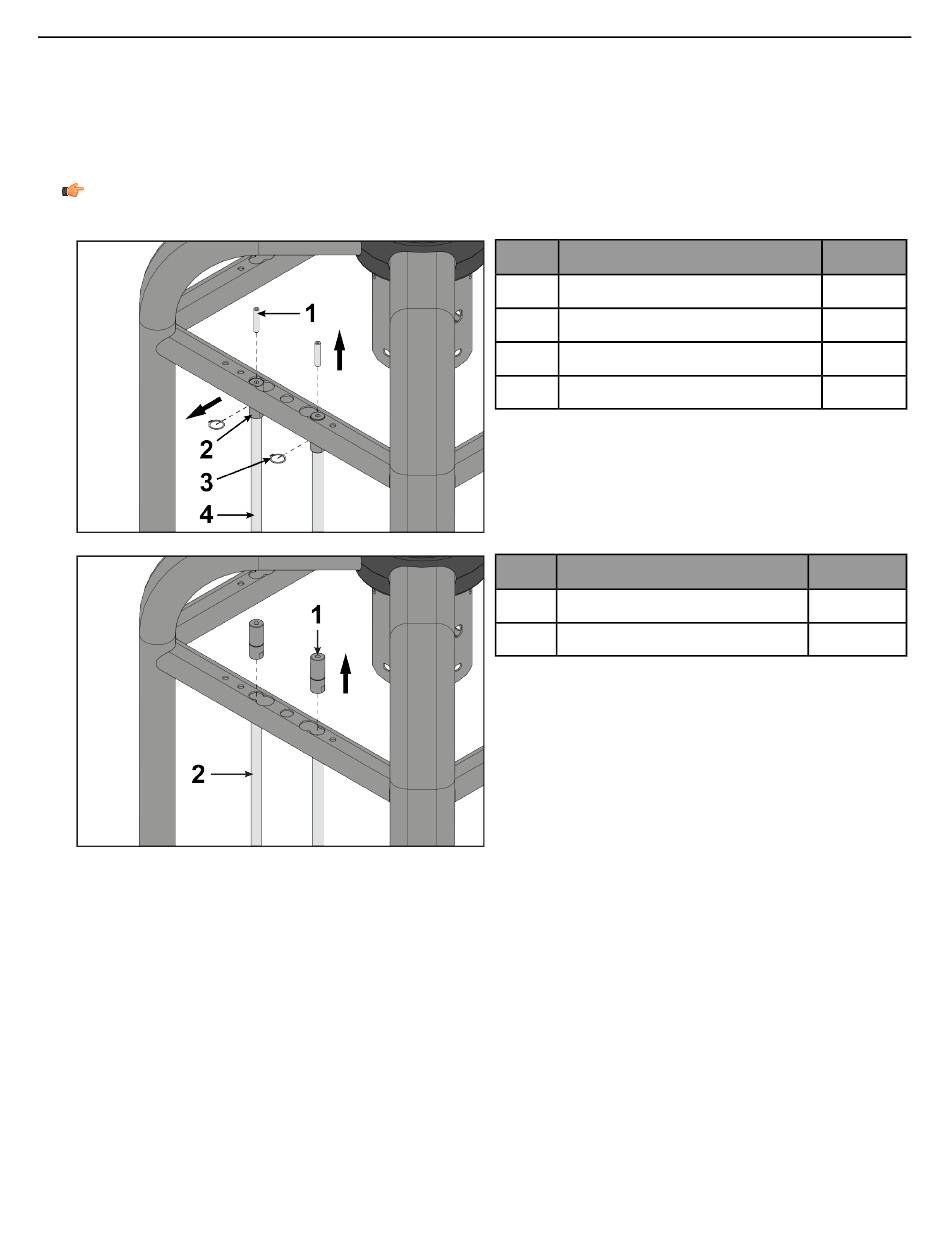

1.
2.
1 Screw, M10 x 1.5 HXS, 50 mm
2
3
4
1 Guide rod retainer
2
Page 20 of 54
Description
Guide rod retainer
Retaining ring
Guide rod
Description
Guide rod
Qty
2
2
2
2
Qty
2
2
