Install Lower Mount

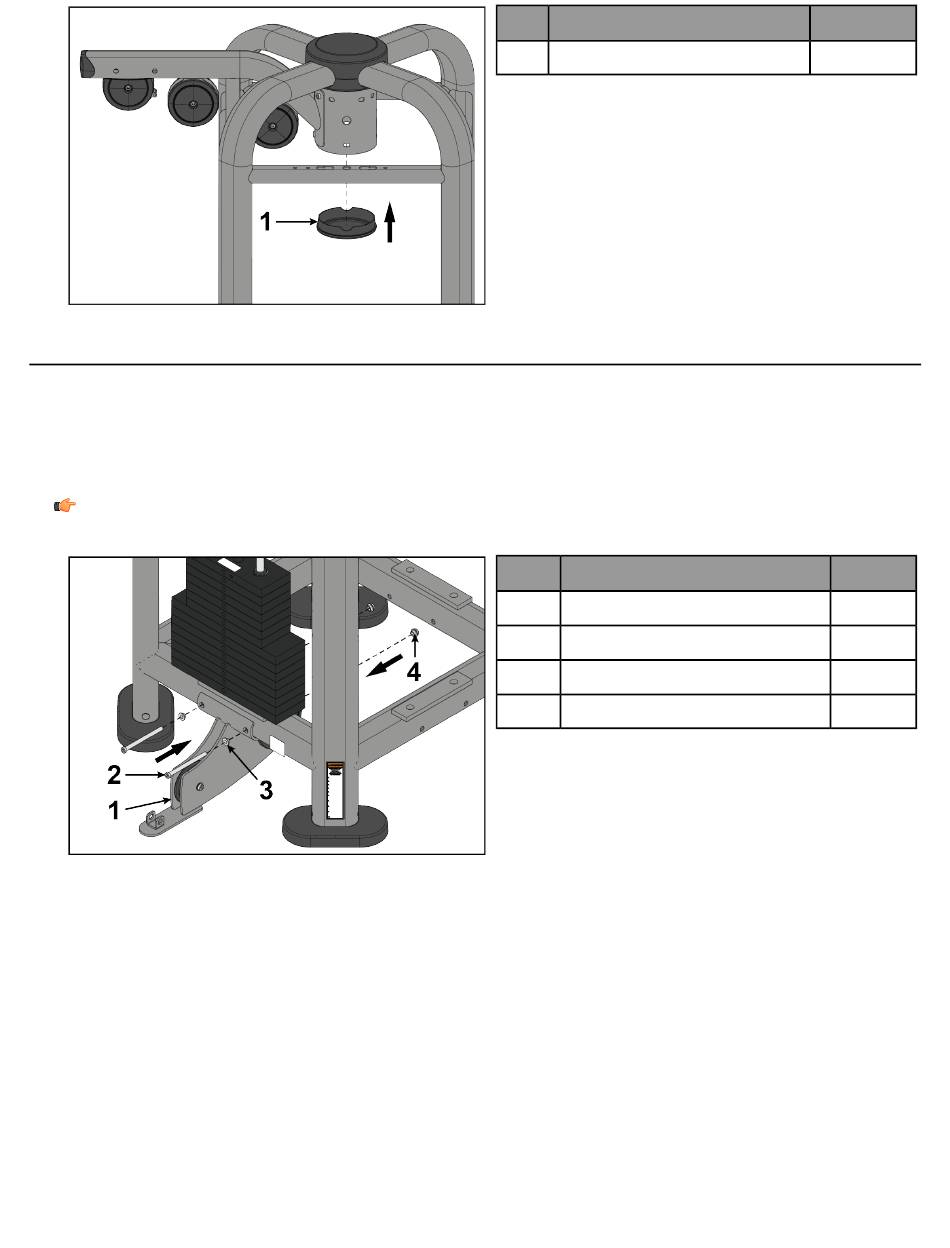

The following procedure shows how to install the lower mounts to the CORE for the following products: PP-AP,
PP-AP41, PP-AXO, PP-ACOFS, and PP-ACO.
Tools Required:
• 7 mm Allen wrench (x2)
• Torque wrench
Note: All screws must be torqued to 25-30 FT-LBS. (27.1-33.9Nm).
1.
1 Bottom cap cover
1
2 Screw, M10 x 1.5, 130 mm
3
4 Nut, M10 x 1.5 socket head
Page 16 of 54
Description
Description
Lower mount
Washer
Qty
1
Qty
1
2
2
2
