Install Handle Accessory Rack - CYBEX PP-ACO Assembly Manual

Install Handle Accessory Rack

The following procedure shows how to install the Handle Accessory Rack (HAR) to the CORE.
Tools Required:
• 7 mm Allen wrench (x2)
• Torque wrench
Note: All screws must be torqued to 25-30 FT-LBS. (27.1-33.9Nm).

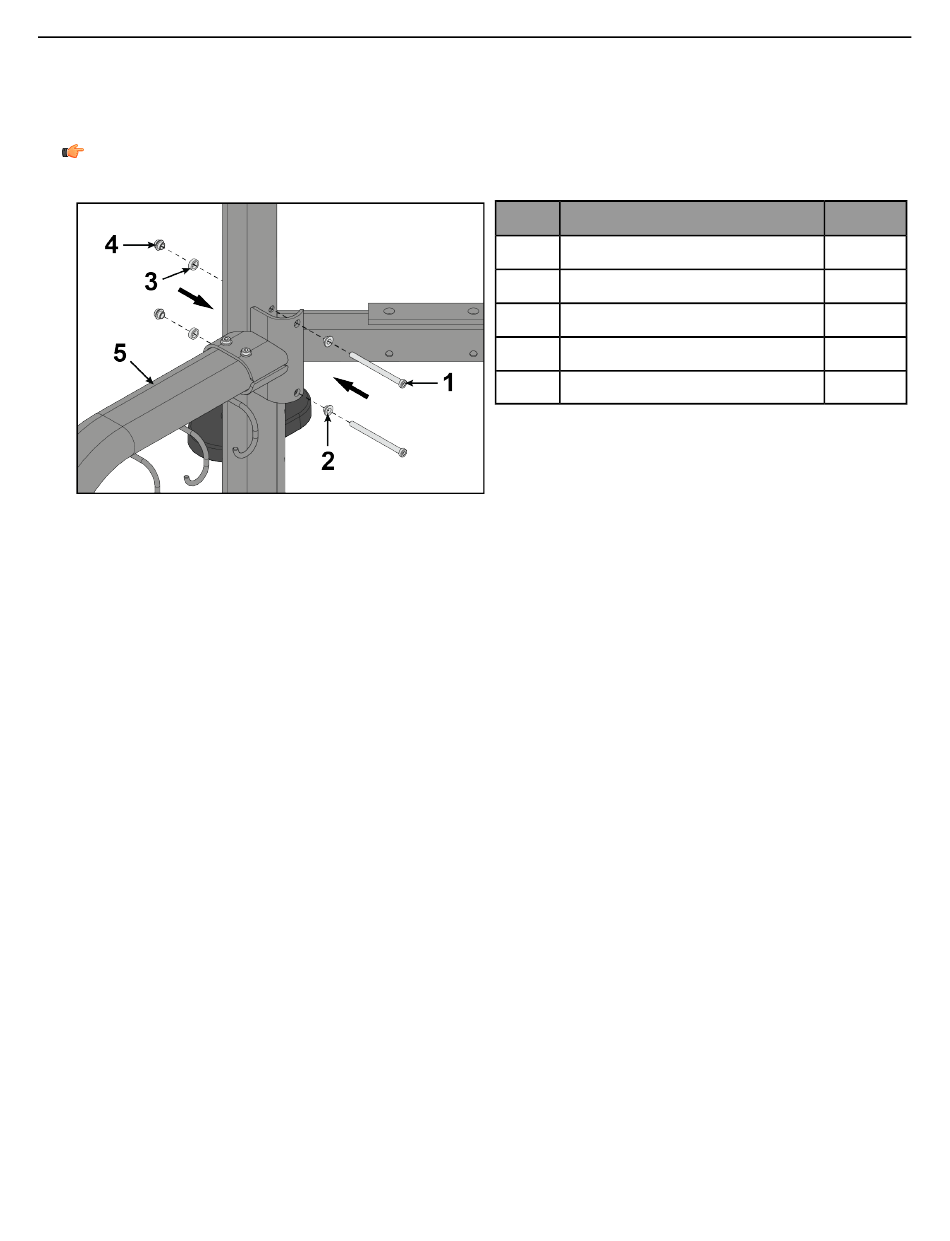

1 Screw, M10 x 1.5, 130 mm
2
3
4 Nut, M10 x 1.5 socket head
5 Handle accessory rack
Page 24 of 54
Description
Washer
Spacer
Qty
2
2
2
2
1
