3.

Install Top Mount

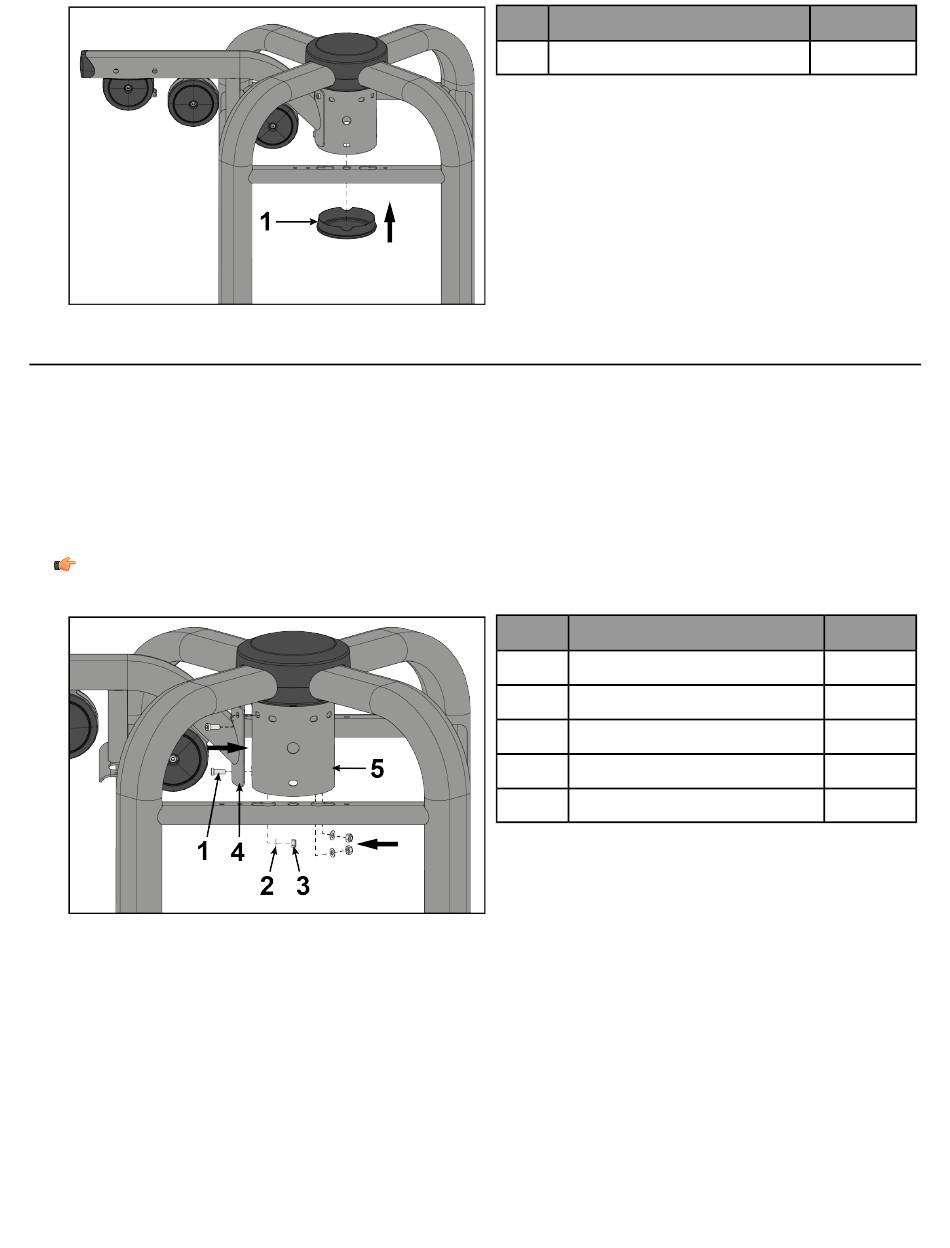

The following procedure shows how to install the top mounts to the CORE for the following products: PP-DPH
and PP-DPL.
Tools Required:
• 5 mm Allen wrench
• 7 mm Allen wrench
• 17 mm Open end wrench
• Retaining ring pliers
• Torque wrench
Note: All screws must be torqued to 25-30 FT-LBS. (27.1-33.9Nm).
1.
1 Bottom cap cover
1 Screw, M10 x 1.5, 25 mm
2
3
4
5
Page 13 of 54
