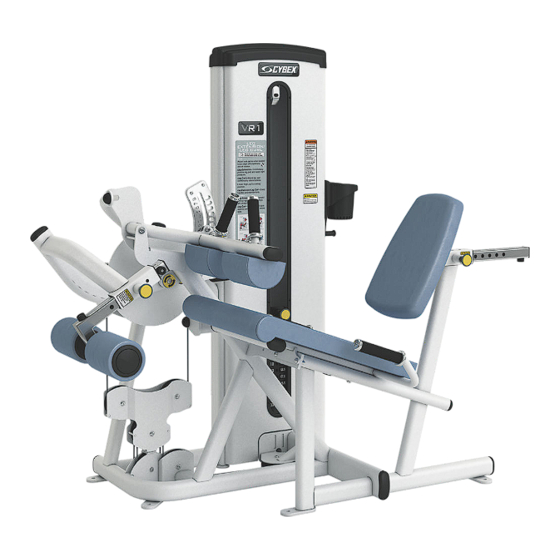

VR1 Leg Extension/Leg Curl
Owner's Manual
Part Number
13265-999-4 AD

Advertisement

Table of Contents
loading

Summary of Contents for CYBEX 13265-999-4 AD

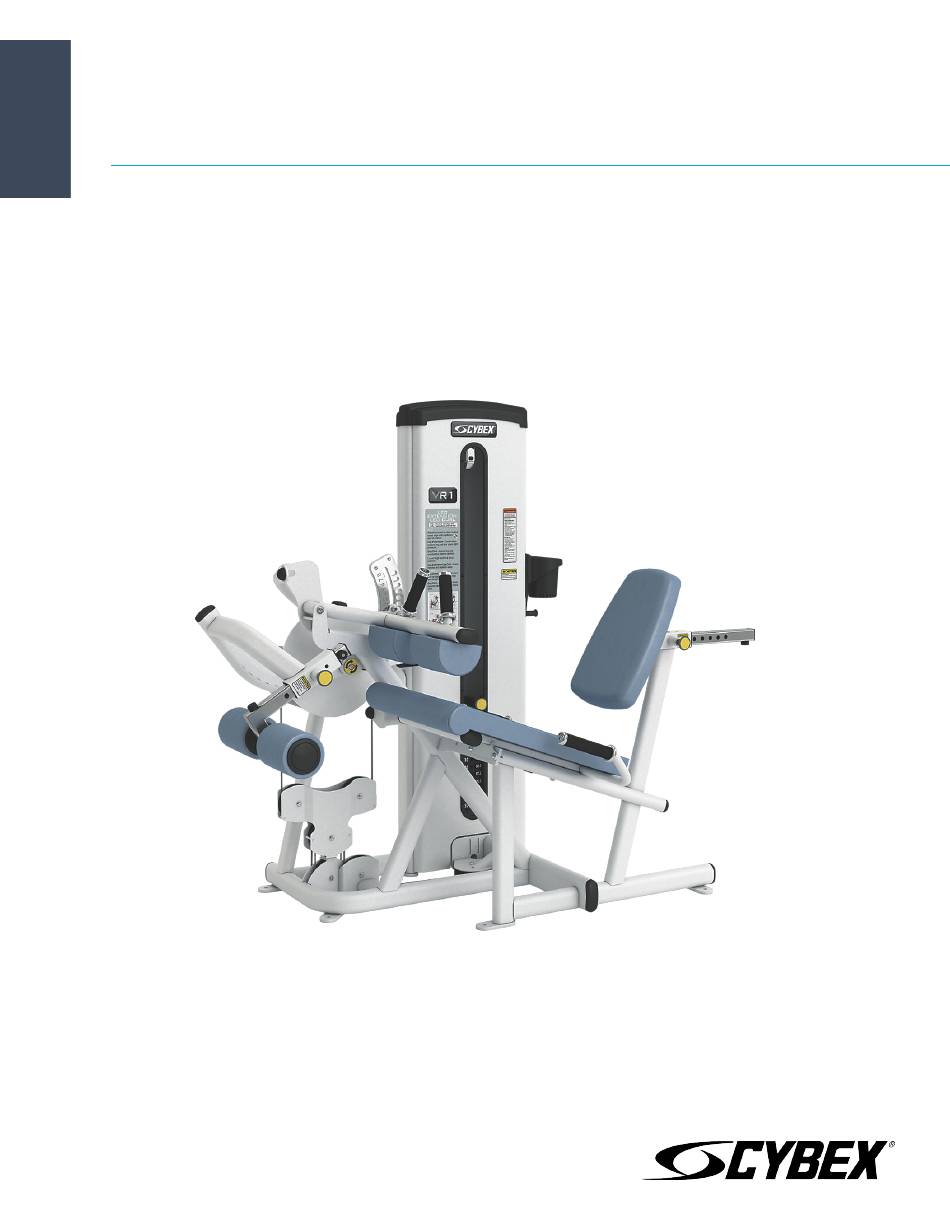

  • Page 1 VR1 Leg Extension/Leg Curl Owner's Manual Part Number 13265-999-4 AD...
  • Page 3: Table Of Contents

    Cybex International, Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.
  • Page 4: Safety Guidelines And Practices

    To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. •...
  • Page 5: User Safety Precautions

    DO NOT pin weights on selectorized equipment in an elevated position or use the machine if found in this position • DO NOT increase weight resistance on equipment by any means other than those provided by Cybex. • DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving parts.
  • Page 6 Contact Customer Support Services to replace any worn or damaged labels. Page 4 of 22...
  • Page 7: Label Placement

    Label Placement The following diagram shows where each label is located. Description DE000001-X DE000005-X 4510-321-X 8500-025-X Page 5 of 22...
  • Page 8: Assembly

    Assembly Machine Specifications Total Weight and Size: 13265 VR1 Leg Extension/Leg Curl Standard Stack Weight Machine Dimensions at Rest Machine Dimensions in Use 437 Lbs 66” L × 41” W × 62” H 70” L × 41” W × 62” H 199 Kg 168 cm L ×...
  • Page 9: Environment

    Environment Humidity and Static Electricity The unit is designed to function normally in an environment with a relative humidity range of 30% to 75%. The unit can be shipped and stored in a relative humidity range of 10% to 90%. Climatic dry air may cause static electricity.
  • Page 10: Tools Required

    To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. •...
  • Page 11 1. Remove the two Button Head Socket Cap Screws (BHSCS) securing the top cap to the frame using a 7/32” Allen wrench. Description Qty. BHSCS Top cap Shroud 2. Remove top cap and BHSCS. 3. Lift shroud up and out of machine. 4.
  • Page 12 10. Move to desired location. 11. Remove shipping cones using a 3/4” socket or wrench. 12. Remove bolt from shipping cone with hammer. Recycle cone. 13. Attach foot pads to each foot of frame. Install weight plates 1. Lean guide rods slightly outward, away from machine, DO NOT put excessive pressure on guide rods, it will damage lower guide rod caps.
  • Page 13 5. Remove front sheet, do not peel decals off of weight plates. Item Description Weight plate decal Weight stack selector pin 6. Repeat above steps for other half of the weight plate decals. Belt routing 1. Verify belt is routed through top of pulley bracket and then route end of belt down to the top weight. 2.
  • Page 14 To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. •...
  • Page 15: Exercise

    Exercise Intended Use The intended commercial use of this machine is to aid exercise and improve general physical fitness. Instructions TIP: Read and understand all instructions and warnings prior to using this machine in the Safety section of the Owner’s Manual. CAUTION: Use only in manner depicted.
  • Page 16: Maintenance

    Cleaning products may be harmful/irritating to your skin, eyes, etc. Use protective gloves and eye protection. Do Not inhale or swallow any cleaning product. Protect surrounding area/clothing from exposure. Use in well ventilated area. Follow all product manufacturer’s warnings. Cybex and its vendors cannot be held responsible for damage or injuries resulting from the use or misuse of cleaning products.
  • Page 17: Weekly Procedures

    Then 1. Apply a light coat of furniture wax for 30 seconds. Restoring Luster 2. Lightly rub area using a clean white cloth. Clean Frames Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.
  • Page 18: Yearly Procedures

    The following conditions may indicate a worn cable: Condition of Cable Diagram A tear or crack in the cable sheath that exposes the cable A kink in the cable A curled sheath Necking - A stretched cable sheath Inspect Other Items Inspect other items for proper operation, damage, or wear.
  • Page 19 Four types of cable tension adjustment are used on Cybex Strength Systems: Jam Nut Adjustment This type of adjustment uses a jam nut and a tension adjustment nut at the cable cam end as the primary adjustment. The other end of the cable usually contains a roll pin adjustment.
  • Page 20 Cam End Adjustment This type of adjustment uses an adjustment bolt on the pulley bracket. Loosen nut and rotate cam bolt to adjust cable. Item Description Qty. Cam bolt adjustment Page 18 of 22...
  • Page 21: Customer Service

    Follow the following procedures carefully. Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label.
  • Page 22: Damaged Parts

    Damaged Parts Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the carrier (UPS, Federal Express, trucking companies, etc.) Apparent Damage Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must be noted on the freight bill and signed by the carrier’s agent.
  • Page 24 Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893 www.cybexintl.com...
