Install Lower Mount - CYBEX PP-ACO Assembly Manual

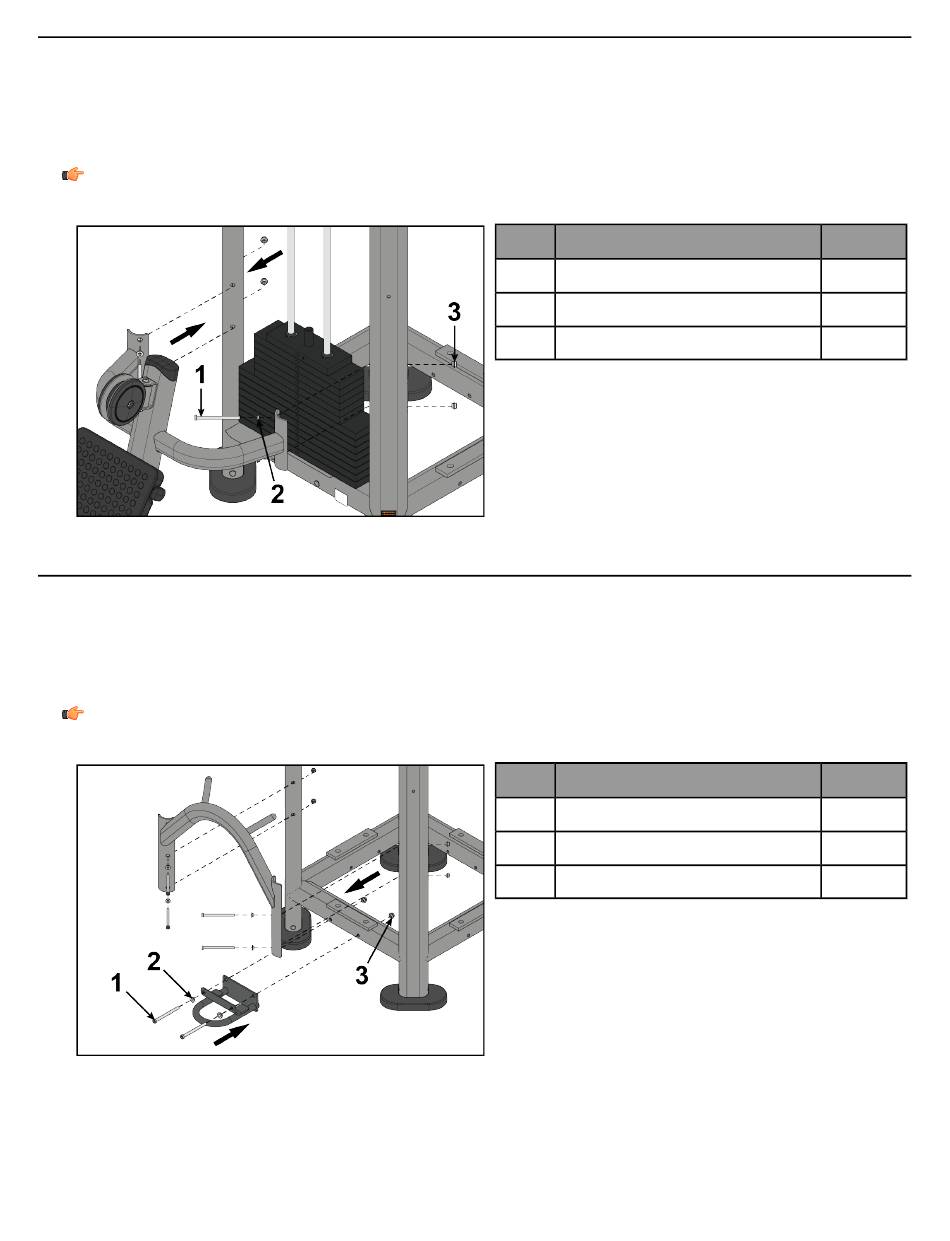

Install Lower Mount

The following procedure shows how to install the lower mounts to the CORE for the following products: PP-DPH,
PP-DPL, PP-RWD, PP-RPL, PP-RW, and PP-SB.
Tools Required:
• 7 mm Allen wrench (x2)
• Torque wrench
Note: All screws must be torqued to 25-30 FT-LBS. (27.1-33.9Nm).
Install Lower Mount
The following procedure shows how to install the lower mounts to the CORE for the following products: PP-BX,
PP-LPD, PP-LP, and PP-RP.
Tools Required:
• 7 mm Allen wrench (x2)
• Torque wrench
Note: All screws must be torqued to 25-30 FT-LBS. (27.1-33.9Nm).
1 Screw, M10 x 1.5, 130 mm
2
3 Nut, M10 x 1.5 socket head
1 Screw, M10 x 1.5, 130 mm
2
3 Nut, M10 x 1.5 socket head
Page 19 of 54
Description
Washer
Description
Washer
Qty
4
4
4
Qty
6
6
6
