Install Top Mount

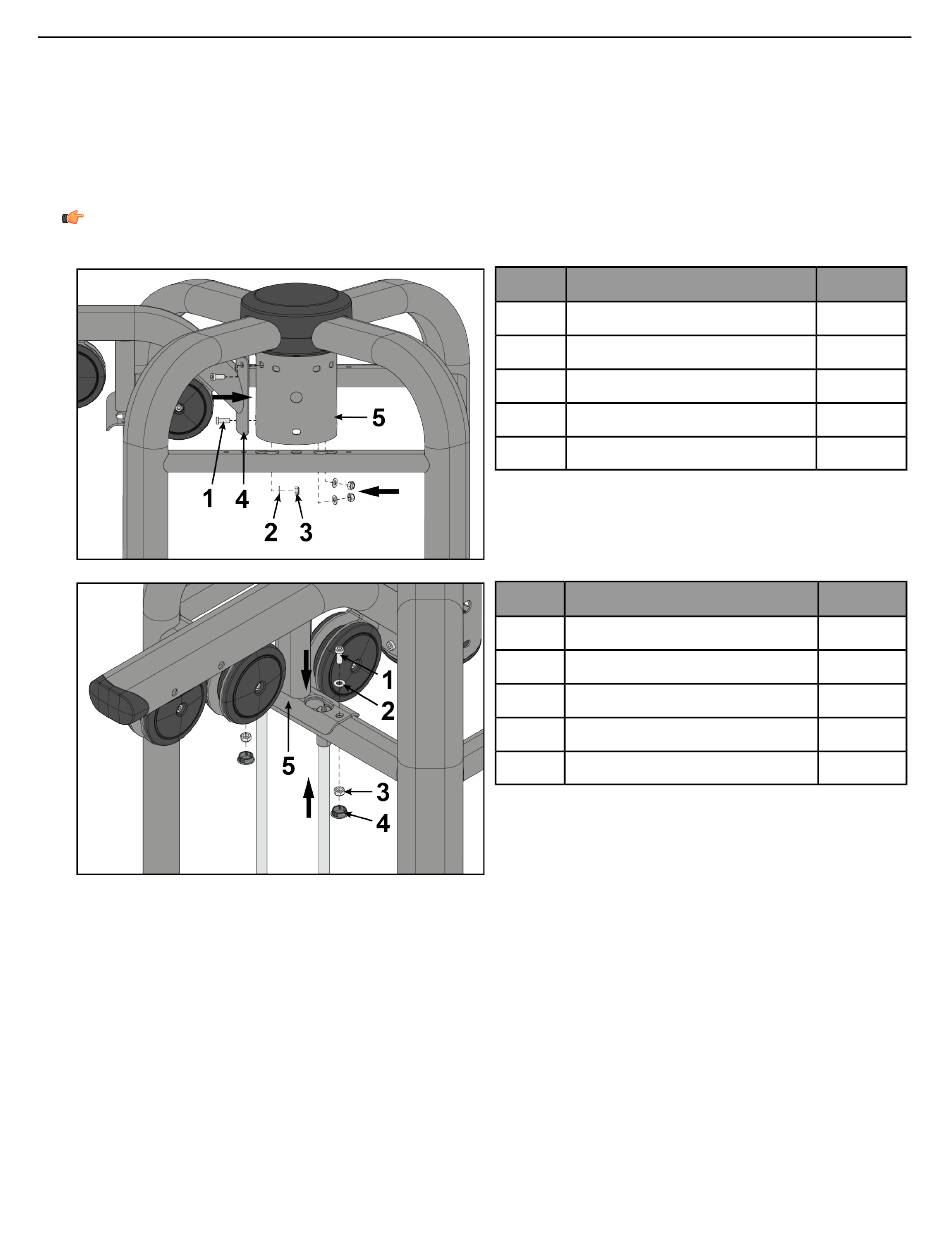

The following procedure shows how to install the top mounts to the CORE for the following products: PP-AP,
PP-AP41, PP-AXO, PP-ACOFS, PP-ACO, PP-ADC, PP-FCO, PP-FXO, PP-HL, PP-LP, PP-LPD, PP-RP, PP-RPL, PP-RWD,
PP-RW, and PP-TP.
Tools Required:
• 7 mm Allen wrench
• 17 mm Open end wrench
• Torque wrench
Note: All screws must be torqued to 25-30 FT-LBS. (27.1-33.9Nm).
1.
2.
1 Screw, M10 x 1.5, 25 mm
2
3
4
5
1 Screw, M10 x 1.5, 25 mm
2
3
4
5
Page 12 of 54
Description
Washer
Nut, hex nylock
Top mount
Core
Description
Washer
Nut, hex nylock
Hole plug
Top mount
Qty
3
3
3
1
1
Qty
2
2
2
2
1
