Cabling Procedure - CYBEX PP-ACO Assembly Manual

Cabling Procedure

Direct Link

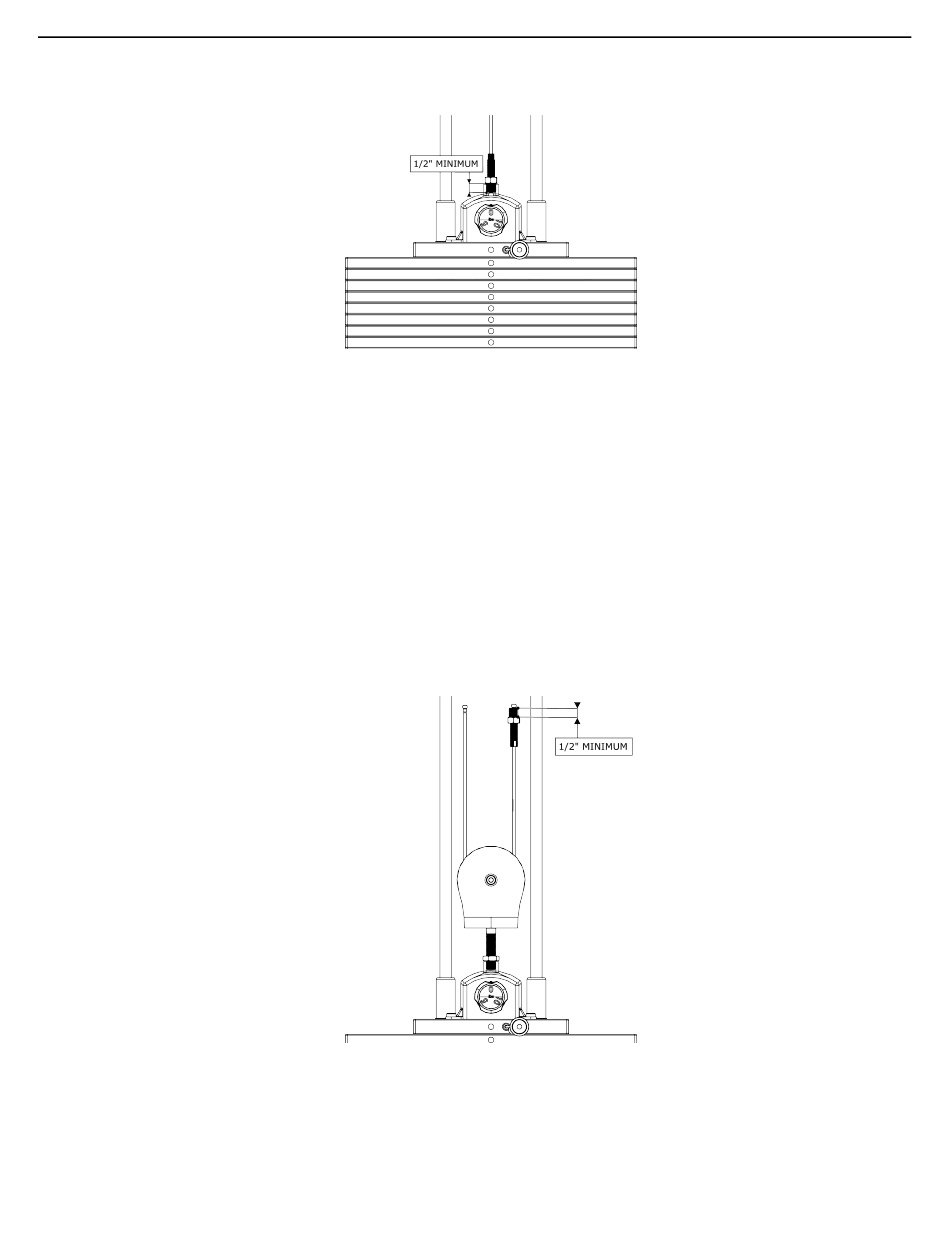

1. Thread the cable into the head plate assembly at least to the jam nut.
2. Cycle the machine to ensure that it is in proper working order.
3. Check the cable to ensure there is proper tension.
4. Tighten jam nut to 20-25 FT-LBS (27.2 - 34.0 Nm).
Floating Pulley
1. Measure the threaded end of the floating pulley and cable.
2. Screw the jam nuts onto the end of the thread on the floating pulley and cable.
3. Thread the floating pulley into the head plate assembly at least 1/2 inch (12.7mm).
4. Thread the cable into the frame anchor position.
5. Measure the exposed threads to verify that at least 1/2 inch (12.7mm) is screwed into the head plate assembly
and frame anchor.
6. Cycle the machine to ensure that it is in proper working order.
7. Check the cable to ensure there is proper tension.
8. Tighten the jam nut toward the head plate assembly and frame anchor.
Page 46 of 54
