Install Crossover

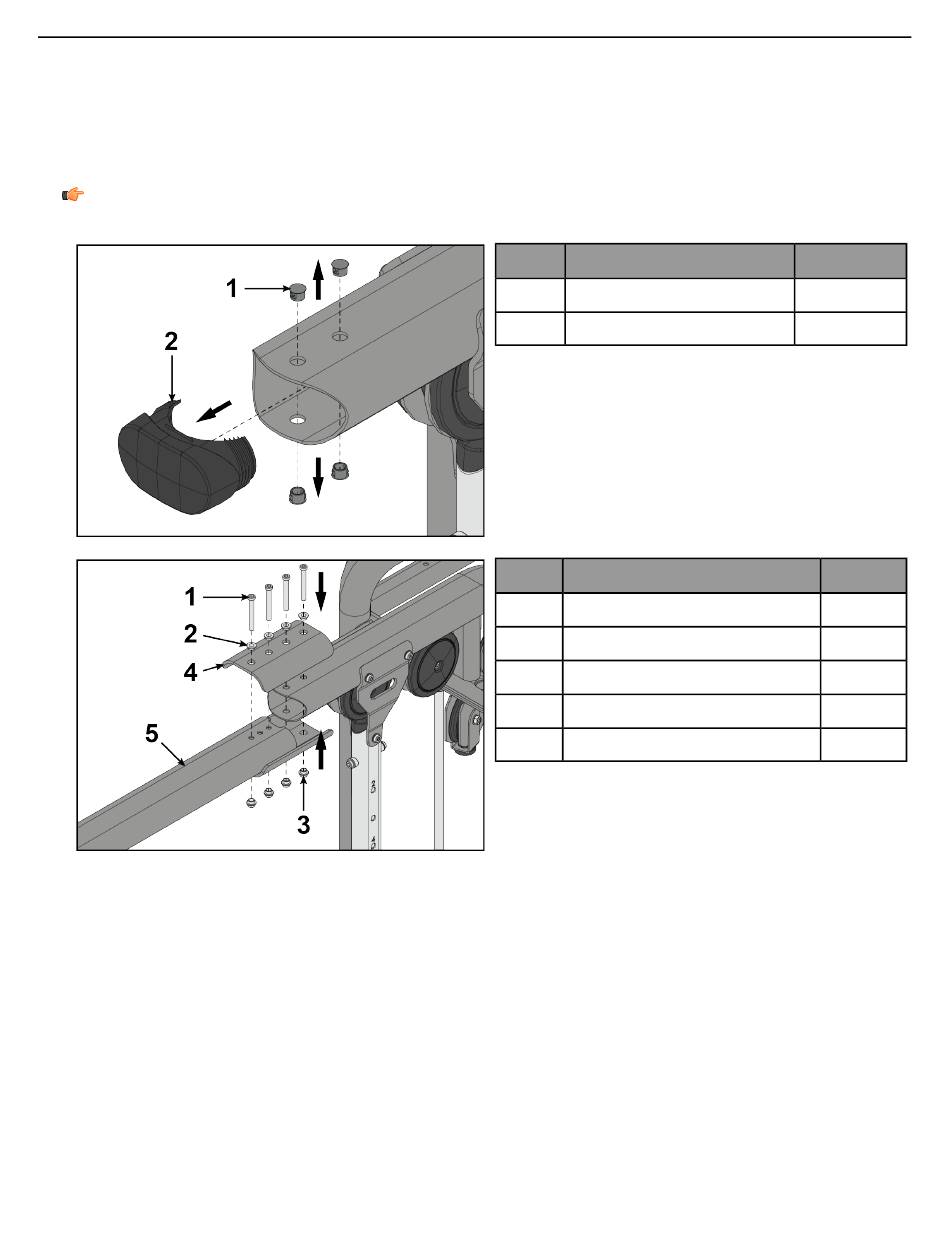

The following procedure shows how to install the crossover to the top mount for the following products: PP-ACO,
PP-ACOFS, PP-AXO, PP-BM, PP-FCO, PP-FXO.
Tools Required:
• Flat head screwdriver
• 7 mm Allen wrench (x2)
• Torque wrench
Note: All screws must be torqued to 25-30 FT-LBS. (27.1-33.9Nm).
1.
2.
1
2
1 Screw, M10 x 1.5, 80 mm
2
3 Nut, M10 x 1.5 socket head
4
5
Page 23 of 54
Description
Hole plug
Cap
Description
Washer
Bracket
Crossover
Qty
4
1
Qty
4
4
4
1
1
