Note

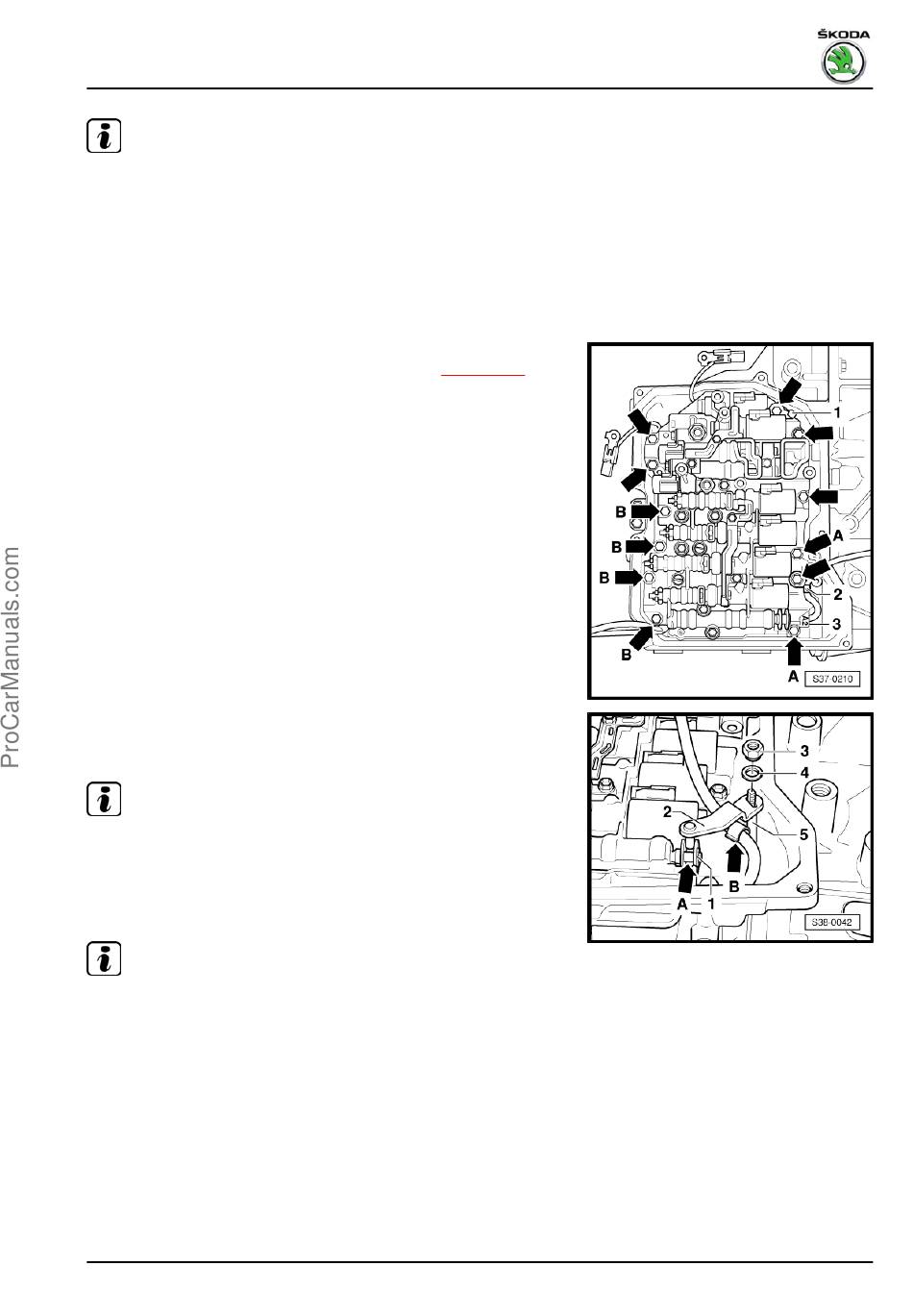

If the cable -3- (for gearbox input rpm sender - G182- ) is too
♦
short, in order to screw the plug connection -2- on the provided
point onto the slide valve body, it was wrongly routed or trap‐
ped by the slide valve body, then the slide valve body must be
removed again and the cable must be correctly routed.
Trapped cables must be replaced ⇒ Electronic Catalogue of
♦
Original Parts .
– Make sure that no cables are in fact trapped.
– After this, tighten the screws -arrows- for the slide valve body
from the outside to the inside to a final torque
– Hang the wiring loom in the bracket -B-.
– Position the gearshift lever -2- on the gearshift shaft -5-.
Note
Make sure that the pin of the gearshift lever -2- engages in the
slide valve -1- -arrow A-. If necessary the slide valve must be
moved accordingly out or into the slide valve body.
– Fit washer -4- and nut -3- onto the gearshift shaft.
Note
The centering collar of the nut must point to the washer and
♦
when screwing on catch in the washer.
The wiring loom must be routed below the gearshift lever.
♦
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
⇒ page 180
1. Removing and installing oil pan, oil filter, slide valve body and internal wiring looms
Gearbox 09G - Edition 07.2014
.
177
