2.2.1 Install the Optional Rear-Mounting Support Brackets Kit

Use the follwing tools to install the KT/6228-2 (4") or KT/6228-3 (10") Rear-Mounting
Support Brackets Kit (
•
A medium Phillips screwdriver
•
A 5/32-inch SAE Allen Wrench
•
An adjustable Crescent wrench.
Detail
1
2
Item
1
2
3
4
5
6

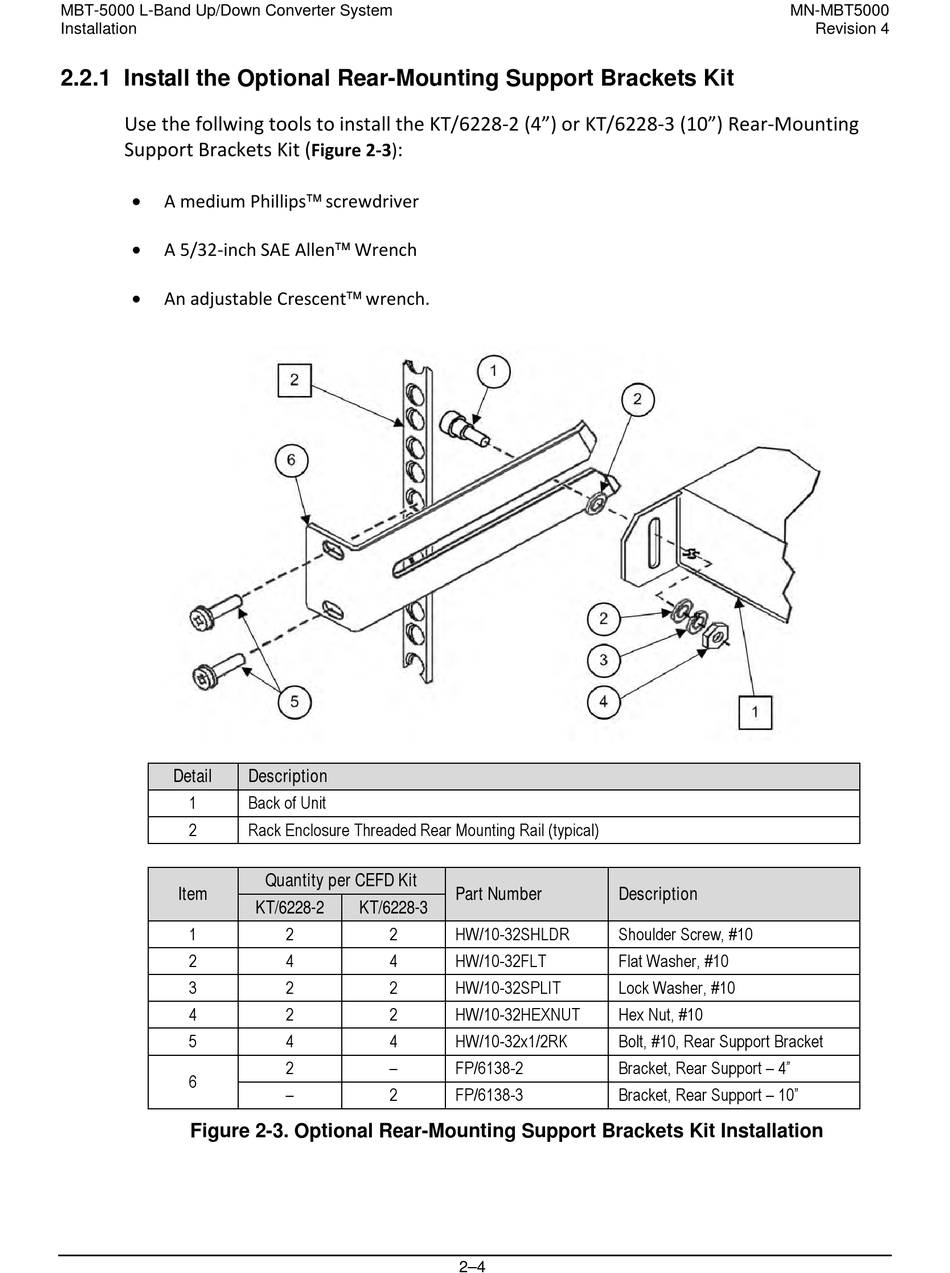

Figure 2-3. Optional Rear-Mounting Support Brackets Kit Installation

:
Figure 2-3)
Description
Back of Unit
Rack Enclosure Threaded Rear Mounting Rail (typical)
Quantity per CEFD Kit
KT/6228-2 KT/6228-3
2 2
4 4
2 2
2 2
4 4
2 –
– 2
Part Number Description
HW/10-32SHLDR Shoulder Screw, #10
HW/10-32FLT Flat Washer, #10
HW/10-32SPLIT Lock Washer, #10
HW/10-32HEXNUT Hex Nut, #10
HW/10-32x1/2RK Bolt, #10, Rear Support Bracket
FP/6138-2 Bracket, Rear Support – 4"
FP/6138-3 Bracket, Rear Support – 10"
