MBT-5000 L-Band Up/Down Converter System
Appendix A
A.2

Module Removal Procedure

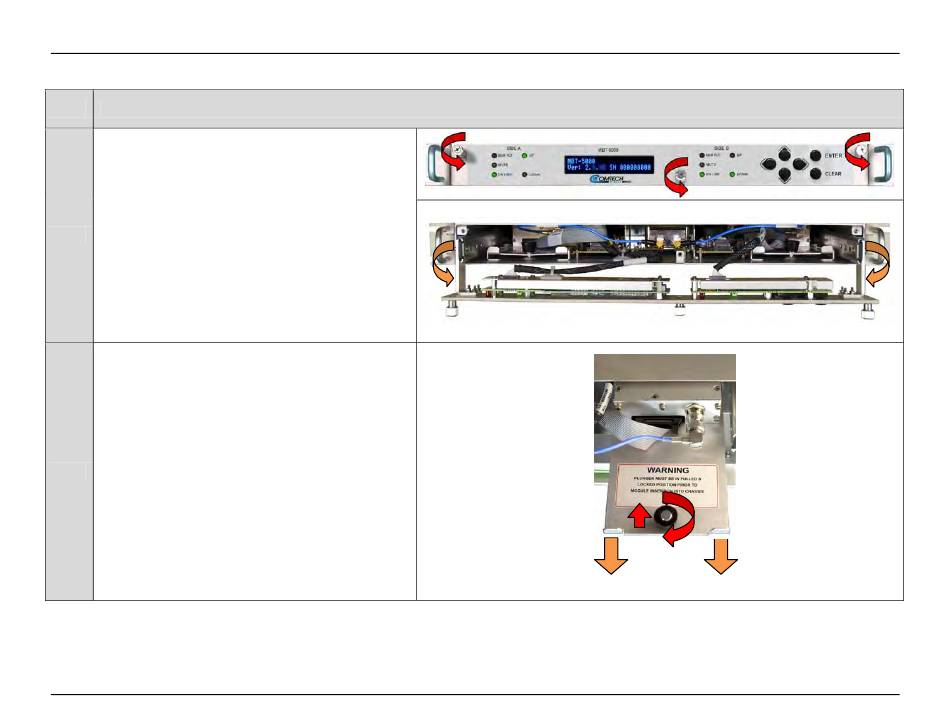

Step Task
Access the modules:
Loosen the three front panel thumb screws.
1
Then, drop the front panel to access both module
bays.
Remove the module:
First, lift the module plunger pin by turning it
2 clockwise to lock it into removal position.
Then, use the thumb tabs to slide the module
outward to gain access to the front connectors.
