LBC-4000 L-Band Up/Down Converter System
Installation

2.2.1 Installing the Optional Rear-Mounting Support Brackets Kit

Feature Description
1
2
Item
KT/6228‐2
1
2
3
4
5
6

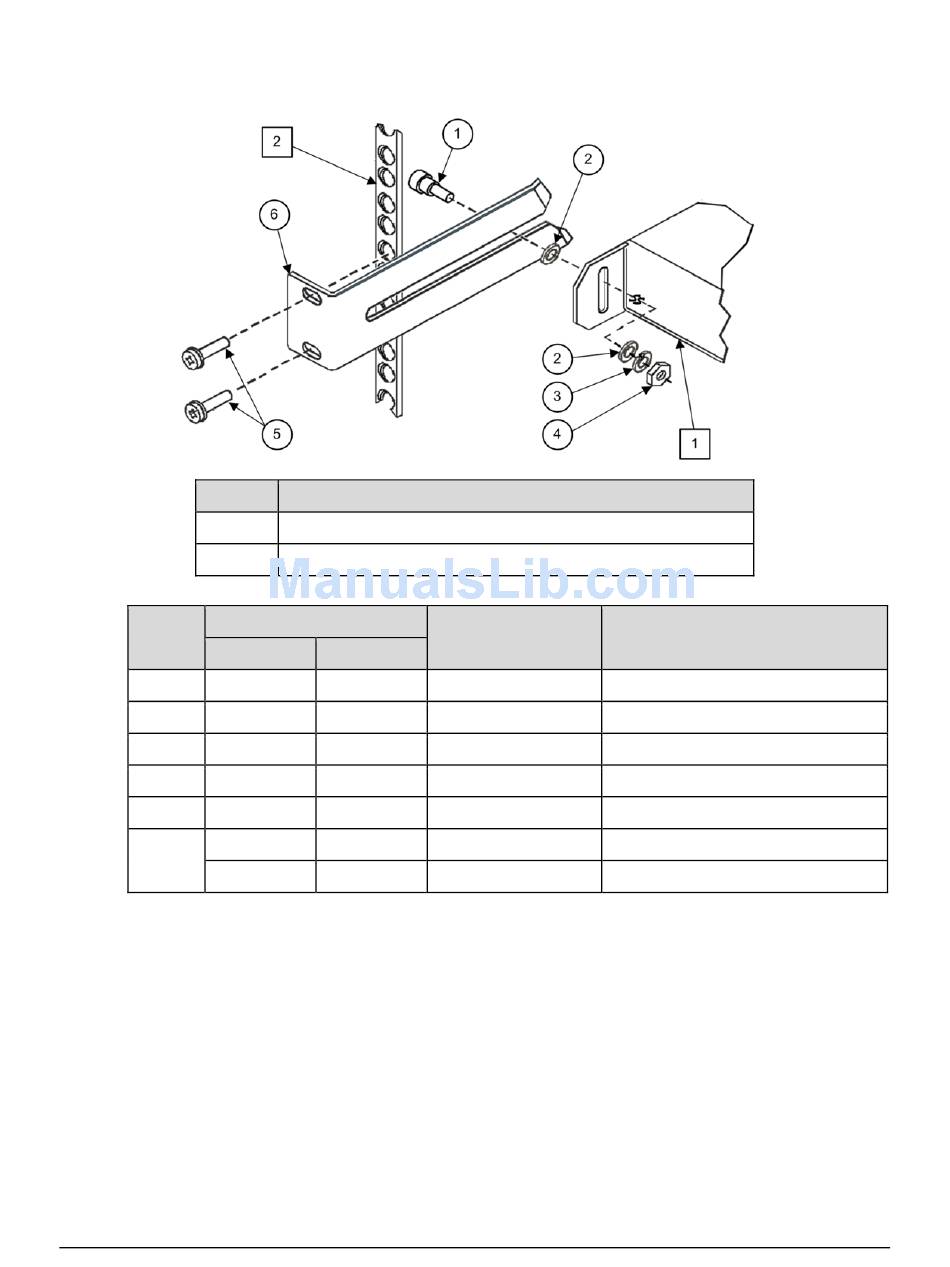

Figure 2-3. Installing the Optional Rear-Mounting Support Brackets Kit

Tools needed to install the KT/6228‐2 (4") or KT/6228‐3 (10") Bracket Kit (
•
A medium Phillips™ screwdriver
•
A 5/32‐inch SAE Allen™ Wrench
•
An adjustable Crescent™ wrench.
Back of Unit
Rack Enclosure Threaded Rear Mounting Rail (typical)
Kit / Quantity
KT/6228‐3
2 2
4 4
2 2
2 2
4 4
2 –
– 2
Part Number Description
HW/10‐32SHLDR Shoulder Screw, #10
HW/10‐32FLT Flat Washer, #10
HW/10‐32SPLIT Lock Washer, #10
HW/10‐32HEXNUT Hex Nut, #10
HW/10‐32x1/2RK Bolt, #10, Rear Support Bracket
FP/6138‐2 Bracket, Rear Support – 4"
FP/6138‐3 Bracket, Rear Support – 10"
2–4
Revision 4
MN-LBC4000A
):
