2. Connect one end of an HDMI cable to the HDMI Input port on the Pano system monitor.
3. Connect the other end of the HDMI cable to an HDMI Output port on the Polycom video system.
4. Connect one end of an HDMI cable to the HDMI Input port on the Polycom video system.

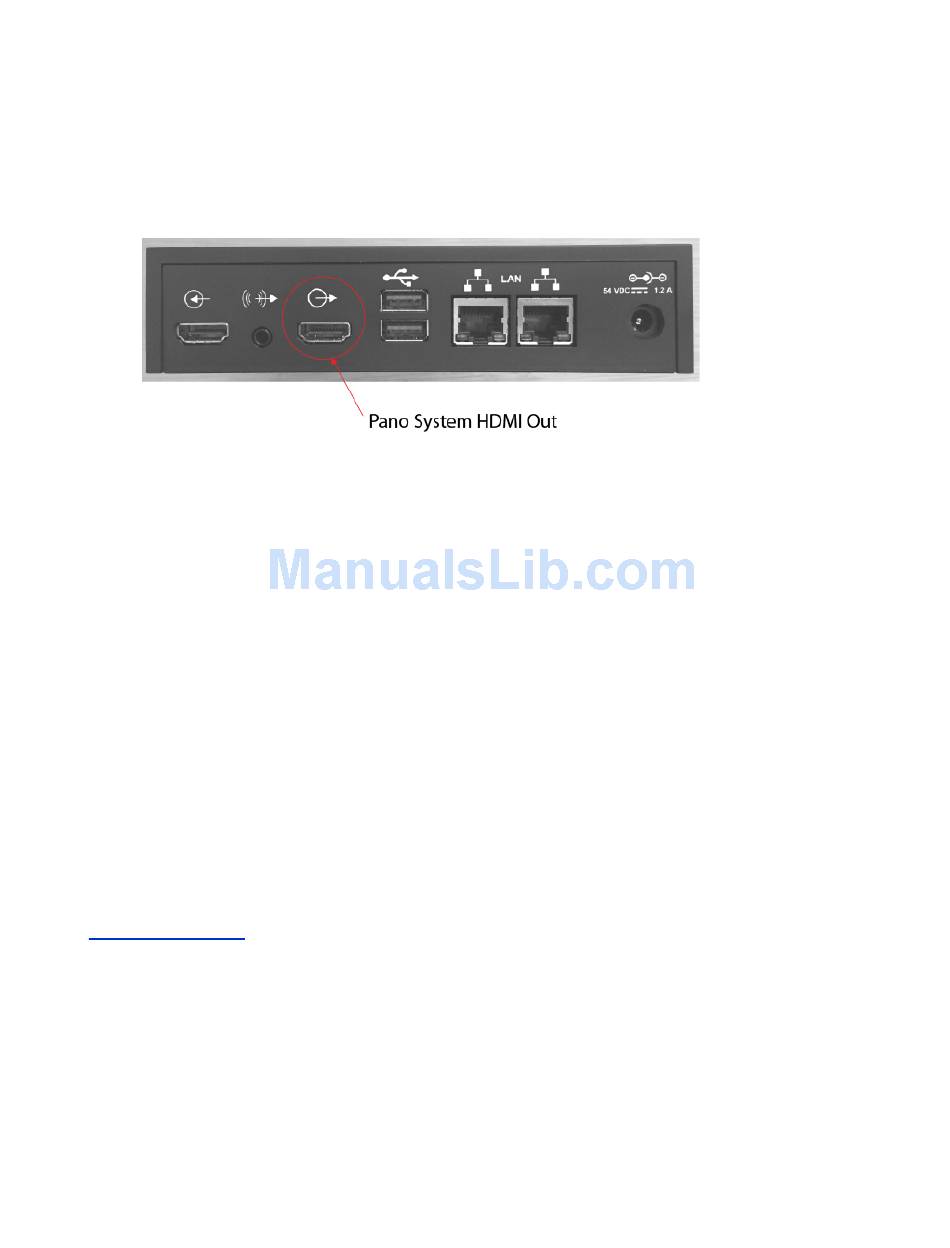

5. Connect the other end of the HDMI cable to the HDMI Output port on the Pano system, as shown
in the following figure:
6. Configure your monitor profiles for your Polycom video system monitor:
a. Open a browser and enter the IP address of the Polycom video system.
b. Go to Admin Settings > Audio/Video > Monitors.
c. For Monitor 1 at Monitor Profile, select Far, then Near.
d. For Monitor 2 at Monitor Profile, select Content, then Far.
The Pano system starts presenting content on the Polycom video system once the setup is
complete. You must continue with the following steps to pair the systems and complete the setup.
7. Open a browser and enter the IP address of the Pano system.
8. Go to General Settings > Pairing.
9. Enter the IP Address, Admin User Name, and Admin User Password that are associated with
the Polycom video system. (If no password is set, leave the password field blank.)
10. Select Connect, then select Pair.
The Pair button displays only when the connection in the previous step is successful.
11. Optional: Modify the Pano system name, then select Update.
12. Test that content sharing functions properly.
Related Links
Test Content Sharing on page 74

HDMI Splitter Setup

With an HDMI splitter, you can connect a Pano system to a Polycom video system using two monitors.
Remember the following with this setup:
▪ Monitor 1 shows far and near video.
▪ Monitor 2 shows near and far content (only if the Pano system is in a session).
