Page 1 ® BrightLink 675Wi+/685Wi+/695Wi+ User's Guide...
Page 3: Table Of Contents
Contents BrightLink 675Wi+/685Wi+/695Wi+ User's Guide ................... 11 Introduction to Your Projector ......................... 12 Projector Features..........................12 Product Box Contents........................14 Additional Components ........................ 17 Additional Projector Software and Manuals ................... 17 Optional Equipment and Replacement Parts................. 18 Warranty Information ........................19 Notations Used in the Documentation ....................
Page 4 Connecting to a Computer for Sound..................42 Connecting to Video Sources ......................43 Connecting to an HDMI Video Source ..................43 Connecting to an MHL-Compatible Device ................44 Connecting to a Component Video Source ................45 Connecting to a Composite Video Source ................46 Connecting to a Video Source for Sound ..................
Page 5 Network Projector E-mail Alert Messages ..................80 Setting Up Monitoring Using SNMP ....................80 Controlling a Networked Projector Using a Web Browser ..............82 Crestron RoomView Support......................85 Setting Up Crestron RoomView Support ..................85 Controlling a Networked Projector Using Crestron RoomView ............86 Using Basic Projector Features .......................
Page 6 Supported PC Free File Types ....................116 Starting a PC Free Slide Show ....................117 Starting a PC Free Movie Presentation ..................118 PC Free Display Options ......................120 Adjusting Projector Features ......................... 122 Projecting Two Images Simultaneously.................... 123 Input Sources for Split Screen Projection ..................125 Using Multiple Projectors (DuoLink) ....................
Page 7 Using the Interactive Features ....................... 156 Interactive Modes..........................156 Using the Projected Screen as a Whiteboard (Built-in Whiteboard Mode)........157 Drawing on a Projected Image (Built-in Annotation Mode) ............158 Controlling Computer Features from a Projected Screen (PC Interactive Mode)......160 PC Interactive Mode System Requirements ................
Page 8 Adjusting the Menu Settings ........................204 Using the Projector's Menus......................204 Image Quality Settings - Image Menu ....................206 Input Signal Settings - Signal Menu....................208 Projector Feature Settings - Settings Menu..................211 Projector Setup Settings - Extended Menu..................215 Projector Network Settings - Network Menu..................
Page 9 Solutions When "No Signal" Message Appears................267 Displaying From a PC Laptop ....................268 Displaying From a Mac Laptop ....................268 Solutions When "Not Supported" Message Appears ..............269 Solutions When Only a Partial Image Appears ................269 Solutions When the Image is Not Rectangular ................270 Solutions When the Image Contains Noise or Static ..............
Page 10 Projector Environmental Specifications.................... 289 Projector Safety and Approvals Specifications................. 290 Supported Video Display Formats....................290 USB Display System Requirements ....................292 Notices ..............................294 Important Safety Information ......................294 Important Safety Instructions......................294 Restriction of Use ........................298 List of Safety Symbols (corresponding to IEC60950-1 A2)............... 298 FCC Compliance Statement......................
Page 11: Brightlink 675Wi+/685Wi+/695Wi+ User's Guide
DCMS/Publications/Projectors/Source/Home_Space_Topics/bl685wi_695wi_plus_home_space_topic.xml BrightLink 675Wi+/685Wi+/695Wi+ User's Guide Welcome to the BrightLink 675Wi+/685Wi+/695Wi+ User's Guide. For a printable PDF copy of this guide, click here.
Page 12: Introduction To Your Projector
DCMS/Publications/Projectors/Source/Product_Info/Container_Topics/introduction_container.xml Introduction to Your Projector Refer to these sections to learn more about your projector and this manual. Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations DCMS/Publications/Projectors/Source/Product_Info/Concepts/projector_features_bl685wi_695wi_plus.xml Projector Features The BrightLink 675Wi+/685Wi+/695Wi+ projectors include these special features: Unique interactive functions •...
Page 13 • Dual VGA ports for connections by multiple presenters • Port for connecting an external monitor • Port for connecting a microphone • Projection from iOS or Android devices with the wireless LAN module and free Epson iProjection app; visit webs.latin.epson.com/iProjection...
Page 14: Product Box Contents
Related concepts Projector Part Locations DCMS/Publications/Projectors/Source/Product_Info/Reference/PL670_BL695Wi/product_box_contents_bl685wi_695 wi.xml Product Box Contents Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.
Page 15 Make sure your projector boxes included all of these parts: /DCMS/Publications/Projectors/Source/Images/Parts/PL670_BL695Wi/proj_box_contents_bl685wi_bl695wi_p lus.jpg...
Page 16 Projector Remote control Remote control batteries (two AA alkaline) Pens, replacement pen tips (two hard tips and four soft tips), and batteries (one AA alkaline battery for each pen) Pen tray USB cable Power cord Touch Unit connection cable (BrightLink 695Wi+) Password Protected sticker Projector manuals and software download links CD Projector software for Easy Interactive Function CD...
Page 17: Additional Components
This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options. Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.
Page 18: Optional Equipment And Replacement Parts
Optional Equipment and Replacement Parts You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, go to epson.com.jm. Or you can contact your nearest sales office as described in "Where to Get Help".
Page 19: Warranty Information
Note: Availability of accessories varies by country. Epson offers the following optional accessories and replacement parts for your projector: Option or part Part number Genuine Epson replacement lamp (ELPLP91) V13H010L91 Replacement air filter (ELPAF49) V13H134A49 Wireless LAN module (ELPAP10) V12H731P02...
Page 20: Where To Go For Additional Information
• epson.com.jm/support View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day. • If you still need help after checking this manual and any other sources listed here, see "Where to Get Help".
Page 21: Projector Parts - Front/Top
DCMS/Publications/Projectors/Source/Product_Info/Reference/PL670_BL695Wi/projector_parts_front_top_pl670_bl6 95wi.xml Projector Parts - Front/Top Remote control receiver Speaker Control panel Cable cover Exhaust vent Lamp screws Lamp cover screw Lamp cover Parent topic: Projector Part Locations...
Page 22: Projector Parts - Side
DCMS/Publications/Projectors/Source/Product_Info/Reference/PL670_BL695Wi/projector_parts_side_pl670_685W.xm Projector Parts - Side /DCMS/Publications/Projectors/Source/Images/Parts/PL670_BL695Wi/proj_top_side_bl695w.jpg Air filter cover switch Wireless LAN light Interactive pen receiver Obstacle sensors Remote receiver Projection window Security lock port Air filter cover Air intake vents (air filter) Focus lever...
Page 23: Projector Parts - Interface Panel
Parent topic: Projector Part Locations DCMS/Publications/Projectors/Source/Product_Info/Reference/PL670_BL695Wi/projector_parts_interface_pl670_bl69 5wi.xml Projector Parts - Interface Panel /DCMS/Publications/Projectors/Source/Images/Parts/PL670_BL695Wi/proj_interface_bl695wi.jpg Optional wireless LAN module slot Audio1 port Computer1 port Audio2 port USB-B port Network (LAN) port HDMI 1/MHL port Monitor Out/Computer2 port HDMI 2 port HDMI 3 port RS-232C port...
Page 24 SYNC In/Out ports Power inlet Touch unit (TCH) port (BrightLink 695Wi+) USB-A port Video port Audio port Audio Out port Mic (microphone) port Parent topic: Projector Part Locations Related references Projector Light Status...
Page 25: Projector Parts - Base
DCMS/Publications/Projectors/Source/Product_Info/Reference/PL670_BL695Wi/projector_parts_bottom_pl670_bl695 wi.xml Projector Parts - Base Ceiling mount holes (5) Security cable attachment point Rear foot holes Wall mount plate holes (4) Illumination sensor Front foot hole Parent topic: Projector Part Locations...
Page 26: Projector Parts - Control Panel
DCMS/Publications/Projectors/Source/Product_Info/Reference/PL670_BL695Wi/projector_parts_control_panel_pl670 _bl695wi.xml Projector Parts - Control Panel /DCMS/Publications/Projectors/Source/Images/Parts/PL670_BL695Wi/control_panel_pl685w_bl695wi.jpg Source Search button (searches for connected video sources) Enter button (selects options) Horizontal/Vertical keystone adjustment buttons (display the adjustment screen and adjust screen shape) and arrow buttons Esc button (cancels/exits functions) W/T buttons (Wide/Tele; adjust projected image size) and arrow buttons Menu button (accesses projector menu system) Home button (displays home screen) Power button...
Page 27: Projector Parts - Interactive Pens And Pen Tray
DCMS/Publications/Projectors/Source/Product_Info/Reference/BL696Ui/projector_parts_pen_bl696ui.xml Projector Parts - Interactive Pens and Pen Tray /DCMS/Publications/Projectors/Source/Images/Interactive/BL695Wi_696Ui/pen_parts_bl695wi.jpg Pen tip Battery light Function button Attachment for optional strap or cord...
Page 28 Battery cover /DCMS/Publications/Projectors/Source/Images/Parts/BL575Wi_585Wi_595Wi/parts_interactive_pen_tray_bl5 75wi_bl595wi.jpg Installation magnets Mounting holes Security lock hole Parent topic: Projector Part Locations...
Page 29: Projector Parts - Remote Control
DCMS/Publications/Projectors/Source/Product_Info/Reference/PL670_BL695Wi/projector_parts_remote_pl670_bl695 wi.xml Projector Parts - Remote Control /DCMS/Publications/Projectors/Source/Images/Parts/PL670_BL695Wi/projector_parts_remote_bl695wi.jpg...
Page 30 Power button Computer button (cycles through connected computer sources) HDMI/Video button (cycles through connected HDMI/video sources) Numeric buttons (enter numbers) Auto button (automatically adjusts position, tracking, and sync settings) Aspect button (selects the image aspect ratio) Num button (when held down, switches numeric buttons to number function) Menu button (accesses projector menu system) Arrow buttons (move through on-screen options and control wireless mouse functions) Enter button (selects options and controls wireless mouse functions)
Page 31: Projector Parts - Touch Unit
Source Search button (searches for connected sources) Parent topic: Projector Part Locations DCMS/Publications/Projectors/Source/Product_Info/Reference/BL696Ui/projector_parts_touch_unit_bl696ui.xml Projector Parts - Touch Unit The Touch Unit comes with the BrightLink 695Wi+ projector only. Front (Cover On) /DCMS/Publications/Projectors/Source/Images/Parts/BL696Ui/parts_touch_unit_bl695wi.jpg Front (Cover Off) /DCMS/Publications/Projectors/Source/Images/Parts/BL696Ui/parts_touch_unit_remove_cover_bl695wi.jpg Dial cover Touch unit (TCH) port Security cable installation slot...
Page 32 Adjustment dials Power light Mounting holes Rear /DCMS/Publications/Projectors/Source/Images/Parts/BL696Ui/parts_touch_unit_back_bl695wi.jpg Laser diffusion ports Installation magnets Parent topic: Projector Part Locations...
Page 33: Setting Up The Projector
DCMS/Publications/Projectors/Source/Setup/Container_Topics/setup_container.xml Setting Up the Projector Follow the instructions in these sections to set up your projector for use. Projector Placement Removing and Attaching the Cable Cover Projector Connections Installing Batteries in the Remote Control Installing Batteries in the Pens DCMS/Publications/Projectors/Source/Setup/Concepts/projector_placement_wall_short_throw.xml Projector Placement Your ultra-short throw projector is designed to be installed on a wall (with a wall mount) or vertically on a table (with a table mount) to create an interactive tabletop workspace.
Page 34: Projector Setup And Installation Options
Parent topic: Setting Up the Projector DCMS/Publications/Projectors/Source/Setup/Reference/projector_setup_install_wall_ust.xml Projector Setup and Installation Options You can set up or install your projector in the following ways: Mounted on the wall or ceiling /DCMS/Publications/Projectors/Source/Images/Setup/PL470_BL485wi/place_proj_wall_pl470_bl485wi.jpg Mounted vertically on a table to create an interactive workspace /DCMS/Publications/Projectors/Source/Images/Setup/PL470_BL485wi/place_proj_table_bl475wi_485wi.jpg...
Page 35: Projection Distance
Front projection from a table or portable cart (BrightLink 675Wi+/685Wi+) /DCMS/Publications/Projectors/Source/Images/Setup/PL470_BL485wi/place_proj_front_pl470_bl485wi.jpg Wherever you set up the projector, make sure to position it squarely in front of the screen, not at an angle. If you project from a table or portable cart, be sure to select the correct Projection option in the projector's menu system.
Page 36 1. Use a screwdriver to remove both of the cable cover screws. 2. Slide off the cable cover. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/cable_cover_remove_scre w_bl695wi.jpg...
Page 37: Projector Connections
To attach the cable cover, slide it into position and tighten the screws with a screwdriver. Parent topic: Setting Up the Projector DCMS/Publications/Projectors/Source/Setup/Concepts/projector_connections_intro.xml Projector Connections See these sections to connect the projector to a variety of projection sources. Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.
Page 38: Connecting To A Computer For Usb Video And Audio
3. Connect the other end to any available USB port on your computer. 4. To use USB Display, do one of the following: • Windows 10/Windows 8.x: Click EPSON_PJ_UD in the upper right-corner, then select Run EMP_UDSE.exe in the dialog box that appears to install the Epson USB Display software.
Page 39: Connecting To A Computer For Vga Video
• Mac: The USB Display setup folder appears on your screen. Select USB Display Installer and follow the on-screen instructions to install the Epson USB Display software. Follow any on-screen instructions. You need to install this software only the first time you connect the projector to the computer.
Page 40: Connecting To A Computer For Hdmi Video And Audio
3. Connect the other end to a Computer port on the projector. Note: If you choose the Computer2 port, you may need to change the Monitor Out Port setting in the projector's Extended menu. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_computer_vga_bl 695wi.jpg 4. Tighten the screws on the VGA connector. Parent topic: Connecting to Computer Sources DCMS/Publications/Projectors/Source/Setup/Tasks/connecting_computer_hdmi.xml...
Page 41: Connecting To A Computer For Usb Mouse Control
2. Connect the other end to one of the projector's HDMI ports. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_computer_hdmi_b l695wi.jpg Note: The projector converts the digital audio signal sent from your computer into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers. Parent topic: Connecting to Computer Sources DCMS/Publications/Projectors/Source/Setup/Tasks/connecting_computer_usb_mouse_all_ports.xml...
Page 42: Connecting To A Computer For Sound
2. Connect the USB cable to your projector's USB-B port. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_computer_usb_bl 695wi.jpg 3. Connect the other end to any available USB port on your computer. 4. If necessary, configure your computer to work with an external USB mouse. See your computer documentation for details.
Page 43: Connecting To Video Sources
2. Connect the other end to the Audio port that corresponds to the Computer port you are using. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_computer_audio_ bl695wi.jpg Parent topic: Connecting to Computer Sources DCMS/Publications/Projectors/Source/Setup/Container_Topics/connect_video_container.xml Connecting to Video Sources Follow the instructions in these sections to connect video devices to the projector. Connecting to an HDMI Video Source Connecting to an MHL-Compatible Device Connecting to a Component Video Source...
Page 44: Connecting To An Mhl-Compatible Device
2. Connect the other end to one of the projector's HDMI ports. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_video_hdmi_bl695 wi.jpg Note: The projector converts the digital audio signal sent from your video source into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers. Parent topic: Connecting to Video Sources DCMS/Publications/Projectors/Source/Setup/Tasks/connecting_video_mhl.xml...
Page 45: Connecting To A Component Video Source
3. Connect the other end of the cable to the projector's HDMI 1/MHL port. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_video_mhl_bl695 wi.jpg Note: The projector converts the digital audio signal sent from your video source into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers. Parent topic: Connecting to Video Sources DCMS/Publications/Projectors/Source/Setup/Tasks/connecting_video_component_vga.xml...
Page 46: Connecting To A Composite Video Source
2. Connect the VGA connector to a Computer port on the projector. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_video_component _bl695wi.jpg Note: If you choose the Computer2 port, you may need to change the Monitor Out Port setting in the projector's Extended menu. 3. Tighten the screws on the VGA connector. If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu.
Page 47: Connecting To A Video Source For Sound
2. Connect the other end to the projector's Video port. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_video_composite_ bl685w.jpg Parent topic: Connecting to Video Sources DCMS/Publications/Projectors/Source/Setup/Tasks/connecting_video_sound_stereo_mini.xml Connecting to a Video Source for Sound You can play sound through the projector's speaker system if your video source has audio output ports. If you are projecting video using the Video or a Computer port, connect the projector to the video source using an optional stereo mini-jack audio cable.
Page 48: Connecting To An External Computer Monitor
2. Connect the other end of the cable to the projector's Audio port that corresponds to the port you are using for video. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_video_audio_bl69 5wi.jpg Parent topic: Connecting to Video Sources DCMS/Publications/Projectors/Source/Setup/Tasks/connecting_ext_monitor.xml Connecting to an External Computer Monitor If you connected a computer to the projector's Computer port, you can also connect an external monitor to the projector.
Page 49: Connecting To External Speakers
2. Connect the external monitor's cable to your projector's Monitor Out/Computer 2 port. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_external_monitor_ bl695wi.jpg Note: You may need to change the Monitor Out Port setting in the projector's Extended menu and restart the computer. Note: Content you draw using the interactive features is not displayed on an external monitor unless you draw it using Easy Interactive Tools.
Page 50: Connecting A Microphone
2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin- jack cable, or another type of cable or adapter. 3. Connect one end of the cable to your external speakers as necessary. 4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_external_speaker s_bl695wi.jpg Parent topic:...
Page 51: Connecting To External Usb Devices
1. Connect the microphone cable to the projector's Mic port. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_microphone_bl69 5wi.jpg 2. Turn on the microphone, if necessary. 3. If you hear a crackling noise or the volume is too high or low, adjust the Mic Input Level setting in the Settings menu.
Page 52: Usb Device Projection
DCMS/Publications/Projectors/Source/PCFree/Concepts/usb_projection_device.xml USB Device Projection You can project images and other content without using a computer or video device by connecting any of these devices to your projector: • USB flash drive • Digital camera or smartphone • USB hard drive •...
Page 53: Selecting The Connected Usb Source
2. Connect the USB cable (or USB flash drive or USB memory card reader) to the projector's USB-A port. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_usb_external_bl6 95wi.jpg Note: Do not connect a USB hub or a USB cable longer than 10 feet (3 m), or the device may not operate correctly.
Page 54: Connecting To A Document Camera
Depending on your Epson document camera model, do one of the following to connect the document camera to your projector: • For the Epson DC-21 document camera, connect it to the projector's HDMI, Computer, or Video port and to the corresponding port on the document camera. See the document camera manual for details.
Page 55: Connecting Multiple Projectors Of The Same Model
DCMS/Publications/Projectors/Source/Setup/Tasks/connecting_multiple_projectors.xml Connecting Multiple Projectors of the Same Model If you use the interactive features of multiple projectors of the same model in the same room, you need to synchronize the projectors. To do this, connect a stereo mini cable to the SYNC port on each projector.
Page 56: Installing Batteries In The Remote Control
Parent topic: Projector Connections DCMS/Publications/Projectors/Source/Setup/Tasks/installing_remote_batteries_typeab.xml Installing Batteries in the Remote Control The remote control uses the two AA batteries that came with the projector. Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.
Page 57 2. Insert the batteries with the + and – ends facing as shown. /DCMS/Publications/Projectors/Source/Images/Remote_Controls/TypeAB/battery_insertion_ex7230_plw2 8p.jpg 3. Replace the battery cover and press it down until it clicks into place. /DCMS/Publications/Projectors/Source/Images/Setup/battery_cover_close_typeab.jpg Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame.
Page 58: Installing Batteries In The Pens
DCMS/Publications/Projectors/Source/Setup/Tasks/installing_pen_batteries_bl685wi_blp1460ui.xml Installing Batteries in the Pens Each pen uses one AA battery. 1. Remove the battery cover as shown. /DCMS/Publications/Projectors/Source/Images/Setup/BL696Ui/pen_cover_open_bl695wi.jpg 2. Insert the battery with the + and – ends facing as shown. /DCMS/Publications/Projectors/Source/Images/Setup/BL696Ui/pen_battery_install_bl695wi.jpg...
Page 59 3. Replace the battery cover and press it down until it clicks into place. /DCMS/Publications/Projectors/Source/Images/Setup/BL696Ui/pen_cover_close_bl695wi.jpg Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.
Page 60: Using The Projector On A Network
Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software. Connecting to a Wired Network...
Page 61: Selecting Wired Network Settings
1. Connect one end of the network cable to your network hub, switch, or router. 2. Connect the other end of the cable to the projector's LAN port. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_lan_bl695wi.jpg Parent topic: Wired Network Projection DCMS/Publications/Projectors/Source/Network/Tasks/selecting_wired_network_settings.xml Selecting Wired Network Settings Before you can project from computers on your network, you must select the network settings for the projector using its menu system.
Page 62 3. Select the Network menu and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL695Wi/menu_network_bl695wi.jpg 4. Select Network Configuration and press Enter. 5. Select the Basic menu and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_network_basic_pl685w.jpg...
Page 63 • Moderator Password lets you enter a password up to 4 numbers long for accessing the projector as a moderator using EasyMP Multi PC Projection or the Epson iProjection app. (No default password.) • Projector Keyword lets you turn on a security password to prevent access to the projector by anyone not in the room with it.
Page 64 7. Select the Wired LAN menu and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_network_wiredlan_pl685w.jpg 8. If necessary, select IP Settings and press Enter. 9. Select your IP Settings as necessary: • If your network assigns addresses automatically, turn on the DHCP setting. • If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet Mask, and Gateway Address as needed.
Page 65: Wireless Network Projection
Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software. Installing the Wireless LAN Module...
Page 66 Note: The wireless LAN module is not included with your projector. 1. Turn off the projector and unplug the power cord.
Page 67 2. Unscrew and remove the cable cover if it is attached (screwdriver not included). /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/cable_cover_remove_scre w_bl695wi.jpg...
Page 68: Using Quick Wireless Connection (Windows)
3. Insert the wireless LAN module into the port shown here. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/lan_unit_install_bl695wi.jpg 4. Replace the cable cover and tighten the screws. 5. Plug in and turn on the projector. Parent topic: Wireless Network Projection DCMS/Publications/Projectors/Source/Network/Tasks/using_quick_wireless_connection_user_created.xml Using Quick Wireless Connection (Windows) You can create a Quick Wireless Connection USB Key to quickly connect the projector to a Windows computer wirelessly.
Page 69 3. Insert the USB key into the projector's USB-A port. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_usb_quick_wirele ss_bl695w.jpg You see a projected message that the network information update is complete. 4. Remove the USB key. 5. Insert the USB key into a USB port on your computer. Note: In Windows Vista, if you see the AutoPlay window, select Run MPPLaunch.exe, then select Allow on the next screen.
Page 70: Selecting Wireless Network Settings Manually
Parent topic: Wireless Network Projection DCMS/Publications/Projectors/Source/Network/Tasks/selecting_wireless_network_settings_1775w.xml Selecting Wireless Network Settings Manually Before you can project from your wireless network, you must select the network settings for the projector using its menu system. 1. Turn on the projector. 2. Press the Menu button. 3.
Page 71 PJLink protocol for projector control. • Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing the Remote or Basic Control screen in the Epson Web Control. (Default user name is EPSONREMOTE; default password is guest.) •...
Page 72 • Display LAN Info lets you select how the projector displays network information. You can select an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app. Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.
Page 73: Wireless Lan Menu Settings
DCMS/Publications/Projectors/Source/Network/Reference/network_wirelesslan_settings_pl685w_bl695wi.xml Wireless LAN Menu Settings Setting Options Description Connection Mode Quick Selects the type of wireless connection: Advanced Quick: lets you quickly connect to multiple computers or devices directly or use a Quick Wireless Connection USB Key to connect Advanced: lets you connect to multiple computers or devices via a wireless network access point Search Access Point...
Page 74: Selecting Wireless Network Settings In Windows
Setting Options Description IP Address Display Selects whether to display the IP address on the network standby screen Parent topic: Selecting Wireless Network Settings Manually DCMS/Publications/Projectors/Source/Network/Tasks/selecting_wireless_settings_windows.xml Selecting Wireless Network Settings in Windows Before connecting to the projector, select the correct wireless network on your computer. 1.
Page 75: Setting Up Wireless Network Security
DCMS/Publications/Projectors/Source/Network/Tasks/selecting_wireless_security_plhc2000_2030.xml Setting Up Wireless Network Security You can set up security for your projector to use on the wireless network. Set up one of the following security options to match the settings used on your network: • WPA/WPA2-PSK security (Advanced connection mode) •...
Page 76: Connecting Directly To A Smartphone Or Tablet
You can display a QR code on the screen and use it to connect a single smartphone or tablet to your projector with the Epson iProjection app. 1. Download the latest version of Epson iProjection from the App Store or Google Play and install it on your smartphone or tablet.
Page 77 5. Select the Wireless LAN menu and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_network_wirelesslan_pl685w. 6. Select Connection Mode and press Enter. 7. Select Quick and press Enter, then press Enter again. 8. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
Page 78: Setting Up Projector Network E-Mail Alerts
12. Use the QR code reader feature to read the QR code and connect your device to the projector. Your smartphone or tablet is now connected to your projector. Visit webs.latin.epson.com/iProjection information on controlling your projector with the Epson iProjection app. Parent topic: Wireless Network Projection DCMS/Publications/Projectors/Source/Network/Tasks/selecting_network_email_alerts_pg7000w.xml...
Page 79 3. Select Network Configuration and press Enter. 4. Select the Notifications menu and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_network_notifications_pl685w .jpg 5. Turn on Mail Notification. 6. Enter the IP address for the SMTP Server setting. Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button.
Page 80: Network Projector E-Mail Alert Messages
• The email address entered as the From setting • Epson Projector on the subject line • The name of the projector experiencing a problem • The IP address of the affected projector •...
Page 81 4. Select the Notifications menu and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_network_notifications_pl685w .jpg 5. Turn on the SNMP setting. 6. Enter up to two IP addresses to receive SNMP notifications as the Trap IP Address setting, using 0 to 255 for each address field. Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button.
Page 82: Controlling A Networked Projector Using A Web Browser
7. Select the Others menu and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_network_others_pl685w.jpg 8. If available, select the Priority Gateway setting for your network. 9. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to allow the projector to be detected. 10.
Page 83 Note: The web setup and control features support Microsoft Internet Explorer 9.0 or later, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser. Note: If you set Standby Mode to Communication On, you can use a web browser to select settings and control projection even if the projector is in standby mode.
Page 84 Selects the network source Selects the USB Display or USB device source Volume button controls Displays a QR code for connecting with iOS or Android devices using the Epson iProjection 7. Select the icon corresponding to the projector function you want to control.
Page 85: Crestron Roomview Support
Crestron RoomView lets you control and monitor your projector using a web browser. Note: You cannot use the Epson Web Control feature or the Message Broadcasting plug-in for EasyMP Monitor when you use Crestron RoomView.
Page 86: Controlling A Networked Projector Using Crestron Roomview
/DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_network_others_pl685w.jpg 5. Set the Crestron RoomView setting to On to allow the projector to be detected. Note: Enabling Crestron RoomView disables the Epson Message Broadcasting feature in the EasyMP Monitor software. 6. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
Page 87 You see this screen: /DCMS/Publications/Projectors/Source/Images/Miscellaneous/crestron_controls.jpg 3. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box. 4. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons.
Page 88: Using Basic Projector Features
DCMS/Publications/Projectors/Source/Basic_Use/Container_Topics/using_basic_features_container.xml Using Basic Projector Features Follow the instructions in these sections to use your projector's basic features. Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Image Shape Resizing the Image with the Wide and Tele Buttons Adjusting the Image Position Focusing the Image Remote Control Operation...
Page 89 1. Connect the power cord to the projector's power inlet. /DCMS/Publications/Projectors/Source/Images/Adjustments/PL670_BL695Wi/plug_in_projector_pl695wi.j 2. Plug the power cord into an electrical outlet. Note: With Direct Power On turned on, the projector turns on as soon as you plug it in. The projector's power light turns blue. This indicates that the projector is receiving power. 3.
Page 90: Turning Off The Projector
Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is especially dangerous for children. If you do not see a projected image right away, try the following: • Turn on the connected computer or video device. •...
Page 91: Selecting The Language For The Projector Menus
2. Press the power button again. (To leave it on, press any other button.) The projector beeps twice, the lamp turns off, and the Status light turns off. Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).
Page 92: Image Shape
3. Select the Extended menu and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL695Wi/menu_extended_bl695wi.jpg 4. Select the Language setting and press Enter. 5. Select the language you want to use and press Enter. 6. Press Menu or Esc to exit the menus. Parent topic: Using Basic Projector Features Related references Projector Setup Settings - Extended Menu DCMS/Publications/Projectors/Source/Basic_Use/Concepts/image_shape_no_auto_pl470_bl485wi.xml...
Page 93: Correcting Image Shape With The Keystone Buttons
Parent topic: Using Basic Projector Features DCMS/Publications/Projectors/Source/Basic_Use/Tasks/image_shape_keystone_buttons_typeab.xml Correcting Image Shape with the Keystone Buttons You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides. Note: You can use the keystone buttons to correct the image up to ± 3° horizontally or vertically. Note: Using the keystone correction buttons may affect interactive pen and finger touch calibration.
Page 94 3. Press a keystone button on the projector's control panel to adjust the image shape. /DCMS/Publications/Projectors/Source/Images/Adjustments/PL670_BL695Wi/keystone_vert_buttons_pl6 85w_bl695wi.jpg /DCMS/Publications/Projectors/Source/Images/Adjustments/PL670_BL695Wi/keystone_horiz_buttons_pl 685w_bl695wi.jpg Note: The horizontal keystone adjustment buttons are labeled W and T. After correction, your image is slightly smaller.
Page 95: Correcting Image Shape With Quick Corner
Note: If the projector is installed out of reach, you can also correct the image shape with the remote control using the H/V-Keystone settings in the projector menus. Parent topic: Image Shape Related references Projector Feature Settings - Settings Menu DCMS/Publications/Projectors/Source/Basic_Use/Tasks/image_shape_quick_corner.xml Correcting Image Shape with Quick Corner You can use the projector's Quick Corner setting to correct the shape and size of an image that is...
Page 96 3. Select the Settings menu and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_settings_pl685w.jpg 4. Select the Geometry Correction setting and press Enter. 5. Select the Quick Corner setting and press Enter. Then press Enter again. You see the Quick Corner adjustment screen: /DCMS/Publications/Projectors/Source/Images/Miscellaneous/quick_corner_adj_screen.jpg...
Page 97: Correcting Image Shape With Arc Correction
Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a reset screen. Then select Yes. 6. Use the arrow buttons on the projector or the remote control to select the corner of the image you want to adjust.
Page 98 3. Select the Settings menu and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_settings_pl685w.jpg 4. Select the Geometry Correction setting and press Enter. 5. Select the Arc Correction setting and press Enter. Then press Enter again. You see the Arc Correction adjustment screen: /DCMS/Publications/Projectors/Source/Images/Miscellaneous/arc_correction_adj_screen.jpg...
Page 99: Resizing The Image With The Wide And Tele Buttons
6. Use the arrow buttons on the projector or the remote control to select the corner or side of the image you want to adjust. Then press Enter. 7. Press the arrow buttons to adjust the image shape as necessary. 8.
Page 100: Adjusting The Image Position
Related tasks Adjusting the Image Position DCMS/Publications/Projectors/Source/Basic_Use/Tasks/image_adjusting_position.xml Adjusting the Image Position You can use the Image Shift feature to adjust the image position without moving the projector. /DCMS/Publications/Projectors/Source/Images/Adjustments/PL470_BL485wi/image_shift_pl470_bl485wi.jpg Note: This feature is not available if the Zoom option is set to the widest setting. 1.
Page 101: Focusing The Image
3. Use the arrow buttons on the projector or remote control to adjust the image position. Note: You can also use the Settings menu to adjust the Image Shift setting. Parent topic: Using Basic Projector Features Related references Projector Feature Settings - Settings Menu DCMS/Publications/Projectors/Source/Basic_Use/Tasks/image_focusing_pl470_bl485wi.xml Focusing the Image 1.
Page 102: Remote Control Operation
3. Raise or lower the focus lever to sharpen the image. /DCMS/Publications/Projectors/Source/Images/Adjustments/PL670_BL695Wi/focusing_pl685w_bl695wi.j Parent topic: Using Basic Projector Features Related references Projector Feature Settings - Settings Menu DCMS/Publications/Projectors/Source/Basic_Use/Reference/remote_control_operation_pl470_bl485wi.xml Remote Control Operation The remote control lets you control the projector from almost anywhere in the room, up to 19.7 feet (6 m) away.
Page 103 Make sure that you aim the remote control at the projector's receivers within the angles listed here. /DCMS/Publications/Projectors/Source/Images/Remote_Controls/PL470_BL475Wi/remote_control_angles_pl 470_bl485wi.jpg 19.7 feet (6 m) ± 30° ± 55° 60° 75° 15° Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or the projector may not respond to commands.
Page 104: Using The Remote Control As A Wireless Mouse
Parent topic: Using Basic Projector Features DCMS/Publications/Projectors/Source/Basic_Use/Tasks/remote_using_wireless_mouse_pl470_bl485wi.xml Using the Remote Control as a Wireless Mouse You can use the projector's remote control as a wireless mouse so you can control projection at a distance from the computer. The computer must be running Windows Vista or later, OS X 10.7 or later, or macOS 10.12.x Note: You cannot use this feature at the same time as the interactive pens.
Page 105: Using The Remote Control As A Pointer
• To move the cursor on the screen, use the arrow buttons. • To left-click, press the button once (press it twice to double-click). • To right-click, press the Esc button. • To drag-and-drop, hold the button as you move the cursor with the arrow buttons, then release button at the destination.
Page 106: Selecting An Image Source
3. Press Esc to clear the pointer from the screen. Parent topic: Remote Control Operation Related references Projector Feature Settings - Settings Menu DCMS/Publications/Projectors/Source/Basic_Use/Tasks/image_source_selecting_multi_button.xml Selecting an Image Source If you connected multiple image sources to the projector, such as a computer and DVD player, you may want to switch from one image source to the other.
Page 107 • Press the button for the source you want on the remote control. If there is more than one port for that source, press the button again to cycle through the sources. /DCMS/Publications/Projectors/Source/Images/Adjustments/PL670_BL695Wi/remote_control_source_ pl685w_bl695wi.jpg Computer port sources Video, HDMI, and MHL sources USB port sources (computer display and external devices) Network source (LAN)
Page 108: Projection Modes
• Press the Home button on the remote control and select your image source. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_home_pl685w_bl695wi.jpg Parent topic: Using Basic Projector Features DCMS/Publications/Projectors/Source/Basic_Use/Concepts/projection_modes_upside_down.xml Projection Modes Depending on how you positioned the projector, you may need to change the projection mode so your images project correctly.
Page 109: Changing The Projection Mode Using The Remote Control
You can change the projection mode using the remote control or by changing the Projection setting in the Extended menu. Changing the Projection Mode Using the Remote Control Changing the Projection Mode Using the Menus Parent topic: Using Basic Projector Features Related references Projector Setup Settings - Extended Menu DCMS/Publications/Projectors/Source/Basic_Use/Tasks/projection_mode_changing_remote.xml...
Page 110: Image Aspect Ratio
3. Select the Extended menu and press Enter. 4. Select the Projection setting and press Enter. 5. Select a projection mode and press Enter. 6. Press Menu or Esc to exit the menus. Parent topic: Projection Modes Related references Projector Setup Settings - Extended Menu DCMS/Publications/Projectors/Source/Basic_Use/Concepts/image_aspect_ratio.xml Image Aspect Ratio The projector can display images in different width-to-height ratios called aspect ratios.
Page 111: Changing The Image Aspect Ratio
DCMS/Publications/Projectors/Source/Basic_Use/Tasks/aspect_ratio_changing.xml Changing the Image Aspect Ratio You can change the aspect ratio of the displayed image to resize it. 1. Turn on the projector and switch to the image source you want to use. 2. Press the Aspect button on the remote control. /DCMS/Publications/Projectors/Source/Images/Adjustments/PL670_BL695Wi/remote_control_aspect_pl6 85w_bl695wi.jpg The shape and size of the displayed image changes, and the name of the aspect ratio appears...
Page 112: Color Mode
Aspect ratio setting Description Normal Displays images using the full projection area and maintains the aspect ratio of the image. 16:9 Converts the aspect ratio of the image to 16:9. Full Displays images using the full width of the projection area, but does not maintain the aspect ratio.
Page 113: Available Color Modes
3. Press the Color Mode button on the remote control to change the Color Mode. /DCMS/Publications/Projectors/Source/Images/Adjustments/PL670_BL695Wi/remote_control_colormode _pl685w_bl695wi.jpg The image appearance changes and the name of the Color Mode appears briefly on the screen. 4. To cycle through all the available Color Modes for your input signal, press the Color Mode button repeatedly.
Page 114: Turning On Auto Iris
DCMS/Publications/Projectors/Source/Basic_Use/Tasks/auto_iris_setting_high_speed.xml Turning On Auto Iris In certain color modes, you can turn on the Auto Iris setting to automatically optimize the image based on the brightness of the content you project. 1. Turn on the projector and switch to the image source you want to use. 2.
Page 115: Controlling The Volume With The Volume Buttons
DCMS/Publications/Projectors/Source/Basic_Use/Tasks/volume_controlling_buttons.xml Controlling the Volume with the Volume Buttons You can use the Volume buttons on the remote control to adjust the volume as you project a presentation with audio. The volume buttons control the projector’s internal speaker system or any external speakers you connected to the projector.
Page 116: Supported Pc Free File Types
Parent topic: Using Basic Projector Features Related tasks Connecting a USB Device or Camera to the Projector DCMS/Publications/Projectors/Source/PCFree/Reference/pcfree_slideshow_filetype_list.xml Supported PC Free File Types You can project these types of files using the projector's PC Free feature. Note: For best results, place your files on media that is formatted in FAT16/32. If you have trouble projecting from media formatted for non-Windows file systems, try formatting the media for Windows instead.
Page 117: Starting A Pc Free Slide Show
DCMS/Publications/Projectors/Source/PCFree/Tasks/projecting_image_files_pcfree.xml Starting a PC Free Slide Show After connecting a USB device or digital camera to the projector, you can switch to the USB input source and start your slide show. Note: You can change the PC Free operation options or add special effects by highlighting Option at the bottom of the screen and pressing Enter.
Page 118: Starting A Pc Free Movie Presentation
• To view additional files in a folder, highlight Next page or Previous page and press Enter. (You can also press the Page up or down buttons on the remote control.) 3. Do one of the following: • To display an individual image, press the arrow buttons to highlight the image and press Enter. (Press the Esc button to return to the file list screen.) •...
Page 119 The PC Free screen appears. /DCMS/Publications/Projectors/Source/Images/Miscellaneous/PCFreemovie.jpg 2. Do the following as necessary to locate your files: • If you need to display files inside a subfolder on your device, press the arrow buttons to highlight the folder and press the Enter button. •...
Page 120: Pc Free Display Options
DCMS/Publications/Projectors/Source/PCFree/Reference/slideshow_option_list.xml PC Free Display Options You can select these display options when using the projector's PC Free feature. /DCMS/Publications/Projectors/Source/Images/Miscellaneous/slideshow_options_screen_typeab.jpg Setting Options Description Display Order Name Order Displays files in name order Date Order Displays files in date order Sort Order In Ascending Sorts files in first-to-last order In Descending...
Page 121 Setting Options Description Effect Wipe Transitions between images with a wipe effect Dissolve Transitions between images with a dissolve effect Random Transitions between images using a random variety of effects Parent topic: Projecting a PC Free Presentation...
Page 122: Adjusting Projector Features
DCMS/Publications/Projectors/Source/Adjustments/Container_Topics/adjustment_features_container.xml Adjusting Projector Features Follow the instructions in these sections to use your projector's feature adjustments. Projecting Two Images Simultaneously Using Multiple Projectors (DuoLink) Shutting Off the Picture and Sound Temporarily Stopping Video Action Temporarily Zooming Into and Out of Images Projector Security Features Creating a User Pattern to Display Copying Menu Settings Between Projectors...
Page 123: Projecting Two Images Simultaneously
DCMS/Publications/Projectors/Source/Adjustments/Tasks/split_screen.xml Projecting Two Images Simultaneously You can use the split screen feature to simultaneously project two images from different image sources next to each other. You can control the split screen feature using the remote control, the projector menus, or the interactive function. /DCMS/Publications/Projectors/Source/Images/Adjustments/PL1780W_1795F/adjustments_split_screen_pl17 80w_1795f.jpg Note: While you use the split screen feature, other projector features may not be available and some...
Page 124 1. Press the Split button on the remote control. /DCMS/Publications/Projectors/Source/Images/Adjustments/PL670_BL695Wi/remote_control_split_pl685 w_bl695wi.jpg The currently selected input source moves to the left side of the screen. 2. Press the Menu button. You see this screen: /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_split_bl695wi.jpg 3. To select an input source for the other image, select the Source setting, press Enter, select the input source, select Execute, and press Enter.
Page 125: Input Sources For Split Screen Projection
5. To change the image sizes, select the Screen Size setting, press Enter, select a sizing option, press Enter, and press Menu to exit. Note: Depending on the video input signals, the images may not appear at the same size even if you choose the Equal setting.
Page 126: Using Multiple Projectors (Duolink)
Parent topic: Projecting Two Images Simultaneously DCMS/Publications/Projectors/Source/Adjustments/Concepts/multi_projector_pl4650_4855wu.xml Using Multiple Projectors (DuoLink) You can combine the projected images from two or more projectors to create one large image. Follow the instructions in these sections to setup and project from multiple projectors. Projector Identification System for Multiple Projector Control Setting the Projector ID Setting the Remote Control ID...
Page 127: Setting The Remote Control Id
4. Select Projector ID and press Enter. /DCMS/Publications/Projectors/Source/Images/Adjustments/proj_id_menu.jpg 5. Press the arrow buttons on the remote control to select the identification number you want to use for the projector. Then press Enter. Repeat these steps for all the other projectors you want to operate from one remote control. Note: If you don't know the projector's ID, aim the remote control at the projector and press the ID button to temporarily display the projector's ID on the screen.
Page 128: Adjusting Color Uniformity
1. Turn on the projector you want the remote control to operate with exclusively. 2. Make sure you know the projector's ID number as set in the Extended menu Projector ID setting. Note: If you have forgotten the projector's ID, aim the remote control at the projector and press the ID button to temporarily display the projector's ID on the screen.
Page 129 Note: If you cannot adjust color uniformity, make sure the Color Mode setting is not set to Dynamic. 1. Press the Menu button on the remote or control panel, select the Extended menu, and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_bl696ui.jpg 2. Select the Multi-Projection setting and press Enter. 3.
Page 130 5. Select Adjustment Level and press Enter. 6. Select an adjustment level and press Esc. 7. Select Start Adjustments and press Enter. 8. Select the area you want to adjust and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_color_uniformity_bl696ui.jpg 9. Select Red, Green, or Blue and press the left arrow button to weaken the color tone or the right arrow button to strengthen the color tone.
Page 131: Adjusting The Lamp's Brightness
Related references Projector Setup Settings - Extended Menu DCMS/Publications/Projectors/Source/Adjustments/Tasks/Multi_Projector_Tasks/multi_projector_interactive_brightn ess_adjust.xml Adjusting the Lamp's Brightness When projecting with multiple projectors, you must adjust the brightness setting so that all projectors are as bright as the darkest lamp. (Even after adjusting the brightness levels, the brightness of each lamp may not match exactly.) 1.
Page 132 6. Select the Multi-Projection setting and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_multiproject_bl696ui.jpg 7. Select the Brightness Level setting and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_mp_brightness_bl696ui. 8. Select a brightness level and press Enter. 9. Press Esc to return to the previous screen. Parent topic: Using Multiple Projectors (DuoLink)
Page 133: Matching The Image Colors
Related references Projector Setup Settings - Extended Menu DCMS/Publications/Projectors/Source/Adjustments/Tasks/Multi_Projector_Tasks/multi_projector_matching_colors_ manually_bl696ui.xml Matching the Image Colors You can match the display quality of multiple projectors that will project next to one another. 1. Press the Menu button. 2. Select the Extended menu and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_bl696ui.jpg...
Page 134 3. Select the Multi-Projection setting and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_multiproject_bl696ui.jpg 4. Select the Color Matching setting and press Enter. 5. Select the Adjustment Level setting and press Enter. You see this screen: /DCMS/Publications/Projectors/Source/Images/Menus/PL1000U_1505U/menu_color_matching_pl1000u_ 1500u.jpg 6. Press the left or right arrow buttons to select a value for the Adjustment Level setting. Note: There are six adjustment levels ranging from white to black and you can adjust each level individually.
Page 135: Adjusting Rgbcmy
9. Repeat the previous three steps as necessary to adjust each adjustment level. Parent topic: Using Multiple Projectors (DuoLink) Related references Projector Setup Settings - Extended Menu DCMS/Publications/Projectors/Source/Adjustments/Tasks/Multi_Projector_Tasks/multi_projector_interactive_adjusti ng_rgbcmy_bl696ui.xml Adjusting RGBCMY You can adjust the Hue, Saturation, and Brightness settings for R (red), G (green), B (blue), C (cyan), M (magenta), and Y (yellow) color components.
Page 136 3. Select the Multi-Projection setting and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_multiproject_bl696ui.jpg 4. Select the RGBCMY setting and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_mp_rgbcmy_bl696ui.jpg 5. Select the color you want to adjust and press Enter.
Page 137: Shutting Off The Picture And Sound Temporarily
You see this screen: /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_rgbcmy_hsb_bl696ui.jpg • To adjust the overall hue of the color, adjust the Hue setting. • To adjust the overall vividness of the color, adjust the Saturation setting. • To adjust the overall brightness of the color, adjust the Brightness setting. 6.
Page 138: Stopping Video Action Temporarily
2. To turn the picture and sound back on, press A/V Mute again. Parent topic: Adjusting Projector Features DCMS/Publications/Projectors/Source/Adjustments/Tasks/freeze_using_sound.xml Stopping Video Action Temporarily You can temporarily stop the action in a video or computer presentation and keep the current image on the screen.
Page 139: Zooming Into And Out Of Images
DCMS/Publications/Projectors/Source/Adjustments/Tasks/zooming_image.xml Zooming Into and Out of Images You can draw attention to parts of a presentation by zooming into a portion of the image and enlarging it on the screen. /DCMS/Publications/Projectors/Source/Images/Adjustments/PL1000U_1505U/adjustments_example_ezoom_ pl1000u_1500u.jpg Note: You can also zoom into your image using the interactive pens. 1.
Page 140: Projector Security Features
• To return to the original image size, press Esc. Parent topic: Adjusting Projector Features DCMS/Publications/Projectors/Source/Adjustments/Concepts/security_features.xml Projector Security Features You can secure your projector to deter theft or prevent unintended use by setting up the following security features: • Password security to prevent the projector from being turned on, and prevent changes to the startup screen and other settings.
Page 141: Setting A Password
DCMS/Publications/Projectors/Source/Adjustments/Tasks/security_setting_password.xml Setting a Password To use password security, you must set a password. 1. Hold down the Freeze button on the remote control for about five seconds or until you see this menu. /DCMS/Publications/Projectors/Source/Images/Menus/PL585W_BL595Wi_Plus/password_protection_pl5 85w_bl595wi.jpg 2. Press the down arrow to select Password and press Enter. You see the prompt "Change the password?".
Page 142: Selecting Password Security Types
The password displays as **** as you enter it. Then you see the confirmation prompt. 5. Enter the password again. You see the message "Password accepted." 6. Press Esc to return to the menu. 7. Make a note of the password and keep it in a safe place in case you forget it. Parent topic: Password Security Types DCMS/Publications/Projectors/Source/Adjustments/Tasks/security_selecting_password_type_network.xml...
Page 143: Entering A Password To Use The Projector
Note: Be sure to keep the remote control in a safe place; if you lose it, you will not be able to enter the password required to use the projector. Parent topic: Password Security Types Related references Projector Feature Settings - Settings Menu Projector Network Settings - Network Menu Related tasks Turning On the Projector...
Page 144: Saving A User's Logo Image To Display
• If you continue to enter an incorrect password many times in succession, the projector displays a request code and a message to contact Epson Support. Do not attempt to enter the password again. When you contact Epson Support, provide the displayed request code and proof of ownership for assistance in unlocking the projector.
Page 145 The image you select as the User's Logo can be a photo, graphic, or company logo, which is useful in identifying the projector's owner to help deter theft. You can prevent changes to the User's Logo by setting up password protection for it. 1.
Page 146 You see the User's Logo zoom factor menu. /DCMS/Publications/Projectors/Source/Images/Adjustments/user_logo_zoom_screen.jpg 7. Select a zoom percentage and press Enter. You see a prompt asking if you want to save the image as the User's Logo. 8. Select Yes and press Enter. You see a completion message. 9.
Page 147: Locking The Projector's Buttons
DCMS/Publications/Projectors/Source/Adjustments/Tasks/security_locking_buttons.xml Locking the Projector's Buttons You can lock the buttons on the projector's control panel to prevent anyone from using the projector. You can lock all the buttons or all the buttons except the power button. 1. Press the Menu button. 2.
Page 148: Unlocking The Projector's Buttons
DCMS/Publications/Projectors/Source/Adjustments/Tasks/security_unlocking_buttons.xml Unlocking the Projector's Buttons If the projector's buttons have been locked, hold the Enter button on the projector's control panel for seven seconds to unlock them. Parent topic: Locking the Projector's Buttons DCMS/Publications/Projectors/Source/Adjustments/Tasks/security_installing_cable_two.xml Installing a Security Cable You can install two types of security cables on the projector to deter theft. •...
Page 149: Creating A User Pattern To Display
DCMS/Publications/Projectors/Source/Adjustments/Tasks/creating_user_pattern_screen.xml Creating a User Pattern to Display You can transfer an image to the projector and then display it as a pattern to aid in presentations when you use the Pattern Display feature. This transferred image is called the User Pattern. Note: Once you save a user pattern, you cannot restore the default pattern.
Page 150: Copying Menu Settings Between Projectors
Correction settings. Any saved User's Logo setting on the projector will transfer to the other projector. Caution: If the copy process fails due to a power failure, communication error, or for any other reason, Epson will not be responsible for any repair costs incurred. The following settings will not transfer between projectors: •...
Page 151: Transferring Settings From A Usb Flash Drive
1. Turn off the projector and unplug the power cord from the projector's power inlet. 2. Insert the flash drive into the USB-A port. /DCMS/Publications/Projectors/Source/Images/Connections/PL670_BL695Wi/connect_usb_quick_wirele ss_bl695w.jpg Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be saved correctly.
Page 152 Note: Make sure the USB flash drive contains only a single settings transfer from another projector of the same model. The settings are contained in a file called pjconfdata.bin. If the drive contains other files, the transfer may not complete correctly. Do not adjust image settings on a projector until after you transfer settings to it.
Page 153: Saving Settings To A Computer
Parent topic: Copying Menu Settings Between Projectors DCMS/Publications/Projectors/Source/Adjustments/Tasks/batch_settings_save_computer.xml Saving Settings to a Computer You can save the projector settings you want to transfer to a computer. Your computer must be running one of the following operating systems: • Windows Vista •...
Page 154: Transferring Settings From A Computer
4. Press and hold the Esc button on the control panel or remote control as you connect the power cord to the projector's power inlet. 5. When the power, Status, Lamp, and Temp lights turn on, release the Esc button. The projector shows up as a removable disk on your computer.
Page 155 2. Connect a USB cable to your projector's USB-B port. 3. Connect the other end to any available USB port on your computer. 4. Press and hold the Menu button on the control panel or remote control as you connect the power cord to the projector's power inlet.
Page 156: Using The Interactive Features
DCMS/Publications/Projectors/Source/Interactive/Container_Topics/features_using_interactive_pc_free_annotation_ container.xml Using the Interactive Features Follow the instructions in these sections to use your projector's interactive features. Interactive Modes Using the Interactive Pens Using Finger Touch Interactivity Using BrightLink with a Computer Windows Pen Input and Ink Tools Using BrightLink Without a Computer DCMS/Publications/Projectors/Source/Interactive/Concepts/pen_fingertouch_three_modes.xml Interactive Modes The BrightLink interactive features turn any wall into an interactive whiteboard, either with or without a...
Page 157: Using The Projected Screen As A Whiteboard (Built-In Whiteboard Mode)
Parent topic: Using the Interactive Features Related concepts Using BrightLink with a Computer Using BrightLink Without a Computer DCMS/Publications/Projectors/Source/Interactive/Tasks/whiteboard_mode_using_touch.xml Using the Projected Screen as a Whiteboard (Built-in Whiteboard Mode) You can use the interactive pens or your finger (BrightLink 695Wi+) to write or draw on the projection surface just as you would on a chalkboard or dry erase board.
Page 158: Drawing On A Projected Image (Built-In Annotation Mode)
2. To move the main toolbar to the other side of the screen, tap the arrow on the opposite side of the screen. Note: You can use the pen or your finger (BrightLink 695Wi+) to move the arrow icon up or down to reposition the toolbar.
Page 159 You see the main toolbar on the side and the projector control toolbar on the bottom of the projected image. /DCMS/Publications/Projectors/Source/Images/Interactive/BL695Wi_696Ui/annotation_mode_screen_bl6 95wi_bl696ui.jpg 3. To move the main toolbar to the other side of the screen, tap the arrow on the opposite side of the screen.
Page 160: Controlling Computer Features From A Projected Screen (Pc Interactive Mode)
(BrightLink 695Wi+) just as you would a mouse. Note: Mac users need to install the Easy Interactive Driver before using PC Interactive mode. Go to epson.com.jm/support and select your projector. 1. Connect the projector to your computer using a USB cable.
Page 161 3. Press the Menu button on the remote control, select the Extended menu, and press the Enter button. /DCMS/Publications/Projectors/Source/Images/Menus/BL695Wi/menu_extended_bl695wi.jpg 4. Select the USB Type B setting and press the Enter button. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_usbtypeb_bl696ui.jpg 5. Select one of the following: • Easy Interactive Function to use PC Interactive mode. •...
Page 162 • Wireless Mouse/USB Display to use the remote control as a mouse and USB Display. 6. Press the Esc button to exit the USB Type B menu. 7. Select the Easy Interactive Function setting and press the Enter button. /DCMS/Publications/Projectors/Source/Images/Menus/BL695Wi/menu_extended_interactive_bl695wi.jpg 8.
Page 163: Pc Interactive Mode System Requirements
DCMS/Publications/Projectors/Source/Interactive/Reference/eit_system_req_version_42.xml PC Interactive Mode System Requirements Your computer system must meet the system requirements here to use PC Interactive mode and Easy Interactive Tools. Note: Easy Interactive Driver must be installed and running to use Easy Interactive Tools on a Mac. Requirement Windows Operating system...
Page 164: Using The Pens
DCMS/Publications/Projectors/Source/Interactive/Tasks/pen_using_bl685wi_blp1460ui.xml Using the Pens Your projector came with a blue pen and an orange pen, identified by the color strip at the end of the pen. You can use either pen, or both pens at the same time (one of each color) in built-in whiteboard or annotation mode.
Page 165 • To turn on the pen, move the pen. Note: If you press the function button, the battery light flashes briefly, then turns off. If the battery is low, the battery light flashes continuously. • For best performance, hold the pen perpendicular to the board, as shown below. Do not cover the black section near the tip of the pen.
Page 166 Note: You can change the function of the button by changing the Pen Button Function setting in the Extended menu. • To use the pen as a mouse in PC Interactive mode, do the following: /DCMS/Publications/Projectors/Source/Images/Interactive/BL695Wi_696Ui/pen_using_as_mouse_bl695wi.j • To left-click, tap the board with the pen tip. •...
Page 167: Pen Calibration
DCMS/Publications/Projectors/Source/Interactive/Concepts/pen_calibration.xml Pen Calibration Calibration coordinates the position of the pen with the location of your cursor. You only need to calibrate the first time you use your projector's interactive features. Calibration results remain until you calibrate again. Be sure to calibrate the pen before performing finger touch calibration (BrightLink 695Wi+). If you notice positioning discrepancies after doing any of the following, calibrate again: •...
Page 168 1. Press the Menu button, select the Extended menu, and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_bl696ui.jpg 2. Select the Easy Interactive Function setting and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_autocal_bl696ui.jpg...
Page 169: Calibrating Manually
3. Select Auto Calibration and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/PL470_BL485wi/calibration_auto_bl475wi_485wi.j 4. Adjust the image focus, if necessary. 5. Press Enter to select Yes. A pattern appears then disappears, and the system is calibrated. If you see a message that calibration failed, you need to calibrate manually. The cursor location and pen position should match after calibration.
Page 170 1. Press the Menu button, select the Extended menu, and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_bl696ui.jpg 2. Select the Easy Interactive Function setting and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_eif_manual_bl696ui.jpg...
Page 171 3. Select Manual Calibration and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/PL470_BL485wi/calibration_manual_bl475wi_485 wi.jpg 4. Adjust the image focus, if necessary. 5. Press Enter to select Yes. A flashing green circle appears in the upper left corner of your projected image. 6. Touch the center of the circle with the tip of the pen. The circle disappears, and you see another circle below the first one.
Page 172 Note: For the most accurate calibration, make sure you touch the center of the circle. /DCMS/Publications/Projectors/Source/Images/Interactive/BL575Wi_585Wi_595Wi/calibrate_dot_center_ warning_bl575wi_bl595wi.jpg Note: Make sure you are not blocking the signal between the pen and the interactive receiver (next to the projection window on the projector). 7.
Page 173: Using Finger Touch Interactivity
8. Continue until all of the circles disappear. Parent topic: Pen Calibration Related tasks Focusing the Image Calibrating Automatically DCMS/Publications/Projectors/Source/Interactive/Container_Topics/finger_touch_container.xml Using Finger Touch Interactivity You can use your finger to perform the same functions as the interactive pens when you install the Touch Unit (BrightLink 695Wi+).
Page 174 A built-in, high-power laser is emitted from the laser diffusion ports on the back of the Touch Unit. /DCMS/Publications/Projectors/Source/Images/Interactive/BL575Wi_585Wi_595Wi/touch_unit_laser.jpg Follow these precautions when using the Touch Unit and finger touch interactivity: • Children using finger touch interactivity should always be accompanied by an adult. •...
Page 175: Calibrating For Finger Touch Interactivity
The Touch Unit is a Class 1 laser product that complies with IEC/EN60825-1:2007. The labels indicating the Class 1 laser product and warnings are located in the following areas on the Touch Unit: /DCMS/Publications/Projectors/Source/Images/Interactive/BL575Wi_585Wi_595Wi/touch_unit_warning_label 1.jpg /DCMS/Publications/Projectors/Source/Images/Interactive/BL575Wi_585Wi_595Wi/touch_unit_warning_label 2.jpg /DCMS/Publications/Projectors/Source/Images/Interactive/BL575Wi_585Wi_595Wi/touch_unit_warning_label 3.jpg Parent topic: Using Finger Touch Interactivity DCMS/Publications/Projectors/Source/Interactive/Tasks/finger_touch_calibration_bl595wi_plus.xml Calibrating for Finger Touch Interactivity...
Page 176 1. Press the Menu button, select the Extended menu, and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_bl696ui.jpg 2. Select the Easy Interactive Function setting and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL696Ui/menu_extended_eif_touch_bl696ui.jpg...
Page 177 3. Select Touch Unit Setup and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BLP1420Wi_1430Wi/menu_extended_eif_touch_c alib.jpg 4. Select Touch Calibration and press Enter. The following screen appears: /DCMS/Publications/Projectors/Source/Images/Menus/BL575Wi_585Wi_595Wi/lcd_touch_calibration_bl5 95wi_plus.jpg...
Page 178 5. Adjust the image focus, if necessary. 6. Press Enter to select Yes. A flashing green circle appears in the upper left corner of your projected image. 7. Touch and hold the center of the circle with your finger until the circle disappears and another circle appears, then release it.
Page 179: Using Finger Touch Operations
Note: Make sure you are not blocking the signal between your finger and the interactive receiver (next to the projection window on the projector). 8. Touch the center of the next circle with your finger and continue until all of the circles disappear. When you get to the bottom of a column, the next circle appears at the top of a new column.
Page 180 When performing touch operations with your finger, you can use two fingers in built-in annotation mode and up to six fingers in built-in whiteboard mode. 1. Install the Touch Unit as described in the Touch Unit and Control Pad Installation Guide. 2.
Page 181 7. To use your finger as a mouse in PC Interactive mode, do the following: • To left-click, tap the board with your finger. • To double-click, tap twice with your finger. • To right-click, press the board with your finger for about 3 seconds. •...
Page 182: Using Brightlink With A Computer
Calibrating Manually DCMS/Publications/Projectors/Source/Interactive/Concepts/using_brightlink_with_computer_touch.xml Using BrightLink with a Computer You can connect a computer to the projector and install the software from the Easy Interactive Function CD. You can then do the following: • Use the pens or your finger (BrightLink 695Wi+) as a mouse to control your computer •...
Page 183 2. Press the Menu button, select the Extended menu, and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL695Wi/menu_extended_bl695wi.jpg 3. Select the Easy Interactive Function setting and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL695Wi/menu_extended_interactive_bl695wi.jpg...
Page 184 4. Select Advanced in the PC Interactive section and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL695Wi/menu_interactive_advanced_bl695wi.jpg 5. Select Manual Adj. Pen Area and press Enter. You see this screen: /DCMS/Publications/Projectors/Source/Images/Menus/PL470_BL485wi/manual_adj_pen_area_bl475wi_ 485wi.jpg 6. Press Enter to select Yes. The mouse pointer moves toward the top left corner. 7.
Page 185: Easy Interactive Tools
8. When the mouse pointer stops at the bottom right corner of the image, touch the tip of the pointer with the interactive pen. Parent topic: Using BrightLink with a Computer DCMS/Publications/Projectors/Source/Interactive/Concepts/eit_features_bl475wi_485wi.xml Easy Interactive Tools Your projector came with a CD containing the Easy Interactive Tools software for use with a computer. Easy Interactive Tools lets you use your interactive pen or finger (BrightLink 695Wi+) to draw, save, and interact with projected content from your computer.
Page 186: Enabling Windows Pen Input And Ink Tools
DCMS/Publications/Projectors/Source/Interactive/Tasks/pen_enabling_tablet_ink_bl575wi_595wi.xml Enabling Windows Pen Input and Ink Tools To use the pen input and Ink tools in Windows 10, Windows 8.x, Windows 7, or Windows Vista, you need to adjust the pen operation mode in your projector's menus. 1. Press the Menu button, select the Extended menu, and press Enter. /DCMS/Publications/Projectors/Source/Images/Menus/BL695Wi/menu_extended_bl695wi.jpg 2.
Page 187: Using Windows Pen Input And Ink Tools
3. Select Pen Operation Mode and press Enter. 4. Select Windows/Mac Mode and press Enter. Parent topic: Windows Pen Input and Ink Tools DCMS/Publications/Projectors/Source/Interactive/Tasks/pen_using_tablet_ink_bl575wi_595wi.xml Using Windows Pen Input and Ink Tools If you are using Windows 10, Windows 8.x, Windows 7, or Windows Vista, you can add handwritten input to your work and convert it to text.
Page 188: Using Brightlink Without A Computer
• To add Ink annotations in Microsoft Office applications, select the Review menu, and select Start Inking. Note: In Microsoft Word or Excel, select the Insert tab and select Start Inking. /DCMS/Publications/Projectors/Source/Images/Icons/BL475wi_480i_485wi/pen_start_inking_bl475wi_485w i.jpg • To annotate your PowerPoint slides in Slideshow mode, press the button on the side of the interactive pen or press the projection surface with your finger (BrightLink 695Wi+) for about 3 seconds, and select Pointer Options >...
Page 189: Using The Built-In Annotation Mode
Selecting a Networked Device Source Splitting the Screen Using Interactive Features with Two Projectors Parent topic: Using the Interactive Features DCMS/Publications/Projectors/Source/Interactive/Tasks/pen_finger_using_built_in_toolbar_bl595wi_plus.xml Using the Built-in Annotation Mode You can use either pen with the built-in toolbar, both pens at the same time, your finger (BrightLink 695Wi+), or a combination of both pen and finger touch (BrightLink 695Wi+).
Page 190 In the following illustration, the annotation mode tools are shown on the left, and the whiteboard mode tools on the right: /DCMS/Publications/Projectors/Source/Images/Icons/BL695Wi/interactive_whiteboard_annotation_toolbar_bl6 95wi.jpg Switch to built-in annotation mode Switch to built-in whiteboard mode...
Page 191 Undo the last annotation Redo the last undo Switch to the computer interactive mode Select a white or black background or one of 4 patterns (whiteboard mode only) Change custom pen or highlighter color and width Write or draw free-form lines with custom pen Write or draw free-form lines with transparent highlighter pen Black pen (fine point on left, thick on right) Red pen (fine point on left, thick on right)
Page 192: Using The Built-In Whiteboard Mode
Blue pen (fine point on left, thick on right) Eraser (thin width on left, thick on right) Clear all annotations Hide the toolbar after each annotation Close the toolbar Parent topic: Using BrightLink Without a Computer DCMS/Publications/Projectors/Source/Interactive/Tasks/pen_selecting_background_bl475wi_485wi.xml Using the Built-in Whiteboard Mode In built-in whiteboard mode, you can project a solid or patterned background, and then write or draw on it as you would on a chalkboard or dry erase board.
Page 193: Changing Pen Width And Color Using The Built-In Toolbar
3. Do one of the following to write or draw on the background. • To write, select one of the Pen tools. • To highlight, select the Highlighter tool. 4. Do one of the following to clear all or part of the screen, •...
Page 194 Prints the projected image Saves the projected image to a connected USB storage device Shares the projected image using EasyMP Multi PC Projection or Epson iProjection Changes the image source using a displayed list. Zooms into and out of the image...
Page 195 Projects two images from different image sources Sets the timer Displays the document camera control toolbar. (Not all settings may be available depending on your document camera model and connection type.) • : Automatically focus the document camera image; make sure you enable this setting before you zoom into or out of the document camera image •...
Page 196: Selecting A Networked Device Source
You can project an image from up to 50 devices connected to the projector via a network. You can select the image source from computers running EasyMP Multi PC Projection or Epson iProjection, and smartphones or tablets running Epson iProjection.
Page 197 • Use other interactive features • Control the projector from the bottom toolbar • Connect to multiple projectors • Hear sound from the projector • Project an image using EasyMP Multi PC Projection or Epson iProjection Parent topic: Using BrightLink Without a Computer...
Page 198: Splitting The Screen
DCMS/Publications/Projectors/Source/Interactive/Tasks/screen_splitting_blp1420wi.xml Splitting the Screen You can split the screen and project from two sources at the same time. You can annotate and interact with both sources. 1. Select the Split tool on the bottom toolbar. You see a screen like this: /DCMS/Publications/Projectors/Source/Images/Menus/BLP1420Wi_1430Wi/split_screen_select_source.j 2.
Page 199 4. Do any of the following as necessary: • To change to a different source at any time, press the Menu button on the remote control and select Source, or press the Split icon on the bottom toolbar. • To use PC interactive mode on the right screen, press the Menu button on the remote control, select Target Pen Mode, and select Screen Right.
Page 200: Selecting Interactive Split Screen Settings
DCMS/Publications/Projectors/Source/Interactive/Tasks/screen_splitting_selecting_settings.xml Selecting Interactive Split Screen Settings You can select split screen projection settings using the projector control toolbar. 1. Select the Split icon on the projector control toolbar. 2. Select the tab. You see a screen like this: /DCMS/Publications/Projectors/Source/Images/Interactive/BL695Wi_696Ui/interactive_split_screen_settin gs_bl695wi.jpg 3.
Page 201: Using Interactive Features With Two Projectors
4. Select the icon to exit the settings screen. Parent topic: Splitting the Screen DCMS/Publications/Projectors/Source/Interactive/Concepts/using_interactive_features_with_two_projectors.xml Using Interactive Features with Two Projectors You can use your projector's interactive features while projecting with two projectors installed side by side. To get started, install the software from the Easy Interactive Function CD. See the installation guide that came with your projector mount for instructions on installing multiple projectors and selecting settings for interactive features.
Page 202 You see a screen like this: /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_home_pl685w_bl695wi.jpg 2. Press the icon.
Page 203 You see a screen like this: /DCMS/Publications/Projectors/Source/Images/Menus/BL695Wi/home_screen_interactive_bl695wi_bl696 ui.jpg 3. Set the Use this single projector setting to On. You can now use the interactive features on the current projector only. When the projector turns off, the Use this single projector setting returns to Off. Parent topic: Using Interactive Features with Two Projectors...
Page 204: Adjusting The Menu Settings
DCMS/Publications/Projectors/Source/Menus/Container_Topics/adjust_menus_container.xml Adjusting the Menu Settings Follow the instructions in these sections to access the projector menu system and change projector settings. Using the Projector's Menus Image Quality Settings - Image Menu Input Signal Settings - Signal Menu Projector Feature Settings - Settings Menu Projector Setup Settings - Extended Menu Projector Network Settings - Network Menu Projector Setup Settings - ECO Menu...
Page 205 You see the menu screen displaying the Image menu settings. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_image_pl685w.jpg 2. Press the up or down arrow button to move through the menus listed on the left. The settings for each menu are displayed on the right. Note: The available settings depend on the current input source. 3.
Page 206: Image Quality Settings - Image Menu
DCMS/Publications/Projectors/Source/Menus/Reference/PL670_BL695Wi/menu_image_settings_pl670_bl695Wi.xml Image Quality Settings - Image Menu Settings on the Image menu let you adjust the quality of your image for the input source you are currently using. The available settings depend on the currently selected input source. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_image_pl685w.jpg To change settings for an input source, make sure the source is connected and select that source. Setting Options Description...
Page 207 Setting Options Description Sharpness Varying levels available Adjusts the sharpness or softness of image details Color Temp. (color temperature) Color Temp. Color Temp.: Sets the overall color tone. Lower values tint the Customized image red, and higher values tint the image blue. Customized: Adjusts the intensity of individual hues in the image...
Page 208: Input Signal Settings - Signal Menu
Note: The Brightness setting does not affect lamp brightness. To change the lamp brightness mode, use the Power Consumption setting. Parent topic: Adjusting the Menu Settings Related references Available Image Aspect Ratios Available Color Modes DCMS/Publications/Projectors/Source/Menus/Reference/PL670_BL695Wi/menu_signal_settings_pl670_bl695wi.xml Input Signal Settings - Signal Menu Normally the projector detects and optimizes the input signal settings automatically.
Page 209 Setting Options Description Resolution Auto Sets the input signal resolution if not detected automatically using the Wide Auto option Normal Aspect See the list of available aspect Sets the aspect ratio (width-to- ratios height ratio) for the selected input source Overscan Auto Changes the projected image ratio...
Page 210 Setting Options Description Advanced HDMI Video Range HDMI Video Range: Sets the video range to match the setting of the Input Signal device connected to the HDMI input Video Signal port • Auto: detects the video range automatically • Normal: normally for images from a device other than a computer;...
Page 211: Projector Feature Settings - Settings Menu
DCMS/Publications/Projectors/Source/Menus/Reference/PL670_BL695Wi/menu_settings_settings_pl670_585w.xml Projector Feature Settings - Settings Menu Options on the Settings menu let you customize various projector features. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_settings_pl685w.jpg Setting Options Description Geometry Correction H/V Keystone Adjusts image shape to rectangular (horizontally and Quick Corner vertically) Arc Correction H/V Keystone: lets you manually correct horizontal and vertical sides Quick Corner: select to correct...
Page 212 Setting Options Description Split Screen — Divides the viewing area horizontally and displays two images side-by-side; while in Split Screen mode, press Menu to display the Split Screen options or Esc to cancel split screen display Zoom Varying levels available Adjusts the size of the projected image Image Shift...
Page 213 Setting Options Description Lock Setting Control Panel Lock Controls projector button locking to secure the projector Full Lock: locks all buttons Partial Lock: locks all buttons except the power button Off: no buttons locked Pointer Shape Three shapes available Changes the shape of the remote control pointer feature Mic Input Level Varying levels available...
Page 214 Setting Options Description Pattern Pattern Display Selects various pattern display options Pattern Type Pattern Display: lets you display User Pattern the selected pattern type on the Test Pattern screen to aid in presentation Pattern Type: selects the type of grid or line pattern to display User Pattern: captures a projected screen and saves it as a pattern for display...
Page 215: Projector Setup Settings - Extended Menu
DCMS/Publications/Projectors/Source/Menus/Reference/PL670_BL695Wi/menu_extended_settings_bl685wi_695wi.x Projector Setup Settings - Extended Menu Settings on the Extended menu let you customize various projector setup features that control its operation. /DCMS/Publications/Projectors/Source/Images/Menus/BL695Wi/menu_extended_bl695wi.jpg Easy Interactive Function Settings Setting Options Description General Easy Interactive Function settings Auto Calibration — Start calibration for the interactive pens Manual Calibration...
Page 216 Setting Options Description Touch Unit Setup Installation Pattern Select settings for the Touch Unit (BrightLink 695Wi+) Power Installation Pattern: displays reference points to help you Angle Adjustment determine the installation position Touch Calibration of the Touch Unit Power: turns on the Touch Unit power Angle Adjustment: performs angle adjustment for laser...
Page 217 Setting Options Description Advanced Distance of Projectors Selects various settings for interactive features Sync of Projectors Distance of Projectors, Sync of Multi-Projection Projectors, Multi-Projection, Wired Sync Mode and Wired Sync Mode: let you adjust features for using multiple Preset Pen Thickness projectors of the same model in Eraser Size the same room...
Page 218 Setting Options Description Enable Right Click Lets you use a long pen press or finger press (BrightLink 695Wi+) as a right-click operation when using mouse mode Advanced Pen Tip Button Select pen operation and adjustment options Auto Adjust Pen Area Pen Tip Button: assign either Manual Adj.
Page 219 Setting Options Description Display Messages Selects various display options Display Background Messages: controls whether messages are displayed on the Startup Screen screen A/V Mute Display Background: selects Color Uniformity the screen color or logo to display when no signal is Toolbars received Pen Mode Icon...
Page 220 Setting Options Description User's Logo —– Creates a screen that the projector displays to identify itself and enhance security Projection Front Selects the way the projector faces the screen so the image is Front/Upside Down oriented correctly Rear Rear Upside Down...
Page 221 Setting Options Description Operation Direct Power On Selects various operation options High Altitude Mode Direct Power On: lets you turn on the projector without pressing Auto Source Search the power button Auto Power On High Altitude Mode: regulates Monitor Out Port the projector’s operating temperature at altitudes above Connect ELPCB02...
Page 222 Setting Options Description A/V Settings A/V Output Selects the following when the projector is in standby mode Audio Output (turned off): HDMI1 Audio Output A/V Output: the Always On HDMI2 Audio Output setting indicates that the projector output audio and video HDMI3 Audio Output signals even while it is standby mode;...
Page 223 Setting Options Description USB Type B Easy Interactive Function Selects what happens when you connect your computer to the USB Display/Easy Interactive projector's USB-B port Function Easy Interactive Function: lets Wireless Mouse/USB Display you use the interactive pens or your finger (BrightLink 695Wi+) with your computer USB Display/Easy Interactive Function: lets you display your...
Page 224 Setting Options Description Multi-Projection Multi-Projection Selects the following when you use multiple projectors: Projector ID Multi-Projection: matches the Color Mode display settings of multiple Color Uniformity projectors Brightness Level Projector ID: assigns an ID for the projector when you use Color Matching multiple projectors RGBCMY...
Page 225: Projector Network Settings - Network Menu
Calibrating for Finger Touch Interactivity DCMS/Publications/Projectors/Source/Menus/Reference/PL670_BL695Wi/menu_network_settings_pl670_bl695wi.xml Projector Network Settings - Network Menu Settings on the Network menu let you view network information and set up the projector for monitoring and control over a network. /DCMS/Publications/Projectors/Source/Images/Menus/BL695Wi/menu_network_bl695wi.jpg Setting Options Description Wireless Mode Wireless LAN On Enable or disable wireless communication...
Page 226 Setting Options Description Net. Info - Wireless LAN Connection mode Displays wireless network status and details Wireless LAN Sys. Antenna level Projector Name SSID DHCP IP Address Subnet Mask Gateway Address MAC Address Region Code Net. Info - Wired LAN Projector Name Displays wired network status and details...
Page 227: Projector Setup Settings - Eco Menu
Wireless Network Projection DCMS/Publications/Projectors/Source/Menus/Reference/menu_eco_settings.xml Projector Setup Settings - ECO Menu Settings on the ECO menu let you customize projector functions to save power. When you select a power-saving setting, a leaf icon appears next to the menu item. /DCMS/Publications/Projectors/Source/Images/Menus/PL670_685W/menu_eco_pl685w.jpg...
Page 228 Setting Options Description Power Consumption Auto Selects the brightness mode of the projector lamp Normal Auto: allows the projector to sense the optimum lamp ECO2 (BrightLink brightness and adjust the lamp 685Wi+/695Wi+ only) brightness accordingly Normal: sets maximum lamp brightness ECO: reduces lamp brightness and fan noise, and saves power and lamp life...
Page 229: Projector Information Display - Info Menu
Setting Options Description ECO Display Displays a leaf icon in the bottom left corner of the projected screen to indicate the power-saving status when the lamp brightness changes Note: The Power Consumption setting is disabled if you turn on the Multi-Projection setting in the Extended menu.
Page 230: Event Id Code List
Lamp Hours Displays the number of hours (H) the lamp has been used in Normal and ECO Power Consumption modes; if the information is displayed in yellow, obtain a genuine Epson replacement lamp soon Source Displays the name of the port to which the current input source is...
Page 231 If you are not using DHCP, turn off the DHCP setting in the Network menus. 0899 A communication error has occurred. Try restarting the network software and restarting your projector. If that does not solve the problem, contact Epson for help. Parent topic: Projector Information Display - Info Menu...
Page 232: Projector Reset Options - Reset Menu
DCMS/Publications/Projectors/Source/Menus/Reference/menu_reset_options_network.xml Projector Reset Options - Reset Menu You can reset most of the projector settings to their default values using the Reset All Config option on the Reset menu. You can also reset the projector's lamp usage timer to zero when you replace the lamp using the Reset Lamp Hours option.
Page 233 • Color Matching Parent topic: Adjusting the Menu Settings...
Page 234: Maintaining And Transporting The Projector
The only parts you should replace are the lamp, air filter, pen batteries and tips, and remote control batteries. If any other part needs replacing, contact Epson or an authorized Epson servicer. Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except as specifically explained in this manual.
Page 235: Cleaning The Projection Window
DCMS/Publications/Projectors/Source/Maintenance/Tasks/cleaning_projection_window.xml Cleaning the Projection Window Clean the projection window periodically, or whenever you notice dust or smudges on the surface. • To remove dust or smudges, gently wipe the projection window with lens-cleaning paper. • To remove stubborn smudges, moisten a soft, lint-free cloth with lens cleaner and gently wipe the projection window.
Page 236: Cleaning The Projector Case
Filter maintenance intervals will depend on the environment. If regular maintenance is not performed, your Epson projector will notify you when the temperature inside the projector has reached a high level. Do not wait until this warning appears to maintain your projector filter as prolonged exposure to high temperatures may reduce the life of your projector or lamp.
Page 237: Cleaning The Air Filter And Vents
DCMS/Publications/Projectors/Source/Maintenance/Tasks/cleaning_air_filter_removed.xml Cleaning the Air Filter and Vents Clean the projector's air filter or vents if they get dusty, or if you see a message telling you to clean them. Caution: Do not use water or any detergent to clean the air filter. Do not use canned air, or the gases may leave a flammable residue.
Page 238 2. Slide the air filter cover latch and open the air filter cover. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/filter_cover_open_bl695wi.
Page 239 3. Pull the air filter out of the projector. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/filter_remove_bl695wi.jpg 4. Vacuum the front of the air filter (the side with the tabs) to remove any remaining dust. /DCMS/Publications/Projectors/Source/Images/Maintenance/BL575Wi_585Wi_595Wi/filter_vacum_bl575 wi_585wi_595wi.jpg Note: If dust is difficult to remove or the air filter is damaged, replace the air filter.
Page 240 5. Place the air filter back in the projector as shown. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/filter_install_bl695wi.jpg...
Page 241 6. Close the air filter cover and slide the latch. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/filter_cover_close_bl695wi. Parent topic: Air Filter and Vent Maintenance...
Page 242: Replacing The Air Filter
DCMS/Publications/Projectors/Source/Maintenance/Tasks/replacing_air_filter_with_cover_on_wall.xml Replacing the Air Filter You need to replace the air filter in the following situations: • After cleaning the air filter, you see a message telling you to clean or replace it • The air filter is torn or damaged You can replace the air filter while the projector is mounted on the wall or ceiling.
Page 243 2. Slide the air filter cover latch and open the air filter cover. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/filter_cover_open_bl695wi.
Page 244 3. Pull the air filter out of the projector. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/filter_remove_bl695wi.jpg Note: Air filters contain polypropylene. Dispose of used air filters according to local regulations.
Page 245 4. Place the new air filter in the projector as shown. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/filter_install_bl695wi.jpg...
Page 246 5. Close the air filter cover and slide the latch. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/filter_cover_close_bl695wi. Parent topic: Air Filter and Vent Maintenance...
Page 247: Projector Lamp Maintenance
DCMS/Publications/Projectors/Source/Maintenance/Concepts/maint_lamp.xml Projector Lamp Maintenance The projector keeps track of the number of hours the lamp is used and displays this information in the projector's menu system. Replace the lamp as soon as possible when the following occurs: • The projected image gets darker or starts to deteriorate •...
Page 248 3. Use the screwdriver included with the replacement lamp to loosen the screw securing the lamp cover. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/lamp_cover_screw_remov e_bl695wi.jpg 4. Slide off the lamp cover. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/lamp_cover_remove_bl69 5wi-01.jpg...
Page 249 5. Loosen the screws securing the lamp to the projector. The screws do not come all the way out. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/lamp_screw_remove_bl69 5wi.jpg 6. Lift up the lamp handle and gently pull the lamp out of the projector. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/lamp_handle_remove_pl6 85w_bl695wi.jpg...
Page 250 Note: The lamp(s) in this product contain mercury. Please consult your state and local regulations regarding disposal or recycling. Do not put in the trash. 7. Gently insert the new lamp into the projector along the guide rail. If it does not fit easily, make sure it is facing the right way.
Page 251 8. Tighten the screws to secure the lamp. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/lamp_screw_install_bl695 wi-01.jpg 9. Replace the lamp cover and tighten the screw to secure it. /DCMS/Publications/Projectors/Source/Images/Maintenance/PL670_BL695Wi/lamp_cover_close_screw_ bl695wi.jpg...
Page 252: Resetting The Lamp Timer
Note: Be sure the lamp cover is securely installed or the lamp will not come on. Reset the lamp timer to zero to keep track of the new lamp’s usage. Parent topic: Projector Lamp Maintenance Related tasks Resetting the Lamp Timer DCMS/Publications/Projectors/Source/Maintenance/Tasks/resetting_lamp_timer.xml Resetting the Lamp Timer You must reset the lamp timer after replacing the projector's lamp to clear the lamp replacement...
Page 253: Replacing The Remote Control Batteries
5. Select Yes and press Enter. 6. Press Menu or Esc to exit the menus. Parent topic: Projector Lamp Maintenance Related tasks Replacing the Lamp DCMS/Publications/Projectors/Source/Maintenance/Tasks/replacing_remote_batteries_typeab.xml Replacing the Remote Control Batteries The remote control uses two AA manganese or alkaline batteries. Replace the batteries as soon as they run out.
Page 254 3. Insert the batteries with the + and – ends facing as shown. /DCMS/Publications/Projectors/Source/Images/Remote_Controls/TypeAB/battery_insertion_ex7230_plw2 8p.jpg 4. Replace the battery cover and press it down until it clicks into place. /DCMS/Publications/Projectors/Source/Images/Setup/battery_cover_close_typeab.jpg Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame.
Page 255: Replacing The Soft Pen Tips
DCMS/Publications/Projectors/Source/Maintenance/Tasks/replacing_pen_tips_soft_bl685wi_blp1460ui.xml Replacing the Soft Pen Tips If the pen tips become damaged or no longer work correctly, you can replace them. 1. Twist off the tip of the pen to remove it.
Page 256 2. Remove the soft tip. 3. Insert the new tip.
Page 257: Replacing The Hard Pen Tips
4. Twist on the pen tip. Parent topic: Projector Maintenance DCMS/Publications/Projectors/Source/Maintenance/Tasks/replacing_pen_tips_hard_bl685wi_blp1460ui.xml Replacing the Hard Pen Tips If the pen tips become damaged or no longer work correctly, you can replace them.
Page 258 1. Twist off the tip of the pen to remove it.
Page 259: Transporting The Projector
• When shipping the projector for repairs, place it in its original packing materials, if possible, or use equivalent materials with cushioning around the projector. Mark the box "Fragile." Note: Epson shall not be liable for any damages incurred during transportation.
Page 260 Parent topic: Maintaining and Transporting the Projector...
Page 261: Solving Problems
• The Help option on the Home screen can display information about common problems, if the projector is operating. • The solutions in this manual can help you solve many problems. If none of these solutions help, you can contact Epson for technical support. Parent topic: Solving Problems...
Page 262: Projector Light Status
DCMS/Publications/Projectors/Source/Troubleshooting/Reference/Light_Status/problem_light_status_pl570_bl595wi. Projector Light Status The lights on the projector indicate the projector status and let you know when a problem occurs. Check the status and color of the lights and look for a solution in the table here. Power light Status light Lamp light Temp (temperature) light...
Page 263 • Clean or replace the air filter. • If operating the projector at high altitude, turn on High Altitude Mode. • If the problem persists, unplug the projector and contact Epson for help.
Page 264 Epson for help. Flashing blue Flashing Flashing Auto Iris error. Turn the projector off, orange orange unplug it, and contact Epson for help. Flashing blue Orange Orange Power error. Turn the projector off, unplug it, and contact Epson for help. Flashing blue Flashing Internal projector error.
Page 265: Using The Projector Help Displays
Where to Get Help Related tasks Cleaning the Air Filter and Vents Replacing the Air Filter Replacing the Lamp DCMS/Publications/Projectors/Source/Troubleshooting/Tasks/problem_help_using_home_screen.xml Using the Projector Help Displays You can display information to help you solve common problems using the projector's Help system. 1.
Page 266: Solutions When No Image Appears
Solutions When the Image Contains Noise or Static Solutions When the Image is Fuzzy or Blurry Solutions When the Image Brightness or Colors are Incorrect Solutions to Sound Problems Solutions to Microphone Problems Parent topic: Solving Problems DCMS/Publications/Projectors/Source/Troubleshooting/Reference/problem_no_image.xml Solutions When No Image Appears If no image appears, try the following solutions: •...
Page 267: Solutions When Image Is Incorrect Using The Usb Display Function
• For images projected with Windows Media Center, reduce the screen size from full screen mode. • For images projected from applications using Windows DirectX, turn off DirectX functions. • If the mouse cursor flickers, select Make the movement of the mouse pointer smooth in the Epson USB Display Settings program on your computer.
Page 268: Displaying From A Pc Laptop
• Press the Home button on the remote control to select from a list of available sources (shown in black text). • Turn on the connected computer or video source, and press its play button to begin your presentation, if necessary. •...
Page 269: Solutions When "Not Supported" Message Appears
1. Open the System Preferences utility and select Displays, Display, or Color LCD. 2. Click the Arrange or Arrangement tab. 3. Select the Mirror Displays checkbox. Parent topic: Solutions When "No Signal" Message Appears DCMS/Publications/Projectors/Source/Troubleshooting/Reference/problem_not_supported_message.xml Solutions When "Not Supported" Message Appears If the "Not Supported"...
Page 270: Solutions When The Image Is Not Rectangular
• Make sure you selected the correct Projection setting. • Try adjusting the image position using the Image Shift setting. Parent topic: Solving Image or Sound Problems Related references Input Signal Settings - Signal Menu Supported Video Display Formats DCMS/Publications/Projectors/Source/Troubleshooting/Reference/problem_image_shape_wall_mount.xml Solutions When the Image is Not Rectangular If the projected image is not evenly rectangular, try the following solutions: •...
Page 271: Solutions When The Image Is Fuzzy Or Blurry
• If you adjusted the image shape using the projector controls, try decreasing the Sharpness setting to improve image quality. • If you are using the USB Display function, turn off the Transfer layered window setting in the Epson USB Display Settings program on your computer.
Page 272: Solutions When The Image Brightness Or Colors Are Incorrect
• Position the projector so the keystone adjustment angle is not so wide that it distorts the image. • Adjust the Sharpness setting to improve image quality. • If you are projecting from a computer using a VGA cable, press the Auto button on the remote control to automatically adjust the tracking and sync.
Page 273: Solutions To Sound Problems
• If you are using the USB Display function, turn on the Output audio from the projector setting in the Epson USB Display Settings program on your computer. • If you are using a Mac and you do not hear sound from an HDMI source, make sure your Mac supports audio through the HDMI port.
Page 274: Solving Projector Or Remote Control Operation Problems
• If the power button on the remote control does not turn on the projector, check its batteries and make sure the Remote Receiver setting is turned on in the projector's menu, if available. • The power cord may be defective. Disconnect the cord and contact Epson. Parent topic:...
Page 275: Solutions To Problems With The Remote Control
• If you assigned an ID number to the remote control to operate multiple projectors, you may need to check or change the ID setting (feature not available with all projectors). • If you lose the remote control, you can purchase another from an authorized Epson reseller. Parent topic:...
Page 276: Solutions To Password Problems
• If you set a Web Control password and forgot the user ID or password, try entering the following: • User ID: EPSONWEB • Default password: admin • If you set a Remote password (in Epson Web Control) and forgot the user ID or password, try entering the following: • User ID: EPSONREMOTE •...
Page 277: Solutions When "Error Occurred In The Easy Interactive Function" Message Appears
DCMS/Publications/Projectors/Source/Troubleshooting/Reference/Interactive_Projector/problem_interactive_error_m essage.xml Solutions When "Error Occurred in the Easy Interactive Function" Message Appears If the "Error occurred in the Easy Interactive Function" message appears, contact Epson for help. Parent topic: Solving Interactive Problems Related references Where to Get Help DCMS/Publications/Projectors/Source/Troubleshooting/Reference/Interactive_Projector/problem_interactive_pen.xml...
Page 278: Solutions When The Interactive Pen Position Is Not Accurate
• Make sure you have calibrated the system. Try recalibrating. • Make sure the Pen Mode and Pen Operation Mode settings are set correctly in the Easy Interactive Function options on the Extended menu. • If you are using multiple interactive projectors in the same room, make sure you are using a sync cable between the projectors and that the Easy Interactive Function >...
Page 279: Solutions When The Interactive Pens Are Slow Or Difficult To Use
• For the best performance, connect your computer to the projector using a VGA or HDMI cable for display and the USB cable for interactivity. • If you are using USB Display in Windows, you may need to disable Windows Aero in the Epson USB Display Settings program on your computer.
Page 280: Solving Network Problems
• Adjust the angle on the Touch Unit. See your projector's Touch Unit and Control Pad Installation Guide for details. • Make sure there are no obstacles (such as cables) between the Touch Unit's laser diffusion ports and the projection surface. •...
Page 281: Solutions When You Cannot Access The Projector Through The Web
Parent topic: Solving Network Problems DCMS/Publications/Projectors/Source/Troubleshooting/Reference/help_latin.xml Where to Get Help If you need to contact Epson for technical support services, use the following support options. Internet Support Visit Epson's support website at epson.com.jm/support and select your product for solutions to common problems.
Page 282 Speak to a Support Representative Before you call for support, please have the following information ready: • Product name • Product serial number (located on the bottom or rear of the projector, or in menu system) • Proof of purchase (such as a store receipt) and date of purchase •...
Page 283 Purchase Supplies and Accessories You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, go to epson.com.jm. Or you can contact your nearest sales office as described in "Where to Get Help".
Page 284: Technical Specifications
DCMS/Publications/Projectors/Source/Specifications/Container_Topics/tech_spex_container.xml Technical Specifications These sections list the technical specifications of your projector. General Projector Specifications Projector Lamp Specifications Remote Control Specifications Projector Dimension Specifications Projector Electrical Specifications Projector Environmental Specifications Projector Safety and Approvals Specifications Supported Video Display Formats USB Display System Requirements DCMS/Publications/Projectors/Source/Specifications/Reference/BL685Wi_695Wi/spex_general_bl685wi_695wi.xml General Projector Specifications Type of display...
Page 285 Brightness BrightLink 685Wi+/695Wi+ Normal Power Consumption mode: White light output 3500 lumens (ISO 21118 standard) Color light output 3500 lumens ECO Power Consumption mode: White light output 2900 lumens (ISO 21118 standard) Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions.
Page 286: Projector Lamp Specifications
USB Type B port compatibility One USB 2.0 compliant for USB Display, external mouse, firmware update, or interactivity USB Type A port compatibility One USB 1.1 and 2.0 compliant port for USB device input, wireless LAN unit, or Epson document camera display Parent topic: Technical Specifications DCMS/Publications/Projectors/Source/Specifications/Reference/BL685Wi_695Wi/spex_lamp_bl685wi_696wi.xml...
Page 287: Remote Control Specifications
BrightLink 675Wi+ Normal Power Consumption mode: up to about 5000 hours ECO Power Consumption mode: up to about 10000 hours Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon mode selected, environmental conditions, and usage.
Page 288 BrightLink 675Wi+ 100 to 240 VAC ±10% 3.4 to 1.5 A Power consumption BrightLink 685Wi+/695Wi+ (100 to 120 V) Operating: Normal Power Consumption mode: 373 W ECO Power Consumption mode: 324 W ECO2 Power Consumption mode: 324 W Standby: 0.23 W (Energy Saving), 2.2 W (Networked Standby) BrightLink 675Wi+ Operating: Normal Power Consumption mode: 333 W...
Page 289: Projector Environmental Specifications
BrightLink 675Wi+ Operating: Normal Power Consumption mode: 317 W ECO Power Consumption mode: 230 W Standby: 0.37 W (Energy Saving), 2.3 W (Networked Standby) Parent topic: Technical Specifications DCMS/Publications/Projectors/Source/Specifications/Reference/BL685Wi_695Wi/spex_environmental_bl685wi_695wi .xml Projector Environmental Specifications Temperature Single projector: Operating up to 7500 feet (2286 m): 41 to 104 °F (5 to 40 °C) Operating up to 9854 feet (3000 m): 41 to 95 °F (5 to 35 °C) Storage: 14 to 140 °F (–10 to 60 °C) Multiple projectors:...
Page 290: Projector Safety And Approvals Specifications
For best results, your computer's monitor port or video card resolution should be set to display in the projector's native resolution. However, your projector includes Epson's SizeWise chip that supports other computer display resolutions, so your image will be resized to fit automatically.
Page 291 Display format Refresh rate (in Hz) Resolution (in pixels) SXGA 70/75/85 1152 × 864 60/75/85 1280 × 1024 60/75/85 1280 × 960 SXGA+ 60/75 1400 × 1050 WSXGA+ 1680 × 1050 UXGA 1600 × 1200 Composite video TV (NTSC) 720 × 480 TV (SECAM) 720 ×...
Page 292: Usb Display System Requirements
Display format Refresh rate (in Hz) Resolution (in pixels) SXGA 1280 × 960 1280 × 1024 SXGA+ 1400 × 1050 UXGA 1600 × 1200 SDTV (480i/480p) 720 × 480 SDTV (576i/576p) 720 × 576 HDTV (720p) 50/60 1280 × 720 HDTV (1080i) 50/60 1920 ×...
Page 293 Requirement Windows Operating system Windows Vista Ultimate, Enterprise, Mac OS X 10.5.x (32-bit), and Business, Home Premium, and Home 10.6.x, 10.7.x, 10.8.x, 10.9.x, Basic (32-bit) 10.10.x, and 10.11.x (32- and 64- bit); macOS 10.12.x (32- and 64-bit) Windows 7 Ultimate, Enterprise, Professional, and Home Premium (32- and 64-bit);...
Page 294: Notices
DCMS/Publications/Projectors/Source/Notices/Container_Topics/notices_container.xml Notices Check these sections for important notices about your projector. Important Safety Information Important Safety Instructions List of Safety Symbols (corresponding to IEC60950-1 A2) FCC Compliance Statement Open Source Software License Trademarks Copyright Notice DCMS/Publications/Projectors/Source/Notices/Reference/important_safety_info.xml Important Safety Information Caution: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes.
Page 295 • Do not place your hand or any object near the projection window. The high temperature of this area could cause burns, fire, or other damage. • Do not place the projector on an unstable cart, stand, or table. • Do not operate the projector on its side, or while tilted to one side. Do not tilt the projector more than 3° forward or back.
Page 296 • If you are using two or more projectors side-by-side, leave at least 2 feet (60 cm) of space between the projectors to allow for proper ventilation. • You may need to clean the air filter and vent. A clogged air filter or vent can block ventilation needed to cool the projector.
Page 297 • Do not store the projector outside of the required temperature range of 14 to 140 °F (–10 to 60 °C) or in direct sunlight for long periods of time. Doing so may cause damage to the case. • Do not place anything that can become warped or damaged by heat near the exhaust vents. Do not bring your hands or face close to the vents while projection is in progress.
Page 298: Restriction Of Use
DCMS/Publications/Projectors/Source/Notices/Reference/safety_instructions_restriction_of_use.xml Restriction of Use When this product is used for applications requiring high reliability/safety such as transportation devices related to aviation, rail, marine, automotive; disaster prevention devices; various safety devices; or functional/precision devices, you should use this product only after giving consideration to including fail- safes and redundancies into your design to maintain safety and total system reliability.
Page 299 Symbol Approved Standards Description IEC60417 Caution, hot surface No.5041 To indicate that the marked item can be hot and should not be touched without taking care. IEC60417 Caution, risk of electric shock No.6042 To identify equipment that has risk of electric shock.
Page 300 Symbol Approved Standards Description — Positioning of cell To identify the battery holder itself and to identify the positioning of the cell(s) inside the battery holder. IEC60417 Protective earth No.5019 To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth electrode.
Page 301 Symbol Approved Standards Description ISO 3864 Contact prohibition To indicate injury that could occur due to touching a specific part of the equipment. — Never look into the optical lens while the projector is on. — To indicate that the marked item don’t place anything on projector.
Page 302: Fcc Compliance Statement
License Version 2 or later version ("GPL Programs"). We provide the source code of the GPL Programs until five (5) years after the discontinuation of same model of this projector product. If you desire to receive the source code of the GPL Programs, contact Epson.
Page 303 • patches • udhcp 0.9.8 • wireless_tools 29 • dbus-1.6.18 • EPSON original drivers • Stonestreet One Drivers The GNU General Public License Version 2 is as follows. You also can see the GNU General Public License Version 2 at http://www.gnu.org/licenses/.
Page 304 this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights.
Page 305 You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the...
Page 306 b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange;...
Page 307 For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.
Page 308 PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
Page 309 We provide the source code of the LGPL Programs until five (5) years after the discontinuation of same model of this projector product. If you desire to receive the source code of the LGPL Programs, please contact Epson. These LGPL Programs are WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Page 310 • grencode-3.4.2 • libnl-3.2.24 • glibc-2.17 The GNU Lesser General Public License Version 2 is as follows. You also can see the GNU Lesser General Public License Version 2 at http://www.gnu.org/licenses/. GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc.
Page 311 We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library. To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.
Page 312 contains code derived from the library, whereas the latter must be combined with the library in order to run. GNU LESSER GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License").
Page 313 c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License. d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.
Page 314 If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.
Page 315 the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.) b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version...
Page 316 9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.
Page 317 Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.
Page 318 <one line to give the library's name and a brief idea of what it does.> Copyright (C) <year> <name of author> This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation;...
Page 319 This distribution contains the sixth public release of the Independent JPEG Group's free JPEG software. You are welcome to redistribute this software and to use it for any purpose, subject to the conditions under LEGAL ISSUES, below. LEGAL ISSUES ============ In plain English: 1.
Page 320 ansi2knr.c is included in this distribution by permission of L. Peter Deutsch, sole proprietor of its copyright holder, Aladdin Enterprises of Menlo Park, CA. ansi2knr.c is NOT covered by the above copyright and conditions, but instead by the usual distribution terms of the Free Software Foundation; principally, that you must include source code if you redistribute it.
Page 321 If you modify libpng you may insert additional notices immediately following this sentence. This code is released under the libpng license. libpng versions 1.2.6, August 15, 2004, through 1.2.49, March 29, 2012, are Copyright (c) 2004, 2006- 2009 Glenn Randers-Pehrson, and are distributed according to the same disclaimer and license as libpng-1.2.5 with the following individual added to the list of Contributing Authors Cosmin Truta libpng versions 1.0.7, July 1, 2000, through 1.2.5 - October 3, 2002, are Copyright (c) 2000-2002 Glenn...
Page 322 libpng versions 0.5, May 1995, through 0.88, January 1996, are Copyright (c) 1995, 1996 Guy Eric Schalnat, Group 42, Inc. For the purposes of this copyright and license, "Contributing Authors" is defined as the following set of individuals: Andreas Dilger Dave Martindale Guy Eric Schalnat Paul Schmidt...
Page 323 zlib This projector product includes the open source software program "zlib" which applies the terms and conditions provided by owner of the copyright to the "zlib". The "zlib" are WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. List of zlib programs •...
Page 324 aes-src-29-04-09 This projector product includes the open source software program "aes-src-29-04-09" which applies the terms and conditions provided by owner of the copyright to the "aes-src-29-04-09". The "aes-src-29-04-09" are WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. List of aes-src-29-04-09 programs •...
Page 325 The newlib subdirectory is a collection of software from several sources. Each file may have its own copyright/license that is embedded in the source file. Unless otherwise noted in the body of the source file(s), the following copyright notices will apply to the contents of the newlib subdirectory: (1) Red Hat Incorporated Copyright (c) 1994-2007 Red Hat, Inc.
Page 326 The author of this software is David M. Gay. Copyright (c) 1991 by AT&T. Permission to use, copy, modify, and distribute this software for any purpose without fee is hereby granted, provided that this entire notice is included in all copies of any software which is or includes a copy or modification of this software and in all copies of the supporting documentation for such software.
Page 327 So that all may benefit from your experience, please report any problems or suggestions about this software to the 29K Technical Support Center at 800-29-29-AMD (800-292-9263) in the USA, or 0800- 89-1131 in the UK, or 0031-11-1129 in Japan, toll free. The direct dial number is 512-462-4118. Advanced Micro Devices, Inc.
Page 328 Permission to use, copy, modify, and distribute this software is freely granted, provided that the above copyright notice, this notice and the following disclaimer are preserved with no changes. THIS SOFTWARE IS PROVIDED "AS IS" AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Page 329 So that all may benefit from your experience, please report any problems or suggestions about this software to the SuperH Support Center via e-mail at softwaresupport@superh.com. SuperH, Inc. 405 River Oaks Parkway San Jose CA 95134 (13) Royal Institute of Technology Copyright (c) 1999 Kungliga Tekniska Högskolan (Royal Institute of Technology, Stockholm, Sweden).
Page 330 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTORS "AS IS"...
Page 331 All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Page 332 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
Page 333 All rights reserved. Redistribution and use in source and binary forms is permitted provided that the above copyright notice and following paragraph are duplicated in all such forms. This file is distributed WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
Page 334 THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;...
Page 335 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTORS "AS IS"...
Page 336 Copyright (c) 1998, M. Warner Losh <imp@freebsd.org> All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Page 337 OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. (33) - Daniel Eischen (targets using libc/posix) Copyright (c) 2001 Daniel Eischen <deischen@FreeBSD.org>. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1.
Page 338 MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL ARM LTD BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED...
Page 339 * * Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. * * Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. * * Neither the name of MIPS Technologies Inc.
Page 340 http://jquery.com/ Copyright (c) Nicolas Gallagher and Jonathan Neal Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial...
Page 341 Foundation, consents to the use, reproduction, alteration, and redistribution (hereafter called utilization) of this software (this software includes alterations, likewise below) without compensation. (1) When this software is utilized in the form of source code, the above copyright declaration, these conditions of utilization, and the following stipulation of no guarantee shall be included in unchanged form inside the source code.
Page 342 (1) FreeBSD Copyright (c) 1980, 1986, 1993 The Regents of the University of California. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Page 343 (1) When this software is utilized in the form of source code, the above copyright declaration, these conditions of utilization, and the following stipulation of no guarantee shall be included in unchanged form inside the source code. (2) When this software is redistributed in a form in which it can be used in the development of other software, library form, etc., the above copyright display, these terms of utilization, and the following stipulation of no guarantee shall be inserted in documentation accompanying redistribution (user's manual, etc.).
Page 344 ----------- This software may be distributed, used, and modified under the terms of BSD license: Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Page 345 - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the 'incremental' nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
Page 346 The basic library functions are written in C and are freestanding. Also included in the distribution is a set of C++ wrapper functions, and a just-in-time compiler that can be used to optimize pattern matching. These are both optional features that can be omitted when the library is built. THE BASIC LIBRARY FUNCTIONS ----------- Written by: Philip Hazel...
Page 347 Contributed by: Google Inc. Copyright (c) 2007-2012, Google Inc. All rights reserved. THE "BSD" LICENCE ----------- Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: * Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Page 348: Trademarks
, and Quick Corner are registered trademarks; Epson iProjection is a trademark; and EPSON Exceed Your Vision is a registered logomark of Seiko Epson Corporation. Mac, App Store, and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
Page 349: Copyright Notice
Seiko Epson Corporation. The information contained herein is designed only for use with this Epson product. Epson is not responsible for any use of this information as applied to other products.
Page 350: Copyright Attribution
Parent topic: Copyright Notice DCMS/Publications/Projectors/Source/Notices/Reference/BL685Wi_695Wi_Plus/copyright_date_number_bl675wi_695 wi_plus_le.xml Copyright Attribution © 2017 Epson America, Inc. 2/17 CPD-50675 Parent topic: Copyright Notice...

This manual is also suitable for:

Brightlink 685wi+Brightlink 695wi+

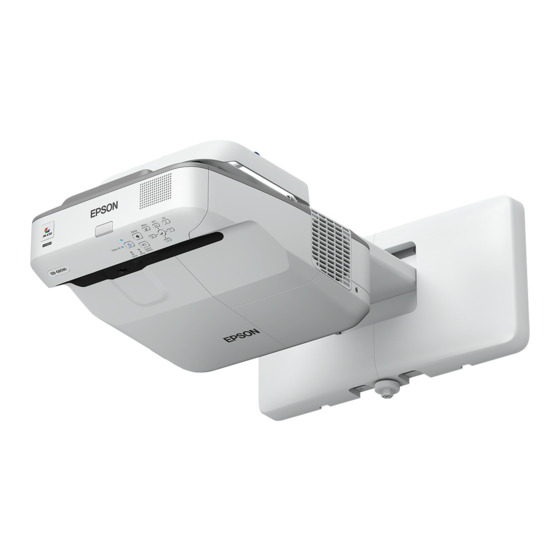

Epson BrightLink 675Wi+ User Manual

Quick Links

Related Manuals for Epson BrightLink 675Wi+

Summary of Contents for Epson BrightLink 675Wi+
