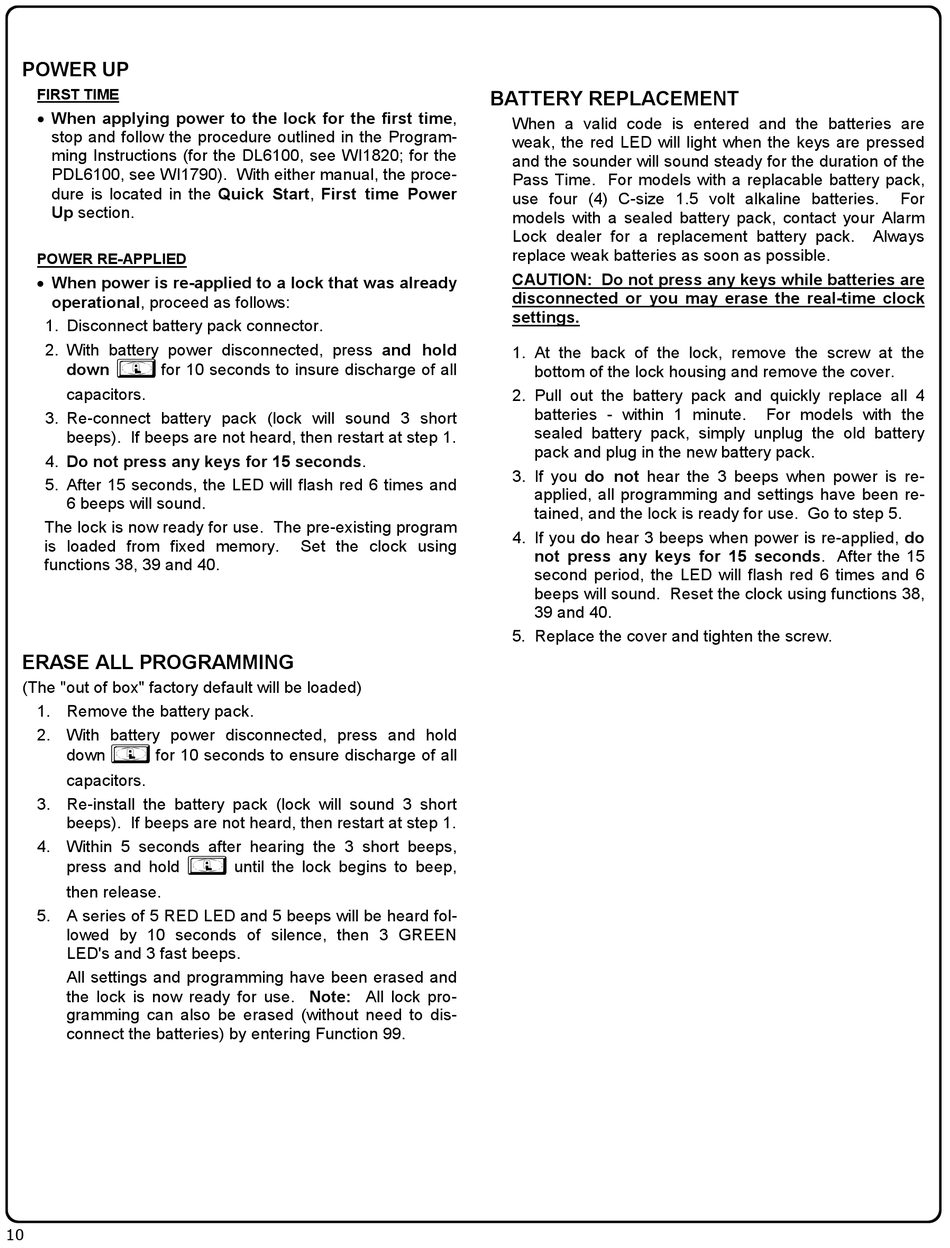

POWER UP
FIRST TIME
• When applying power to the lock for the first time,
stop and follow the procedure outlined in the Program-
ming Instructions (for the DL6100, see WI1820; for the
PDL6100, see WI1790). With either manual, the proce-
dure is located in the Quick Start, First time Power
Up section.
POWER RE-APPLIED
• When power is re-applied to a lock that was already
operational, proceed as follows:
1. Disconnect battery pack connector.
2. With battery power disconnected, press and hold
down ; for 10 seconds to insure discharge of all
capacitors.
3. Re-connect battery pack (lock will sound 3 short
beeps). If beeps are not heard, then restart at step 1.
4. Do not press any keys for 15 seconds.
5. After 15 seconds, the LED will flash red 6 times and
6 beeps will sound.
The lock is now ready for use. The pre-existing program
is loaded from fixed memory.
functions 38, 39 and 40.

ERASE ALL PROGRAMMING

(The "out of box" factory default will be loaded)
1. Remove the battery pack.
2. With battery power disconnected, press and hold
down ; for 10 seconds to ensure discharge of all
capacitors.
3. Re-install the battery pack (lock will sound 3 short
beeps). If beeps are not heard, then restart at step 1.
4. Within 5 seconds after hearing the 3 short beeps,
press and hold ; until the lock begins to beep,
then release.
5. A series of 5 RED LED and 5 beeps will be heard fol-
lowed by 10 seconds of silence, then 3 GREEN
LED's and 3 fast beeps.
All settings and programming have been erased and
the lock is now ready for use. Note: All lock pro-
gramming can also be erased (without need to dis-
connect the batteries) by entering Function 99.
10
Set the clock using

BATTERY REPLACEMENT

When a valid code is entered and the batteries are
weak, the red LED will light when the keys are pressed
and the sounder will sound steady for the duration of the
Pass Time. For models with a replacable battery pack,
use four (4) C-size 1.5 volt alkaline batteries.
models with a sealed battery pack, contact your Alarm
Lock dealer for a replacement battery pack.
replace weak batteries as soon as possible.
CAUTION: Do not press any keys while batteries are
disconnected or you may erase the real-time clock
settings.
1. At the back of the lock, remove the screw at the
bottom of the lock housing and remove the cover.
2. Pull out the battery pack and quickly replace all 4
batteries - within 1 minute.
sealed battery pack, simply unplug the old battery
pack and plug in the new battery pack.
3. If you do not hear the 3 beeps when power is re-
applied, all programming and settings have been re-
tained, and the lock is ready for use. Go to step 5.
4. If you do hear 3 beeps when power is re-applied, do
not press any keys for 15 seconds. After the 15
second period, the LED will flash red 6 times and 6
beeps will sound. Reset the clock using functions 38,
39 and 40.
5. Replace the cover and tighten the screw.
For
Always
For models with the
