WIRELESS LOCK CONFIGURATION OVERVIEW

PDL6100 & DL6100
™
The Trilogy Networx PDL6100 and DL6100 series door locks
allow you to upload and download programming features wire-
lessly using a computer connected to a computer network. With
"wireless" communication, the various cables and/or AL-DTM
Data Transfer Module devices are NOT required to transfer data.
With a few clicks of the computer mouse, you can use your com-
puter to retrieve logs, download User Codes and program fea-
tures into and out of each PDL6100 and DL6100 series wireless
door lock in your installation.
DL-Windows software is installed on a computer that is con-
nected to a computer network; connected to this network is an
intermediate device called a Gateway that communicates to a
radio located inside each door lock. In this way, the software al-
lows full programming and control of each lock in the system.
To ensure each physical lock is identified correctly by DL-
Windows, the factory assigns each lock a unique serial number;
after locks are installed in the doors and the Gateways are
mounted, the Gateways search for new locks, allowing them to be
enrolled into the system.

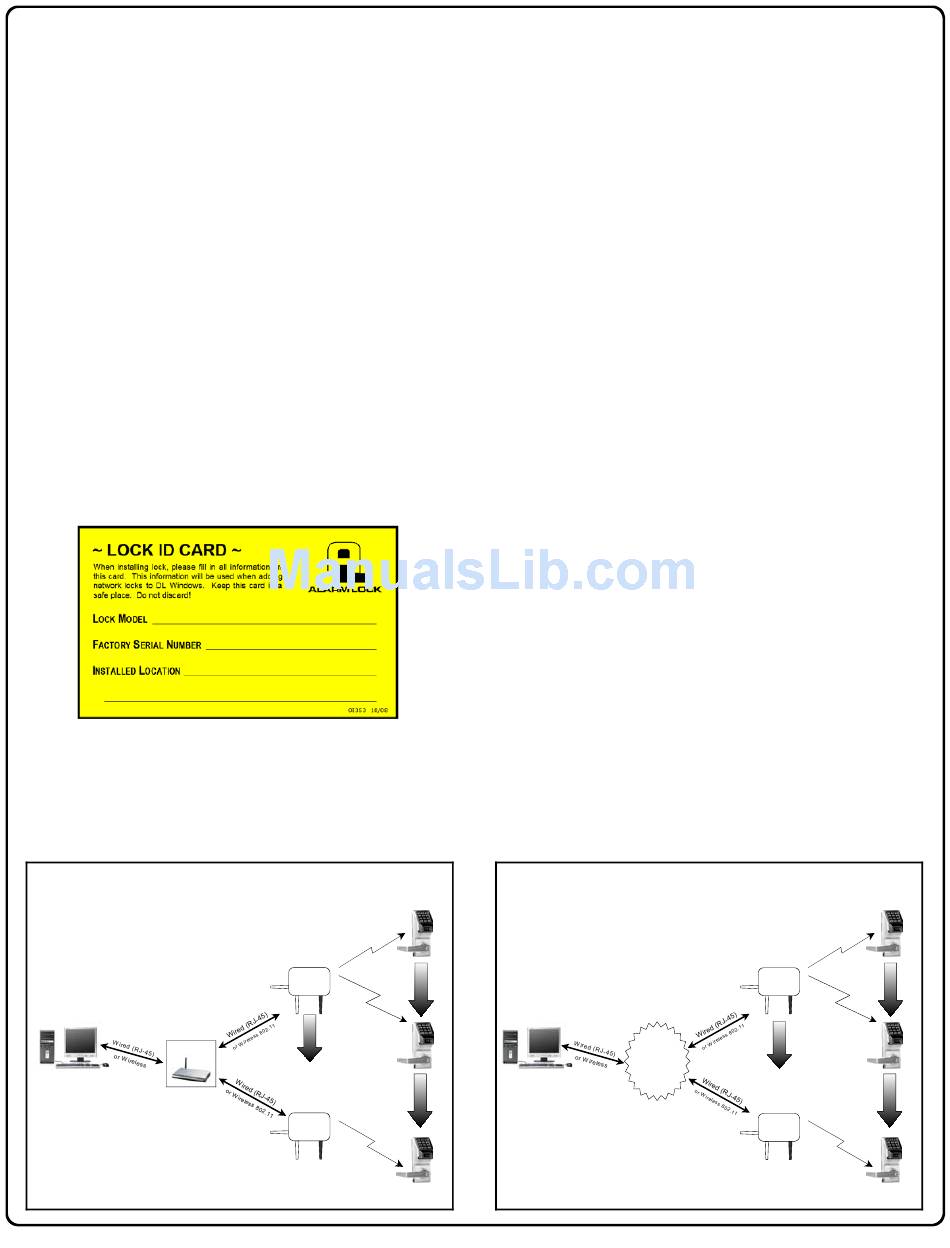

For every new wireless lock installed on a door, we recommend
that you fill out a new yellow-colored "Lock ID Card" with the
location, lock model and serial number. These ID cards are a
convenient way to keep track of and ensure all locks are enrolled
in the DL-Windows Account.
Flexible Setup
In addition to wireless communication, these wireless door locks
can also be programmed at the keypad. This means that locks
can be installed on the doors and immediately be put into use via
Small Network Support
Router
PC Running
DL-Windows
Software
Lock
#1...
Up to 63 locks for
each Gateway...
GATEWAY
#1
...Lock
#63
E X P A N D A B L E
...Up to 32 Gateways
for each system
GATEWAY
...Lock
#32
#2000
keypad programming--even before a wireless network is set up.
Therefore, you can install the locks on the doors before configur-
ing the wireless network, or you can set up the wireless network
first and add locks later. If you wish, you can even start by de-
signing a "virtual" system within DL-Windows (creating new Ac-
counts, adding Users and configuring lock features, etc.), then set
up the network and install the lock hardware later. But in the end,
after your lock hardware is physically installed and the network is
up and running, you can run DL-Windows to link the "virtual" sys-
tem saved on your computer with the "real" lock hardware on the
doors.
Note: Keypad programming of User Codes, Features, Time
Zones, and Schedules is available as a temporary convenience to
allow the lock to be put into use before installing and configuring a
wireless network. Therefore, all lock programming added via the
keypad cannot be retrieved into DL-Windows. If you decide to
start programming your wireless lock via the keypad, we
recommend you keep hardcopy records (in a secure location) of
all Users, their User Codes, and any proximity cards that may
have been programmed. Keeping complete and accurate re-
cords saves time because after the wireless network is set up,
any programming added via the keypad must be re-added to DL-
Windows and downloaded back to the lock(s).

Ordering Information

PDL6100/26D - Cylindrical Trilogy
Control Lock with built in HID Proximity ID Card Reader, full-
metal digital keypad, integral bi-directional radio, 4 C-cell bat-
tery-operated (batteries supplied), serial number ID card, stan-
dard format SCI keyway for manual key override, 4⅞" ASA
Strike (included).
DL6100/26D - Cylindrical Trilogy Networx PIN-Code Wireless
Access Control Lock, as above, with full-metal digital keypad
only.
This manual includes the hardware installation instructions for the
PDL6100 and the DL6100 door locks. The diagrams below detail
the typical small and large system configurations.
Large Network Support
Existing
Corporate
Ethernet
PC Running
Network
DL-Windows
Software
® ™
Networx Wireless Access
Lock
#1...
Up to 63 locks for
each Gateway...
GATEWAY
#1
...Lock
#63
E X P A N D A B L E
...Up to 32 Gateways
for each system
GATEWAY
...Lock
#32
#2000
