9. ATTACHING LEVERS AND LOCKSETS

Interchangeable Core (IC) Models:
Skip to the section, "INTERCHANGEABLE (IC) LOCKS"
below.
Standard Levers and Cylinders:
Standard levers and standard lock cylinders are both in-
cluded in non-IC lock models.
a. Install the tailpiece, cylinder retainer and cylinder into
the standard lever as shown in Fig. 20.

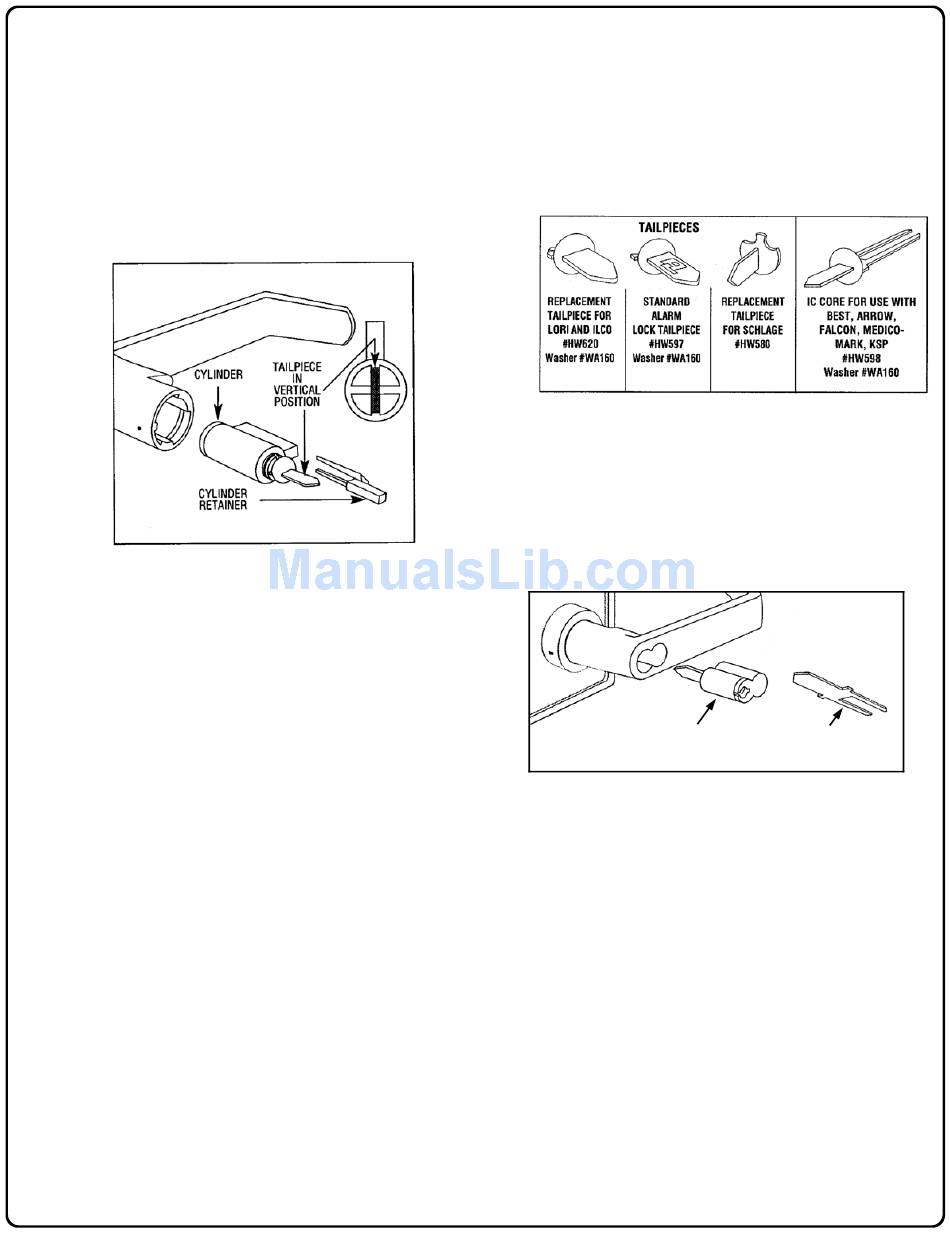

FIG. 20: STANDARD CYLINDER-LEVER, TAILPIECE
b. Attach the primary side lever by first inserting the
metal key into the primary side lock cylinder and turn-
ing the key 45° in either direction.
c. Insert the lever on the spindle and push the lever in
until it engages with the lever catch (it may be neces-
sary to turn the key back and forth while installing the
lever).
d. Install the secondary side lever in the same manner
as the primary.
d. Test both levers to be sure they are on securely and
operate without binding. Be sure the primary side key
retracts the latch when the key is turned in either di-
rection.
BE SURE TO TEST THE LEVERS AND CYLINDERS
FOR PROPER OPERATION BEFORE CLOSING
DOOR.

INTERCHANGEABLE (IC) LOCKS

Interchangeable (IC) cores require special levers. If neces-
sary, remove both the primary and secondary standard lev-
ers (with their standard cylinders) before proceeding. (To
remove standard primary or secondary levers, insert key
into cylinder, turn key 45° in either direction, depress the
lever catch and pull off lever).
Interchangeable (IC) cores and their specialized levers are
both available from your Alarm Lock dealer.

INSTALL INTERCHANGEABLE (IC) CORES

1. Insert primary side IC lever on spindle and push in until it
engages with the lever catch.
8
AND RETAINER.
2. Insert control key in primary side core and turn clock-
wise.
3. Insert IC core tailpiece (shown in Fig. 21 and Fig. 22) into
primary side core. Note: With the PDL/DL6100 locks,
tailpieces are used in primary side cores only.
ONLY an Alarm Lock
4. With control key in primary side core, insert core fully into
lever.
5. Turn key counterclockwise and remove control key.
FIG. 21: STANDARD AND IC CORE TAILPIECE VARIETIES
6. Insert secondary side IC lever on spindle and push in
until it engages with the lever catch.
7. Insert control key in secondary side core and turn clock-
wise. Do NOT insert tailpiece into secondary side core.
8. With control key in secondary side core, insert core fully
into lock.
9. Turn key counterclockwise and remove key.
INTERCHANGEABLE
(IC) CORE
FIG. 22: INSTALL INTERCHANGEABLE (IC) CORE

CHANGING AN EXISTING IC CORE

1. Remove the existing primary side IC core by inserting its
control key, then turning the key clockwise and pulling
the key to remove the core. Set core aside.
2. Insert Alarm Lock tailpiece with washer into new core.
3. Insert new control key into new core, turn clockwise.
4. Insert new core into lever and turn key counterclockwise
to lock in position.
5. Remove new control key.
6. Remove the existing secondary side IC core by inserting
its control key, then turning the key clockwise and pulling
the key to remove the core. Set core aside.
7. Do NOT insert a tailpiece. Insert new control key into
new core, turn clockwise.
8. Insert new core into lever and turn key counterclockwise
to lock in position.
9. Remove new control key.
©
IC core tailpiece.
INTERCHANGEABLE
(IC) CORE TAILPIECE
Use
