DOOR PREPARATION

C
L
OF DOOR
EDGE
1-3/4" (44MM)
OR
1-3/8" (35MM)
DOOR
THICKNESS

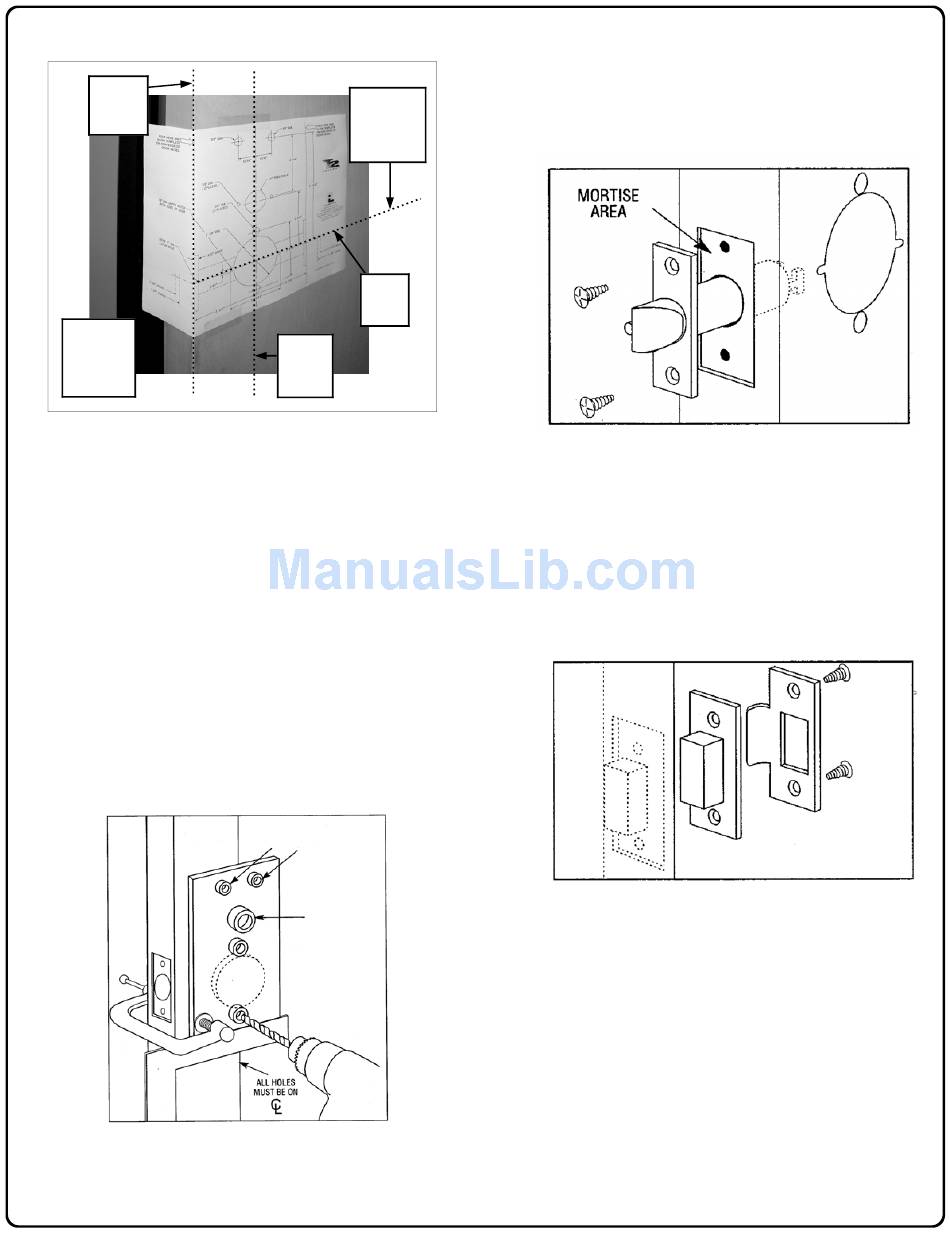

FIG. 1: FOLD AND PLACE TEMPLATE ON DOOR
1. Fold and place template on high edge of door at the rec-
ommended height from floor. See Fig. 1.
2. Mark hole centers on door and door edge.
3. Drill 3/8" thru-bolt holes first, then drill 2 1/8" hole.
For Hardwood Doors:
Notch on both sides of 2 1/8" hole to accommodate
mounting plate tabs.
For Hollow Metal Doors:
Requires horizontal and vertical lock and latch case sup-
port (provided by door manufacturer).
IMPORTANT: Be sure to remove all metal burrs from
connector cable hole--sharp edges will eventually wear
away wire insulation.
4. Drill all remaining holes in template as required.

ALARM LOCK INSTALLATION JIG

FIG. 2: ALARM LOCK INSTALLATION JIG
1. If 2 1/8" hole already exists, use optional Alarm Lock In-
stallation Jig to ensure accurate locating and drilling of
4
HORIZONTAL
C
L
OF
LEVER
MARK
HEIGHT
LINE
VERTICAL
C
L
OF
LOCK
SECONDARY MOUNTING PLATE HOLES
5/16" (8mm) diameter
CONNECTOR
CABLE HOLE
1" (25.4mm)
diameter
3/8" and 5/16" thru-bolt holes.
2. For best results, align the Installation Jig to door with a
square and clamp to door before drilling See Fig. 2.

LATCH INSTALLATION

FIG. 3: LATCH INSTALLATION
1. Drill 1" diameter hole for latch.
2. Mortise for latch front. Insert latch and fasten with two
screws supplied.
Note: It is important that both 1" and 2 1/8" holes be on
the same horizontal center line.

STRIKE INSTALLATION

FIG. 4: STRIKE INSTALLATION
1. Align strike with latch.
2. Trace strike outline on door jamb.
3. Mortise jamb and install dust box and strike.

LOCK PREPARATION

Separate the inside housing from the outside housing as
follows:
1. See Fig. 6 for an image of the inside lever catch. De-
press the inside lever catch by inserting the lever release
pin through the oval hole located in the inside housing
and through the small round hole in the lever shaft.
While depressing the lever catch, pull off the lever (jiggle
lever if needed).
