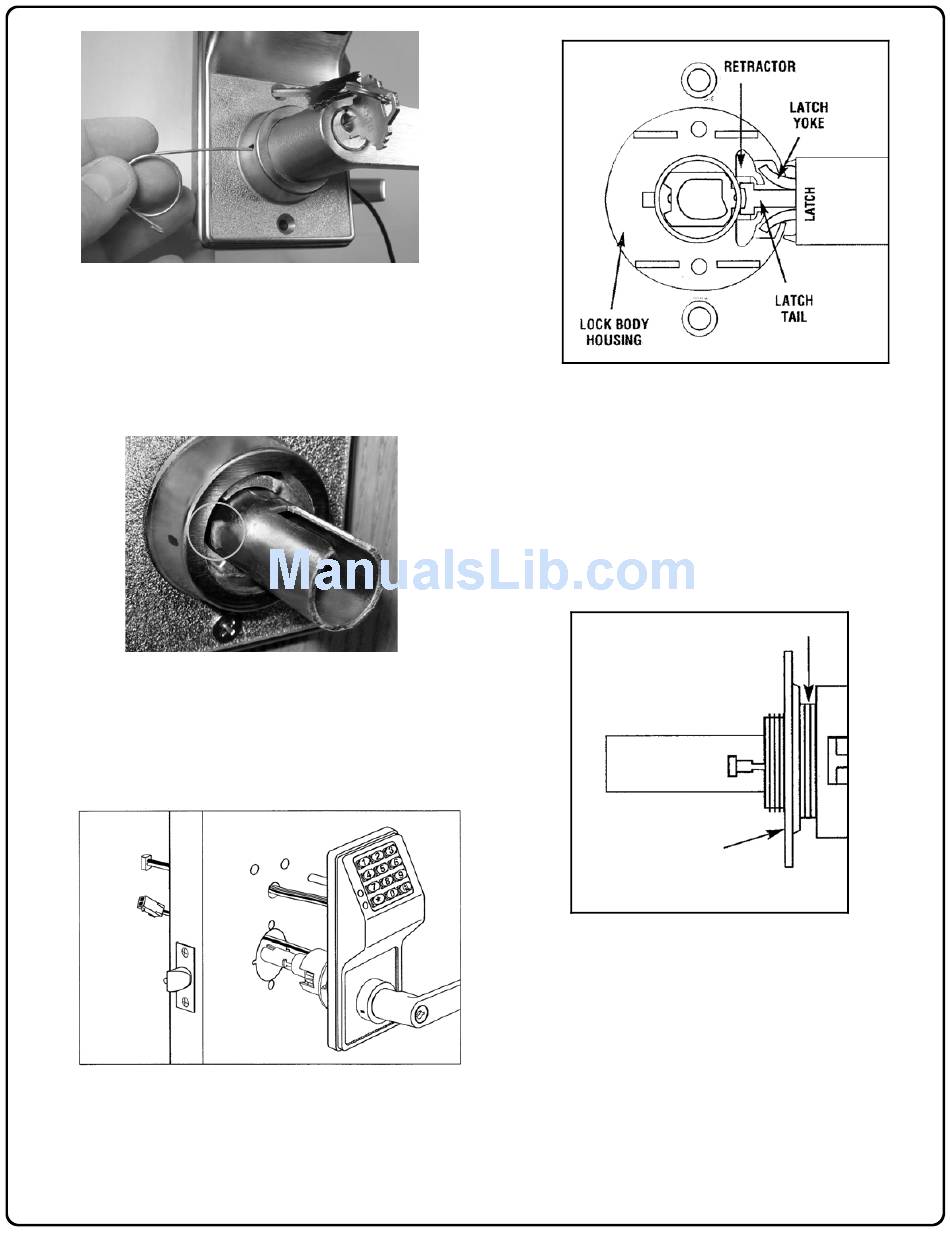

FIG. 5: INSERT LEVER RELEASE PIN TO DEPRESS THE
LEVER CATCH
2. Depressing this lever catch also allows the inside hous-
ing to be separated from the outside housing. Use a
small screwdriver to depress the lever catch (the lever
catch is circled in Fig. 6) and pull the inside housing
away from the outside housing.
FIG. 6: PUSH IN LEVER CATCH

LOCK INSTALLATION

INSTALL OUTSIDE LOCK BODY
FIG. 7: INSTALL OUTSIDE LOCK BODY
(Lever, Housing & Lock body)
1. Insert motor wire plug through the large 2 1/8" hole and
the ribbon cable through the 1" hole as shown in Fig. 7.
2. Insert outside lock body into door and be sure to properly
engage the lock body with the latch as shown in Fig. 8.
FIG. 8: VIEW FROM INSIDE OF DOOR
The latch yoke must engage the lock body housing and
the tailpiece must engage the retractor.

ADJUSTING FOR DOOR THICKNESS

Plastic spacers either add or subtract the distance between
the rose plates. Each spacer represents 1/8" of door thick-
ness. Locks are factory assembled for 1 3/4" thick doors
using 3 plastic spacers.
MOUNTING
ROSE PLATE
FIG. 9: ADJUST DOOR THICKNESS
For other door thicknesses:
1. Remove outside lever as follows: Insert key into outside
cylinder, turn clockwise 45 degrees. Depress the outside
lever catch by inserting the lever release pin through the
oval hole located in the outside housing and through the
small round hole in the lever shaft. While depressing the
lever catch, pull off the lever (jiggle lever if needed).
2. Remove outside housing and unscrew outside rose
plate.
For 1 5/8" door, remove one plastic spacer.
For 1 7/8" door, add one plastic spacer.
3. Screw mounting rose plate up to the spacers.
4. Reassemble outside housing and lever.
PLASTIC SPACERS
OUTSIDE
