REMOVING THE IC CORE & LEVER
1. Remove the existing primary or secondary IC core by
inserting the control key, then turning the key clockwise
and pulling the key to remove the core.
2. Use a screwdriver to push inside of lever catch to the
side (see Fig. 23). Pull off the IC lever.

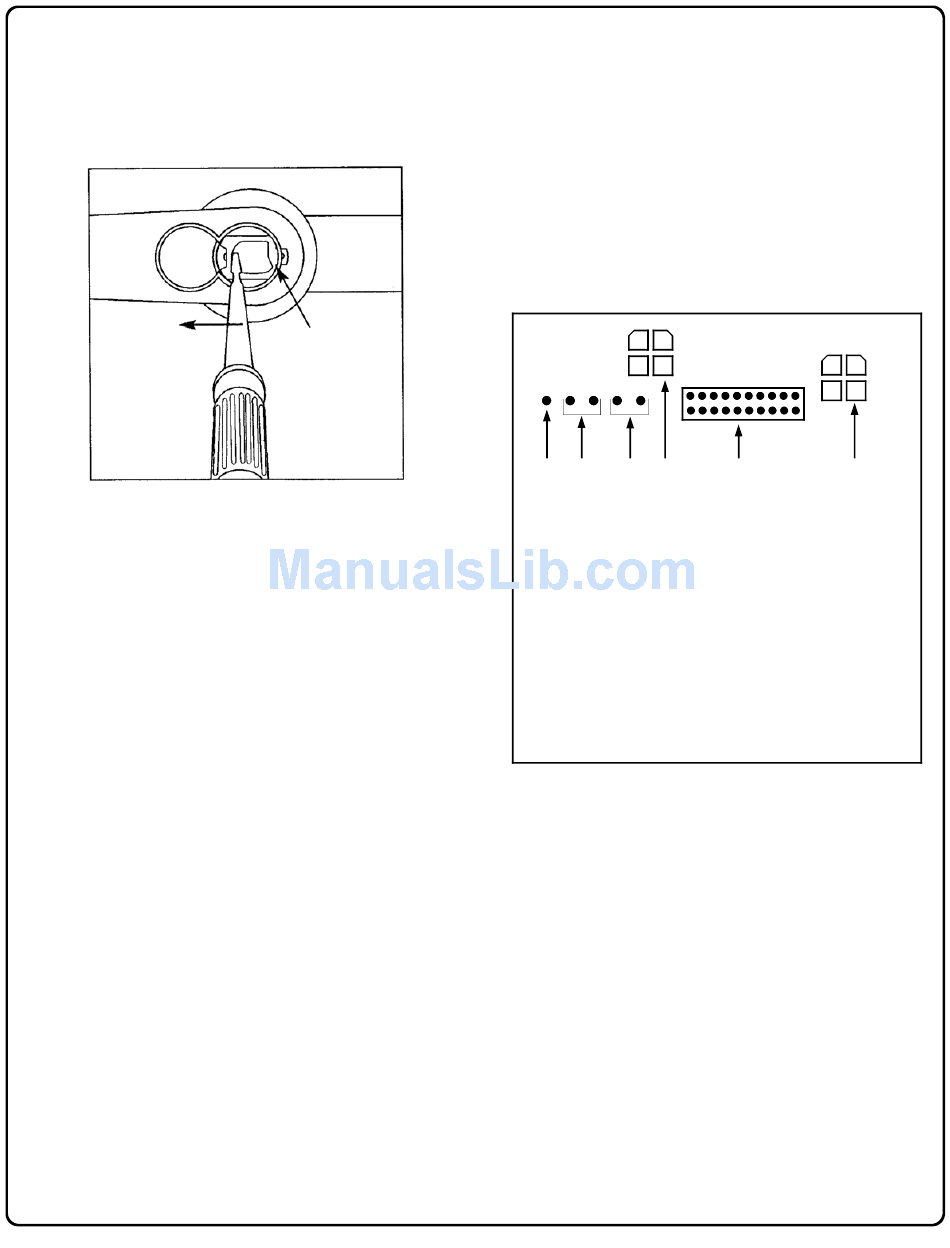

FIG. 23: REMOVING THE IC CORE LEVER
PROGRAMMING
Your lock can be programmed (and re-programmed again
and again) to suit your changing requirements. Instead of
distributing metal keys, distribute User Codes -- and delete
them from the lock software (also called firmware) when
needed. To program your DL/PDL6100 lock, see the lock
programming instructions.

TROUBLESHOOTING

Electronic Trouble:
Lock incorrectly operates in reverse.
• Solution: Reverse motor wires in connector.
Lock will not accept new codes during programming.
• Solution:
Disconnect battery connector, hold down
any button until lock resets, then reconnect and start
programming again.
Lock drains batteries quickly.
• Solution:
Check all wires for pinching or cutting.
Check for water damage. If condition persists, consult
factory.
Lock is inoperative.
• Solution: Check batteries for proper polarity and check
for cut wires.
Lock sounds "pulsing beeps" (with red flickering LED) dur-
ing lock operation.
• Solution: Low battery signal - replace batteries.
Mechanical Trouble:
Lever pulls off.
• Lever Catch not fully engaged. Lock is not centered on
door. Door too thick. (See Fig. 9).
LEVER CATCH
Unable to assemble outside lever.
• Key and tailpiece orientation are incorrect (See Fig. 21
and 22).
Latch will not fully retract.
• Lock is not properly engaged with latch or misaligned.
Lock is not centered on door (See Fig. 8).
Key binds in lock.
• Lever Catch not fully engaged. Lock is not centered on
door. Check for proper tailpiece and proper orientation
of tailpiece (See Fig. 21 and 22).

WIRE CONNECTIONS

1 2 3 4
1. Ground (no connections)
2. Battery Wires
3. Motor Wire
4. Auxiliary Power / Remote Release
Wire colors in supplied plug are as follows:
Auxiliary Power:
Red: 6-9VDC
Black: Ground
Remote Release:
Two white wires; short to activate.
5. Ribbon Cable
6. External Relay Contacts
FIG. 24: WIRE CONNECTIONS

WIRING AND POWER UP

External Power:
Red / Black wires - External 7.5 VDC Power Source
must be used for operation without batteries.
Remote Input:
White / White wires - Wire a Normally Open Contact to
wires (white and white). Momentarily close to allow per-
son to pass through door. NOTE: Remote Input is en-
abled from the factory. (See the lock programming in-
structions for more information).
Relay:
COM-Orange / NO-Green / NC-Yellow - See Function
67 in the programming instructions for programming op-
tions for the Relay.
Wiring to Disarm a Burglary Control Panel:
See the programming instructions WI1790 for additional
information.
