The plug going to the tap tempo footswitch must be TRRS and have the signal connections as shown
in the following figure.
Ground
3.3V Power
No Signal
Switch

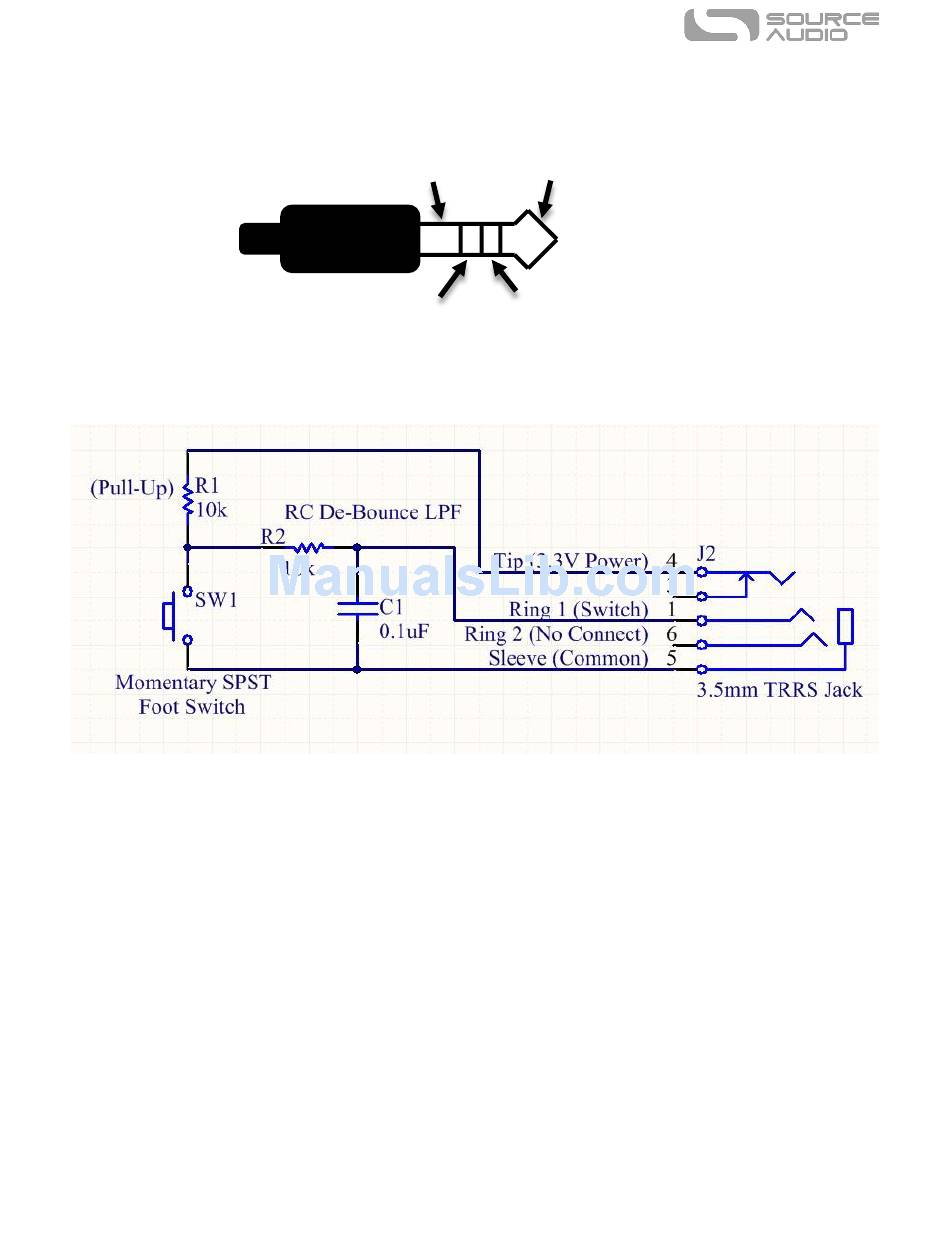

The tap tempo switch needs to be more than a simple switch; a pull-up resistor and RC passive low
pass filter are required. The circuit for the footswitch is shown in the following figure:
