12

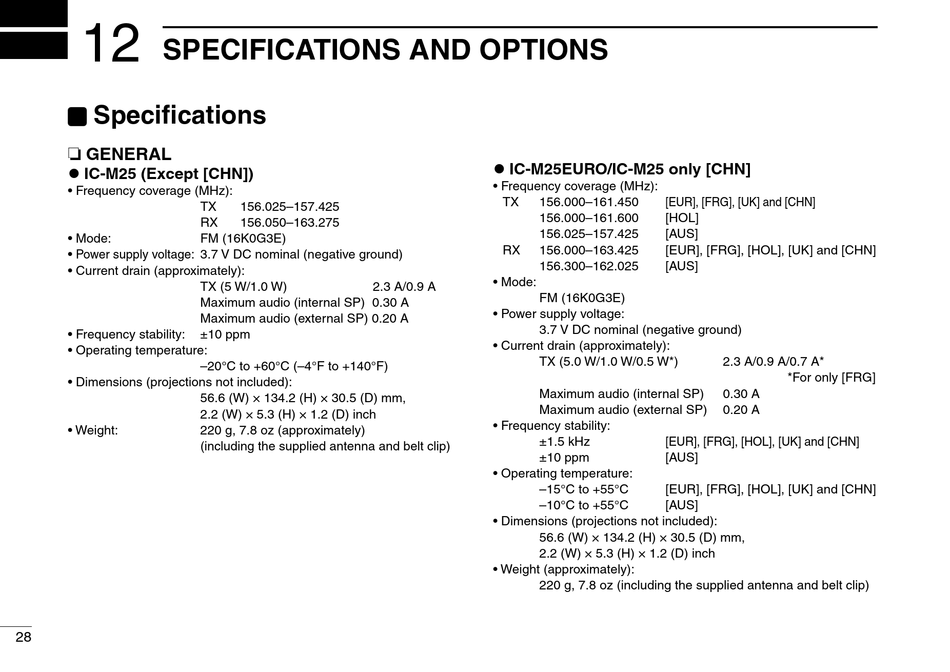

SPECIFICATIONS AND OPTIONS

Specifications

GENERAL
❏
 IC-M25 (Except [CHN])
• Frequency coverage (MHz):
• Mode:
• Power supply voltage: 3.7 V DC nominal (negative ground)
• Current drain (approximately):
• Frequency stability:
• Operating temperature:
• Dimensions (projections not included):
• Weight:
28
TX 156.025–157.425
RX 156.050–163.275
FM (16K0G3E)
TX (5 W/1.0 W) 2.3 A/0.9 A
Maximum audio (internal SP) 0.30 A
Maximum audio (external SP) 0.20 A
±10 ppm
–20°C to +60°C (–4°F to +140°F)
56.6 (W) × 134.2 (H) × 30.5 (D) mm,
2.2 (W) × 5.3 (H) × 1.2 (D) inch
220 g, 7.8 oz (approximately)
(including the supplied antenna and belt clip)
 IC-M25EURO/IC-M25 only [CHN]
• Frequency coverage (MHz):
TX 156.000–161.450 [EUR], [FRG], [UK] and [CHN]
156.000–161.600 [HOL]
156.025–157.425 [AUS]
RX 156.000–163.425 [EUR], [FRG], [HOL], [UK] and [CHN]
156.300–162.025 [AUS]
• Mode:
FM (16K0G3E)
• Power supply voltage:
3.7 V DC nominal (negative ground)
• Current drain (approximately):
TX (5.0 W/1.0 W/0.5 W*)
Maximum audio (internal SP)
Maximum audio (external SP)
• Frequency stability:
±1.5 kHz [EUR], [FRG], [HOL], [UK] and [CHN]
±10 ppm [AUS]
• Operating temperature:
–15°C to +55°C [EUR], [FRG], [HOL], [UK] and [CHN]
–10°C to +55°C [AUS]
• Dimensions (projections not included):
56.6 (W) × 134.2 (H) × 30.5 (D) mm,
2.2 (W) × 5.3 (H) × 1.2 (D) inch
• Weight (approximately):
220 g, 7.8 oz (including the supplied antenna and belt clip)
2.3 A/0.9 A/0.7 A*
*For only [FRG]
0.30 A
0.20 A
