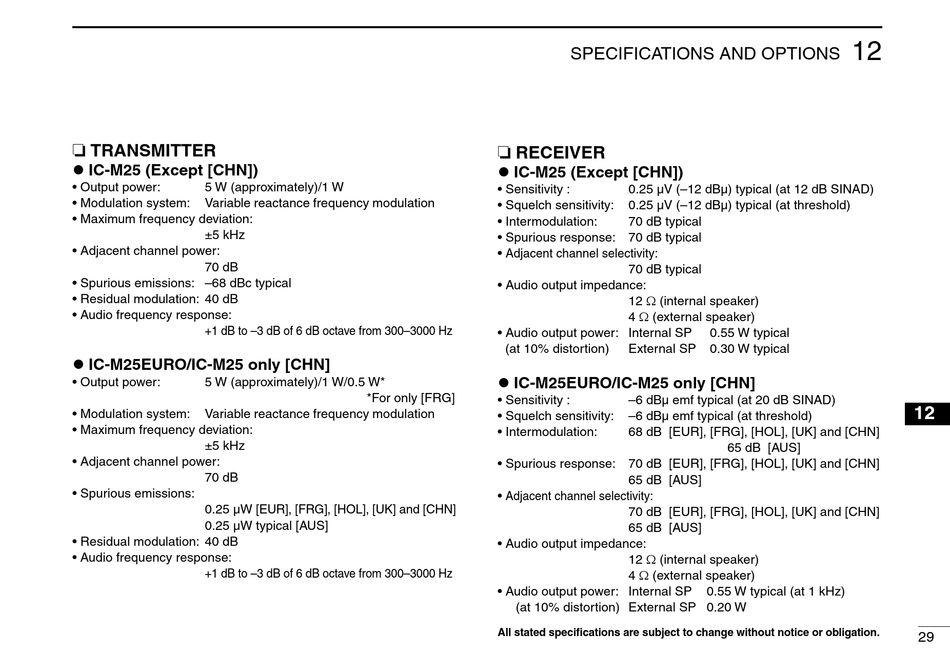

TRANSMITTER
❏
 IC-M25 (Except [CHN])
• Output power: 5 W (approximately)/1 W
• Modulation system: Variable reactance frequency modulation
• Maximum frequency deviation:
±5 kHz
• Adjacent channel power:
70 dB
• Spurious emissions: –68 dBc typical
• Residual modulation: 40 dB
• Audio frequency response:
+1 dB to –3 dB of 6 dB octave from 300–3000 Hz
 IC-M25EURO/IC-M25 only [CHN]
• Output power: 5 W (approximately)/1 W/0.5 W*
• Modulation system: Variable reactance frequency modulation
• Maximum frequency deviation:
±5 kHz
• Adjacent channel power:
70 dB
• Spurious emissions:
0.25 µW [EUR], [FRG], [HOL], [UK] and [CHN]
0.25 µW typical [AUS]
• Residual modulation: 40 dB
• Audio frequency response:
+1 dB to –3 dB of 6 dB octave from 300–3000 Hz
RECEIVER
❏
 IC-M25 (Except [CHN])
• Sensitivity :
• Squelch sensitivity:
• Intermodulation:
• Spurious response: 70 dB typical
• Adjacent channel selectivity:
• Audio output impedance:
• Audio output power: Internal SP
(at 10% distortion)
 IC-M25EURO/IC-M25 only [CHN]
*For only [FRG]
• Sensitivity :
• Squelch sensitivity:
• Intermodulation:
• Spurious response: 70 dB [EUR], [FRG], [HOL], [UK] and [CHN]
• Adjacent channel selectivity:
• Audio output impedance:
• Audio output power: Internal SP
(at 10% distortion) External SP 0.20 W
All stated specifications are subject to change without notice or obligation.
SPECIFICATIONS AND OPTIONS
0.25 µV (–12 dBµ) typical (at 12 dB SINAD)
0.25 µV (–12 dBµ) typical (at threshold)
70 dB typical
70 dB typical
12 Ω (internal speaker)
4 Ω (external speaker)
0.55 W typical
External SP 0.30 W typical
–6 dBµ emf typical (at 20 dB SINAD)
–6 dBµ emf typical (at threshold)
68 dB [EUR], [FRG], [HOL], [UK] and [CHN]
65 dB [AUS]
65 dB [AUS]
70 dB [EUR], [FRG], [HOL], [UK] and [CHN]
65 dB [AUS]
12 Ω (internal speaker)
4 Ω (external speaker)
0.55 W typical (at 1 kHz)
