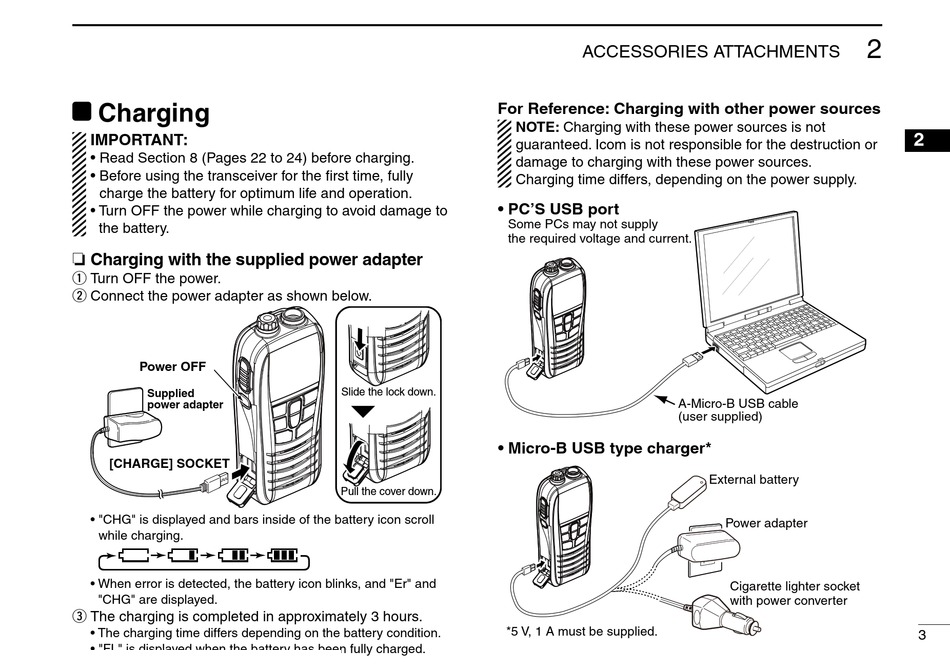

Charging

IMPORTANT:
• Read Section 8 (Pages 22 to 24) before charging.
• Before using the transceiver for the first time, fully
charge the battery for optimum life and operation.
• Turn OFF the power while charging to avoid damage to
the battery.
Charging with the supplied power adapter
❏
Turn OFF the power.
q
Connect the power adapter as shown below.
w
Power OFF
Supplied
power adapter
• PC'S USB port
Some PCs may not supply
[CHARGE] SOCKET
the required voltage and current.
• "CHG" is displayed and bars inside of the battery icon scroll
while charging.
• When error is detected, the battery icon blinks, and "Er" and
"CHG" are displayed.
The charging is completed in approximately 3 hours.
e
• The charging time differs depending on the battery condition.
• "FL" is displayed when the battery has been fully charged.
Slide the lock down.
Pull the cover down.
A-Micro-B USB cable
(user supplied)

ACCESSORIES ATTACHMENTS

For Reference: Charging with other power sources
NOTE: Charging with these power sources is not
guaranteed. Icom is not responsible for the destruction or
damage to charging with these power sources.
Charging time differs, depending on the power supply.
• PC'S USB port
Some PCs may not supply
the required voltage and current.
• Micro-B USB type charger*
*5 V, 1 A must be supplied.
A-Micro-B USB cable
(user supplied)
External battery
Power adapter
Cigarette lighter socket
with power converter
