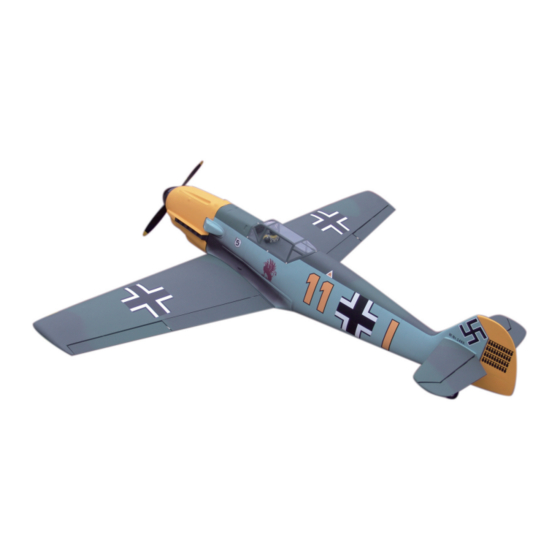

ME - 109
Specification:
Length
:1600 mm(63")
Wing Span
:1841 mm(72.5")
Wing Area
:55.0 sq. dm
5.92 sq. ft
Wing Loading :85.8 g/sq. dm
35.1 oz/sq. ft
Flying Weight :5.9 kg(13 lbs)
Radio
:6ch&8 servos
Engine
:108 2-cycle
120 4-cycle
SAFETY PRECAUTIONS
INSTRUCTION MANUAL
This R/C airplane is not a toy!
(The people under 18 years old is forbidden from flying this model)
First-time builders should seek advice from people having building
experience.If misused or abused,it can cause serious bodily injury
and damage to property.
Fly only in open areas and preferably at a dedicated R/C flying site.
We suggest having a qualified instructor carefully inspect your
airplane before its first flight.Please carefully read and follow all
instructions included with this airplane,your radio control system
and any other components purchased separately.
Advertisement
Related Manuals for Troy Built Models ME - 109
Summary of Contents for Troy Built Models ME - 109
- Page 1 ME - 109 Specification: Length :1600 mm(63") Wing Span :1841 mm(72.5") Wing Area :55.0 sq. dm 5.92 sq. ft Wing Loading :85.8 g/sq. dm 35.1 oz/sq. ft Flying Weight :5.9 kg(13 lbs) INSTRUCTION MANUAL Radio :6ch&8 servos Engine :108 2-cycle...
- Page 2 6 channel radio for aiplane is highly recommended for this model. Choose servos with large torque to achieve great performanoe. 4-cycle .120 107mm Spinner 15″X8 Warning Remove the covering with proper pressure to cut through only the covering itself.Otherwise, cutting down into the balsa structure may weaken the model part and cause accident.
- Page 3 Epoxy the servo supporter and install the servo. Accessory list for this page. Clevis Servo tray Retainer Rod (2x300mm) Wooden Block TP Screw (2.3x12mm) Screw (3x35mm) 1.5mm Servo tray(68.5x56.5x2mm) Wooden Block(20x20x8mm) Pin hinge(24x24mm) Washer(3x15mm) Lock Nut (3mm ) Washer(3x15mm) Aileron.Apply instant type CA glue to both Install the nylon control horn and sides of each hinge.
- Page 4 Accessory list for this page. Install the servo. Two wheel retract system Clevis Retainer Make sure to assemble retracts as instructed below. Rod (2x300mm) Rod (2x300mm) TP Screw (2.3x12mm) Screw (3x35mm) Servo tray(68.5x56.5x2mm) Wooden Block(20x20x8mm) Pin hinge(24x24mm) Washer(3x15mm) 3-way pressure inlet Lock Nut (3mm ) Retainer Washer(3x15mm)
- Page 5 Cut away the surplus parts of plastic cover Accessory list for this page. Adjustment. Adjustment. carefully along the shaded line. Clevis Retainer Rod (2x300mm) TP Screw (2.3x12mm) Side View Screw (3x35mm) Top view ELEVATOR Servo tray(68.5x56.5x2mm) RUDDER Wooden Block(20x20x8mm) 20mm Pin hinge(24x24mm) 25mm 20mm...
- Page 6 Epoxy the heat-sink cover to the Accessory list for this page. Assemble are retracts. Accessory list for this page. main wing and flap steadily. Tail strut TP Screw (3x20mm) Landing gear PVC part Retracts strut PVC part Wheel well 1.5mm Wheel (100mm) Canopy Screw (3x10mm)
- Page 7 Accessory list for this page. Assemble the servos and switch in the fuselage. Epoxy two main wing panels together. Accessory list for this page. Air inlet Screw (2x25mm) Main wing joiner Throttle servo Aluminum Washer (2mm) Ring Rod (2X300mm) Nut (2mm) Wheel (100mm) Rudder servo Linkage Stopper...
- Page 8 Accessory list for this page. Epoxy the dowel on the wing. Mount the fuel tank into the fuselage. Accessory list for this page. 40mm 40mm Screw (4x35mm) Screw (4x25mm) Washer(4x8mm) Wood dowel (6x50mm) Spring Washer (4mm) Screw (6x40mm) Nut (4mm) Blind Nut (6mm) Linkage Stopper TP Screw (2.3x8mm)
- Page 9 According to the rib template drill holes to appropriate Accessory list for this page. Assemble the engine. Accessory list for this page. position in the fuselage and stabilizers. Screw (4x35mm) Pin hinge(24x24mm) Screw (4x35mm) Washer (4x8mm) Rib template (3mm ply) Blind nut (4mm) Washer (4x8mm) Wood dowel (4x30mm)
- Page 10 Drill a hole to appropriate position in the Accessory list for this page. Accessory list for this page. Epoxy rudder steadily in position. vertical fin as illustration. Pin hinge Elevator tail Clevis Pin hinge Retainer Metal arm 16mm Retainer 110mm Screw (3x35mm) Nose arm(3mm) Washer(3x15mm)
