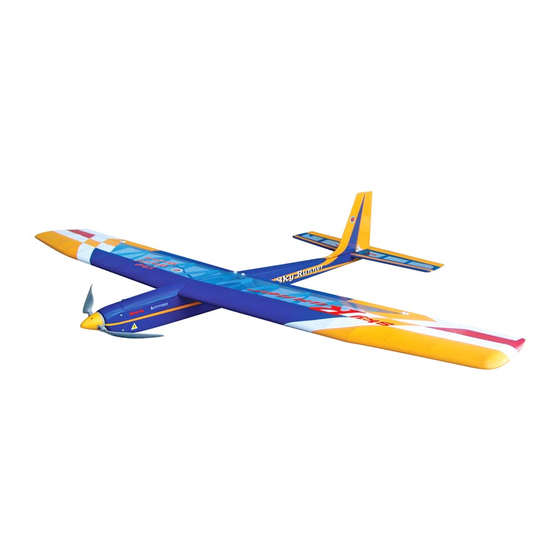

THE WORLD MODELS Sky Runner Instruction Manual

Hide thumbs Also See for Sky Runner:

Advertisement

Quick Links

Download this manual See also: Instruction Manual

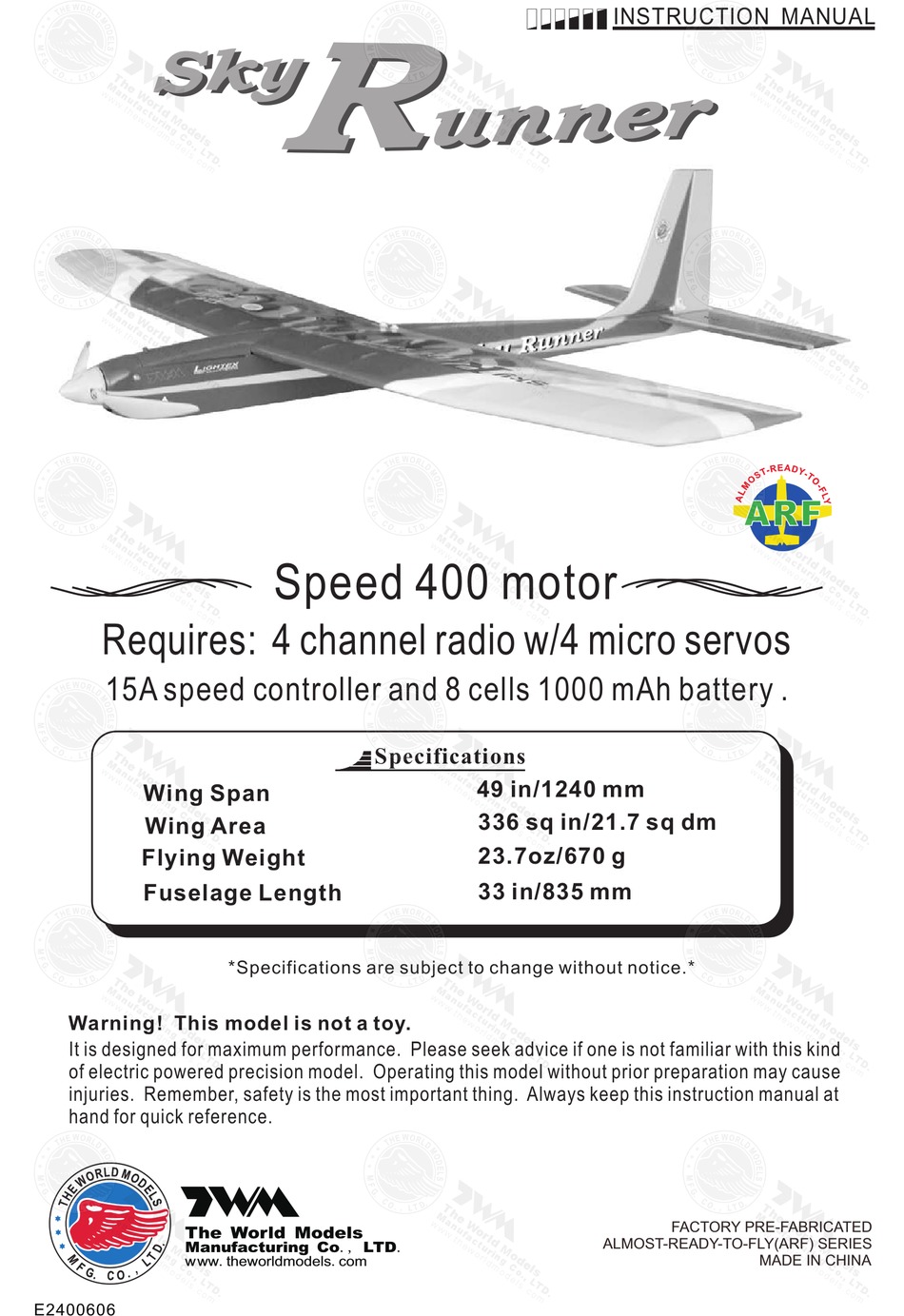

Requires: 4 channel radio w/4 micro servos
15A speed controller and 8 cells 1000 mAh battery .
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
E2400606
Speed 400 motor
Specifications
*Specifications are subject to change without notice.*
INSTRUCTION MANUAL
49 in/1240 mm
336 sq in/21
.7
sq dm
23 oz/6
.7
70
g
33 in/835 mm
ALMOST-READY-TO-FLY(ARF) SERIES
FACTORY PRE-FABRICATED
MADE IN CHINA

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sky Runner and is the answer not in the manual?

Questions and answers

Related Manuals for THE WORLD MODELS Sky Runner

Summary of Contents for THE WORLD MODELS Sky Runner

  • Page 1 Operating this model without prior preparation may cause injuries. Remember, safety is the most important thing. Always keep this instruction manual at hand for quick reference. FACTORY PRE-FABRICATED The World Models ALMOST-READY-TO-FLY(ARF) SERIES Manufacturing Co., LTD. MADE IN CHINA www.theworldmodels.com...
  • Page 2 I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 -9 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts.
  • Page 3 Parts list 1. MAIN WING -- 1 pc. 8. FUEL TUBE d2xD4x4mm--2 pcs WING JOINER 4.5x109mm--1 pc. STRAPER--2 pcs SPONGE(For Radio Equipment)10x50x150mm--1 pc. 2. SCREW PM2x12mm--4 pcs DOUBLE SIDED TAPE 30x35mm 1 pc STRAPER--2 pcs BATTERY TIE 1 pc FUEL TUBE d2xD4x4mm--4 pcs CLEVIS--2 pcs 9.
  • Page 4 Apply instant type CA glue to both sides of each hinge. Main Wing Wing Joiner Ø4.5 x 109mm Aileron Servo Lead Completed Aileron Servos Ø1mm pilot holes for World straper Screw PM2x12mm Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces.
  • Page 5 Stabilizer & Elevator Te m p o r a r y i n s t a l l t h e m a i n w i n g , a d j u s t (Stabilizer) l e v e l i n g o f t h e s t a b i l i z e r t o m a k e i t a s (Main Wing) p a r a l l e l t o t h e m a i n w i n g a s p o s s i b l e .
  • Page 6 Elevator Pushrod Ø1mm pilot holes for World Models tri-horn are Screw PM2 x 8mm pre-drilled. Please look for pin-hole marks at under side of control surfaces. PM2 x 8mm Clevis Pushrod Fuel Tube d2xD4x4mm 1.4 x 500mm PM2 x 8mm Horn Pushrod 1.4 x 500mm...
  • Page 7 Motor / Cowling Setting Screw M2.6x7mm Screw PM2 x 12mm Screw PWA2 x 8mm Screw PA2.6 x 10mm Washer d2 x D5mm Set Screw M2.6 x 7mm TO ALLOW FOR M2 Nut d2 x D5mm BACKLASH OF MATCHING GEAR, PUT A PIECE OF THIN PAPER BETWEEN THE GEARS AND...
  • Page 8 Radio Equipment Install and arrange the servo as shown in the diagram. Elevator Pushrod Elevator Servo Battery Tie Speed 400 Motor Straper Battery Fuel Tube Ø4x4mm Receiver Sponge Double-Sided Tape 15A Speed Controller Rudder Pushrod Rudder Servo Main Wing Nylon Bolt M2.5x16mm Nylon Washer d2.6xD9mm d2.6xD9mm...
  • Page 9 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A=A' B=B' C=C' E2400606...
  • Page 10 Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your Rudder personal preference. 25mm 25mm Elevator Aileron The ideal C.G. position is 52mm (2.0 in.) behind C.G.
  • Page 11 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to Air Borne Models, 2403, Research Drive, Livermore, CA 94550.U. S. A. 1.Name: 2.Address: 3.Phone #:...
  • Page 12 The World Models Manufacturing Co., LTD. www .thew orldm odels .com E2400606...
