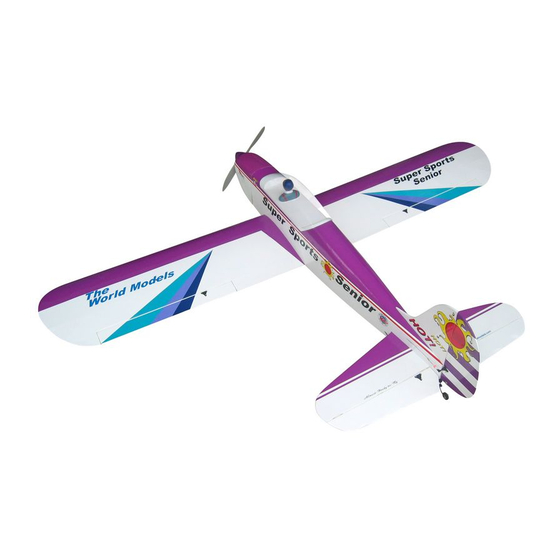

Super Sports Senior- 90
0.91 cubic inch displacement 4 - stroke (glow)
Radio required: 4 channel
Wing Span
Wing Area
Flying Length
Fuselage Length
Warning ! This model is not a toy.
It is designed for precision model. Please seek advice if one familiar this kind of
engine powered precision model. Operating this model without prior preparation
may cause injuries. Remember, safety is the most important thing. Always keep
this instruction manual at hand for quick reference.
-
Specifications
* Specifications are subject to change without notice. *
radio w
81 in / 2050mm
1020 sq in / 65.8 sq dm
9 lbs / 4100 g
61 in / 1560mm
ALMOST-READY-TO-FLY (ARF) SERIES
INSTRUCTION MANUAL
5 servos
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for THE WORLD MODELS Super Sports Senior- 90
Summary of Contents for THE WORLD MODELS Super Sports Senior- 90
- Page 1 INSTRUCTION MANUAL Super Sports Senior- 90 0.91 cubic inch displacement 4 - stroke (glow) Radio required: 4 channel radio w 5 servos Specifications Wing Span 81 in / 2050mm 1020 sq in / 65.8 sq dm Wing Area 9 lbs / 4100 g...
-
Page 2: Before You Begin
Super Sports Senior - 90 I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 -10 SAFETY PRECAUTIONS P. 10 BEFORE YOU BEGIN Apply instant glue Apply epoxy glue. (C.A.glue, super glue.) Assemble left and right Ensure smooth non-binding sides the same way. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair 12. COWLING -- 1 set TRANSPARENT DUMMY COWLING -- 1 set 2. SCREW PM2 X 20mm -- 2 pcs PWA2.6 X 12mm -- 5 pcs SCREW PM2 X 25mm -- 4 pcs SILICON GROMMET d1.5 X D6.5mm -- 5 pcs PUSHER ROD Ø1.8 x 106mm w/ Threads (For Aileron) -- 2 pcs SPINNER Ø70mm -- 1 set... -
Page 4: Aileron Servo
Main Wing Pre-glued Aileron Servo Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PM2 x 20mm Screw Straper PM2 x 25mm Screw Pusher Rod 1.8 x 106mm PM2 x 20mm PM2 x 25mm Fuel Tube 6 x 5mm... - Page 5 Main Landing Gear PA 3 x 12mm Screw 3mm Set Screw Completed 3mm Set Screw 5.1mm Collar 5.1mm Collar PA 3 x 12mm Wheel 90mm Main Wing Peel off shaded portion covering film for lead to another aileron servo. Wing Tuber Ø18 x 701mm Peel off shaded portion covering film...
-
Page 6: Vertical Fin
Vertical Fin Rudder A = A' Pre-glued Tail Landing Gear PA 3 x 12mm Screw 3mm Set Screw 2.1mm Wheel Collar PM2 x 14mm Screw PM2 x 14mm Screw d2 x D5mm Washer d2 x D5mm Washer Washer 2mm M2 Nut 3mm Set Screw PA3 x 12mm PM2 x 14mm... -
Page 7: Engine Mount
Engine Mount M6 x 30mm Socket Head Screw d6 x D15mm Washer Engine Mount Pl5911120 d6 x D15mm Apply thread locker to screws. M6 x 30mm Blind nuts are off-centered to keep the spinner at the fuselage axis. Engine M4 Nylon M4x35mm SOCKET HEAD SCREW Insert Lock Nut KM3x20mm Screw... -
Page 8: Rudder Pullwire
First insert the grommet to the cowling then apply screw. Cowling PWA2.6 x 12mm Screw Silicon Grommet d1.5 x D6.5mm Silicon Grommet d1.5 x 6.5mm Spinner PWA2.6 x 12mm Rudder Pullwire Ø 1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at side of control surfaces. -
Page 9: Radio Equipment
Servo Set LINKAGE CONNECTOR 3 x 3mm Set Screw Linkage Connector Included with the Radio Set. Throttle Rod 2mm Nut 2mm Washer Throttle Servo. Please refer to attached sheet for linkage connector installation. Radio Equipment Install and arrange the servo as shown in the diagram. Copper Tube Press down the center 1/3 portion... - Page 10 Canopy First insert the grommet to the canopy then apply screw. PWA2.3 x 8mm Screw Pilot Silicon Grommet d1.5 x D6.5mm Silicon Grommet d1.5 x 6.5mm PWA2.3 x 8mm Main Wing PM4 x 35mm PM4 x 35mm Screw d4 x D15mm d4 x D15 Washer Bottom View Adjust the wing and fuselage configuration...
-
Page 11: Control Throws
Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your Elevator personal preference. 20mm 20mm Rudder 44mm 44mm Aileron The ideal C.G. Position is 108mm (4.25 in) behind the leading edge measured at where the wing meets the fuselage. - Page 12 The World Models Manufacturing Co., LTD. www .thew orldm odels .com A119R0610...
